VehiclesElement RC Enduro SE Sendero

Element RC Enduro SE Sendero

1/10 scale · scale crawler · 40107

Final drive: 45.14:1

Open in Top Speedverified

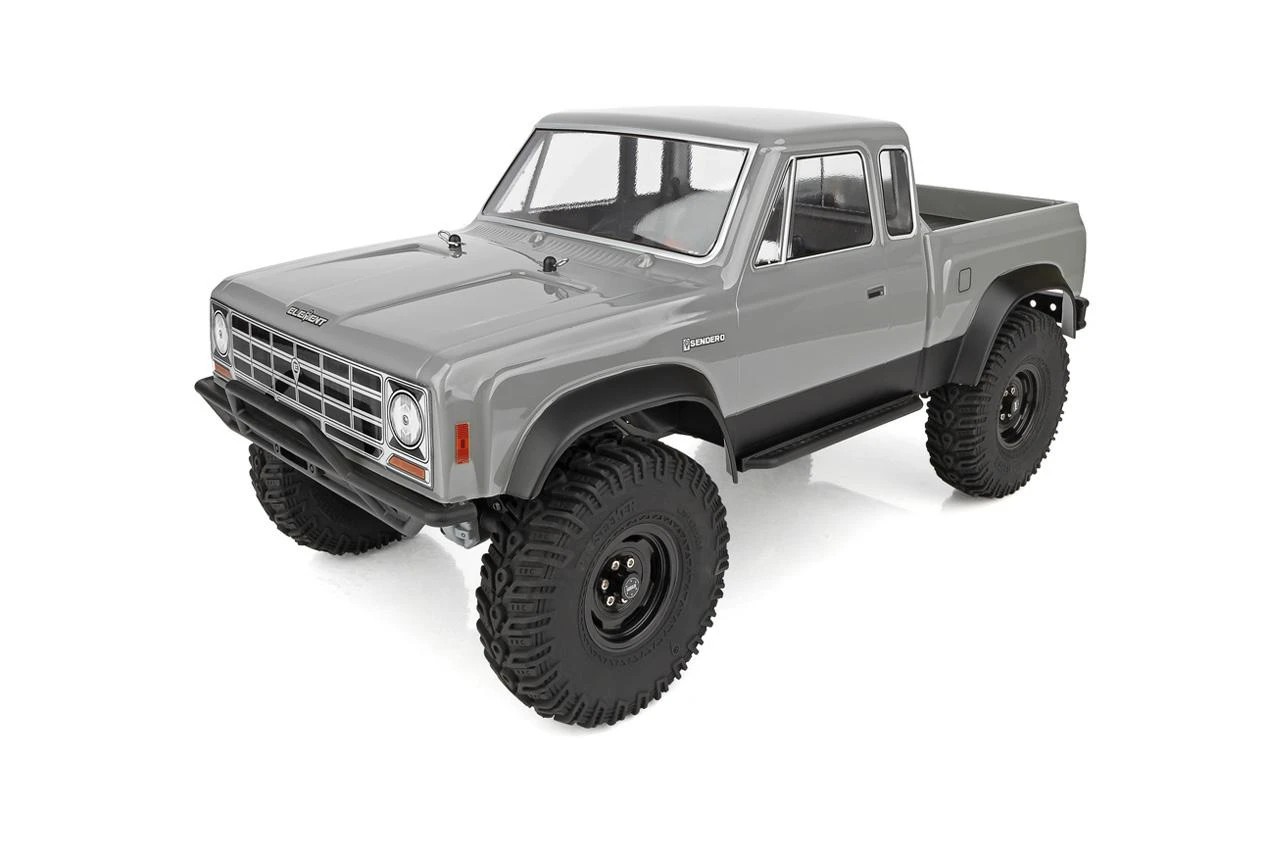

Element RC Enduro SE Sendero — Photo: Element RC

Specifications

Last modified Sep 25, 2026

Spec	Value	Basis
Drivetrain
Pinion	18TStock	Stock
Spur	45TStock	Stock
Transmission & axle	18.06:1Derived	Derived
Final drive	45.14:1Stock	Stock
Wheels & tires
Tire diameter	Not published
Wheel hex	12 mmStock	Stock
Power
Motor	Not applicable
Motor shaft	Not published
Battery	Up to 3SLiPoStock	Stock
Stock motor	Reedy Power 5-slot 16-turn brushed crawler motorStock	Stock
Stock ESC	Reedy Power SC480XStock	Stock
Battery connector	T-PlugStock	Stock
Performance
Theoretical top speed	Not applicable
Chassis
Wheelbase	325 mm12.8 inStock	Stock
Shock oil, front	30 wtStock	Stock
Shock oil, rear	30 wtStock	Stock
Vehicle
Part number	40107
Scale	1/10
Class	Scale crawler

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.

Gearing parts

Pinion and spur parts for the Element RC Enduro SE Sendero: fitted, and optional gearing supplied in the box
Component	Teeth	Pitch	Bore	Part number
Fitted at the factory
Pinion	18T	48P	3.175 mm	1336 (opens in a new tab)Team Associated
Spur	45T	Not published	Not applicable	42316 (opens in a new tab)

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.

How these numbers were settled

Element's product page prints an internal gear ratio of 12:1, and the manual's Stealth XF transmission build gives the tooth counts behind it: an 18T pinion (part 1336) drives a 45T/27T running gear, its 27T side turns a 50T slipper spur, and a 20T top shaft drives the 52T front and rear outputs through a 28T idler, which works out to 12.04:1.

The 45T running gear is the gear the pinion meshes with, so it is shown here as the spur.
Both axles use a 30T ring gear on an 8T pinion (3.75:1), so the transmission and axle ratio after the 45T gear is 18.06 and the total from motor to wheel is 45.14:1.
The transmission ships set to 1:1 front to rear; optional Factory Team gears overdrive the front 5.7% or 11.83%.
The tire diameter is left blank because Associated prints two sizes: 4.75 in on the product page, the press release and the manual, and 4.70 in on the PinSeeker tire's own part (42329).
The motor is a Reedy 16-turn 5-slot brushed crawler motor, so KV does not apply, and the Reedy SC480X ESC is rated for 2S to 3S LiPo.
The LiPo Combo (40107C) is the same truck with a battery and charger.

Documents

ManualEnduro SE Sendero RTR manual (Element RC PDF) (opens in a new tab)Stealth XF build p. 5-6, axles p. 8-9
Parts listEnduro SE Sendero parts list, press release (Associated PDF) (opens in a new tab)

Sources

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
