VehiclesElement RC Enduro Trail Truck Builder's Kit 3
Element RC Enduro Trail Truck Builder's Kit 3
1/10 scale · crawler · 40135

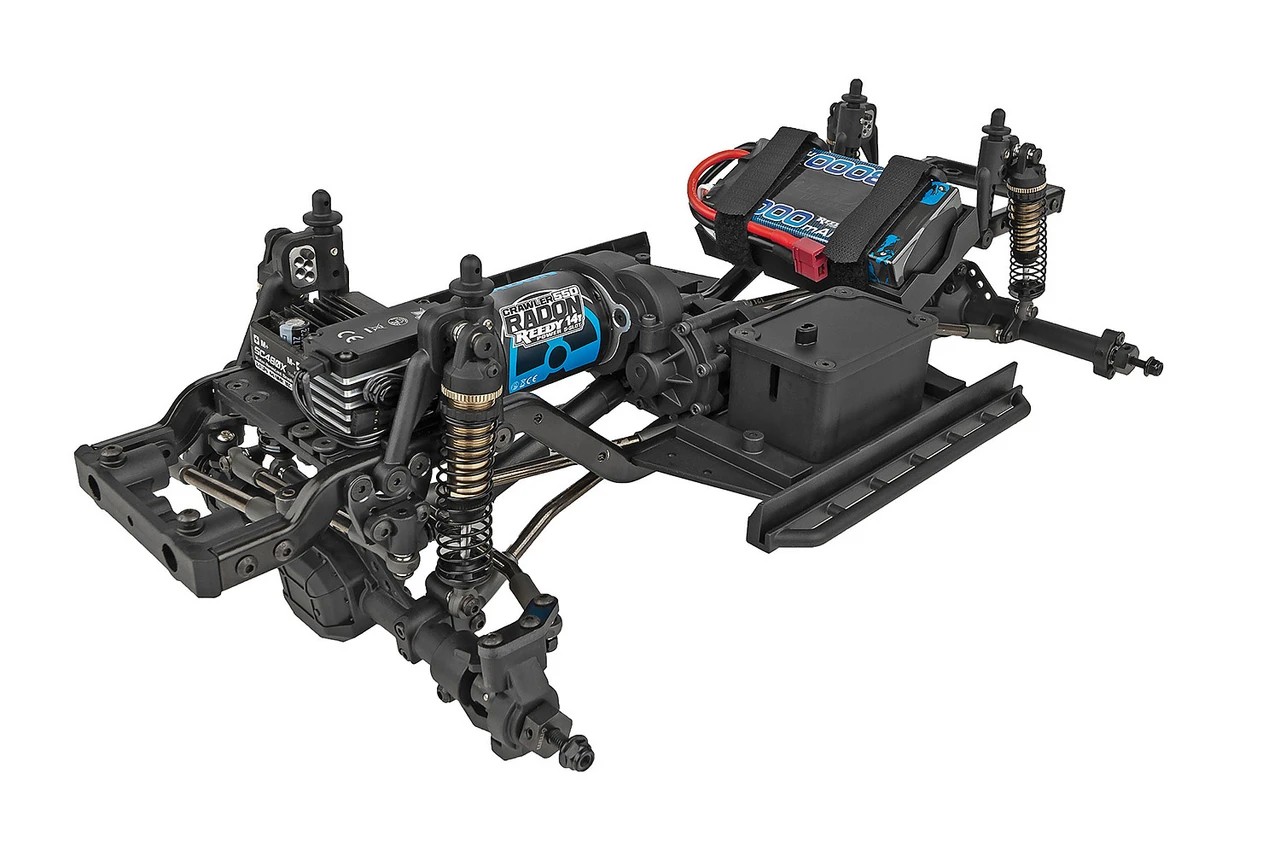

Builder's Kit 3 is Element's 1/10 four-wheel-drive crawler chassis kit with the Stealth XF gearbox, built by you and sold without motor, pinion, electronics, body, wheels or tires.
The XF layout moves the motor forward: your pinion meshes with a 45T gear at the front of the gearbox, and the front axle is overdriven. The chassis is 462 mm long, runs 12 mm hexes and comes with 30 wt shock oil. Links for two wheelbase lengths come in the box, so decide on the body before you set the wheelbase.
Weigh each corner to balance the chassis, then work out reduction and axle overdrive.
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Vehicle | ||
| Class | Crawler | |
| Drive | 4WD | |
| Power | Motor not included | |
| Build | Kit | |
| Scale | 1/10 | |
| Part number | 40135 | |
| Drivetrain | ||
| Pinion | Not applicable | |
| Spur | 45TStock | Stock |
| Transmission & axle | Not applicable | |
| Final drive | Not applicable | |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Wheel hex | 12 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Chassis | ||
| Length | 462 mm18.2 inStock | Stock |
| Width | 236 mm9.3 inStock | Stock |
| Shock oil, front | 30 wtStock | Stock |
| Shock oil, rear | 30 wtStock | Stock |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Spur | 45T | Not published | Not applicable | 42316 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The Stealth XF gearbox moves the motor forward: the pinion meshes with a 45T/27T running gear (#42316), shown here as the spur, and its 27T side drives a 50T slipper spur.
- Element prints 'Internal Gear Ratio: varies' and ships the gearbox with the 5.7% front overdrive fitted, so the transmission and axle ratio and the final drive are left blank.
- The manual lists 28T and 25T idler gears, 52T and 55T drive gears and 30T/8T ring and pinion gears, and the press release gives the axle ratio as 3.75:1; the top shaft's tooth count is not given, so the front and rear totals are not worked out here.
- The kit ships without motor, pinion, ESC, servo, receiver, body, wheels or tires; Element lists a 540-size motor with a 48-pitch pinion, wheels with 12 mm hex mounting and tires among the items needed to complete it.
- Element's page prints a 313 mm wheelbase and the press release 313 to 325 mm, since links for both lengths are in the box, so the wheelbase is left blank.
Documents
- ManualEnduro Builder's Kit 3 manual (Element RC PDF) (opens in a new tab)Stealth XF build p. 5-6, axles p. 9-10
Sources
- Builders_Kit_3portal.associatedelectrics.com (opens in a new tab)
- specsportal.associatedelectrics.com (opens in a new tab)
- Manual (PDF)img2c.associatedelectrics.com (opens in a new tab)
- Manual (PDF)img2c.associatedelectrics.com (opens in a new tab)
- 42316portal.associatedelectrics.com (opens in a new tab)
- 5422portal.associatedelectrics.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
