Element RC Enduro Trail Truck Builder's Kit 2
1/10 scale · crawler · 40114

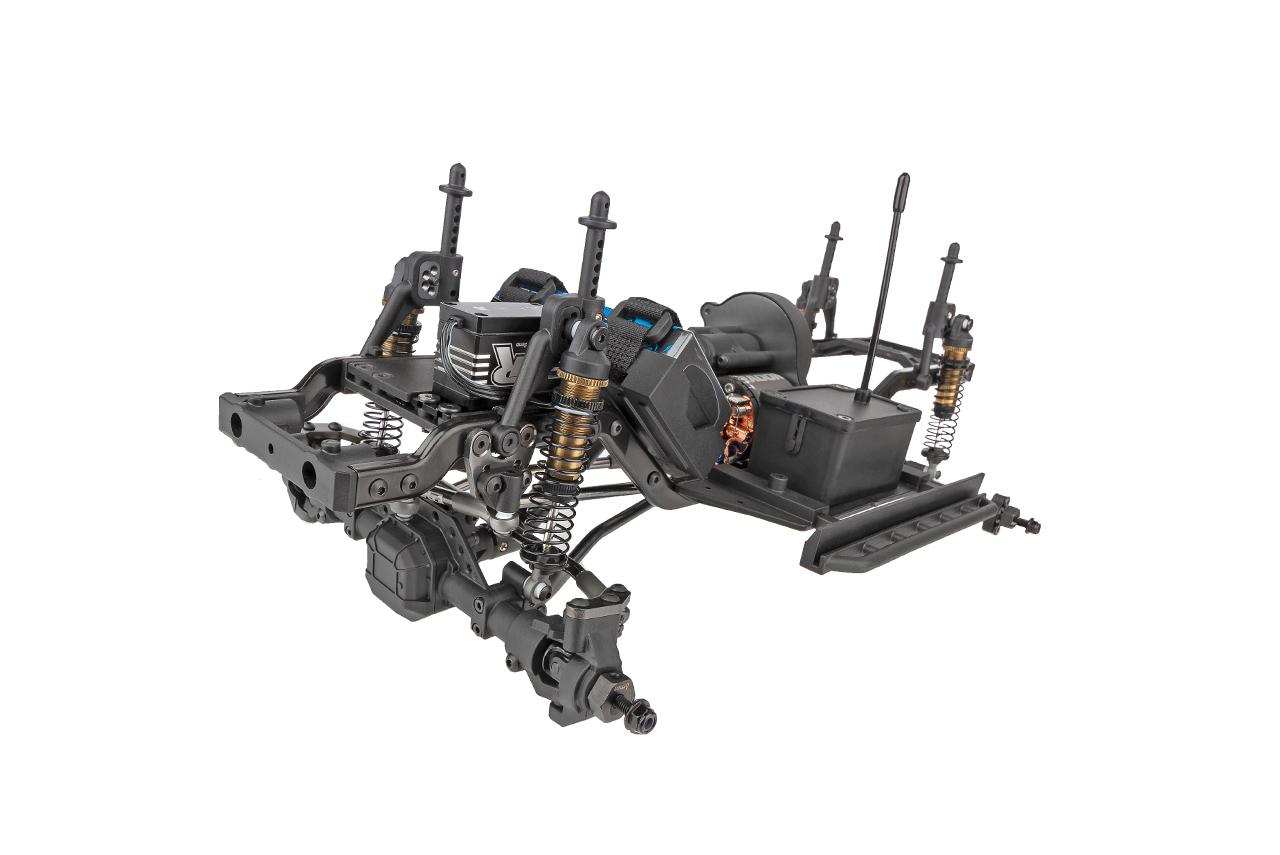

The second Enduro Trail Truck Builder's Kit is a 1/10 four-wheel-drive crawler chassis kit from Element, built by you and sold without motor, pinion, electronics, body, wheels or tires.
Like the first kit it pairs an 87T 48P spur with the Stealth X gearbox, and both overdrive gear sets come in the box, so you choose how much faster the front axle turns. The chassis is 462 mm long on a 313 mm wheelbase, with 12 mm hexes and 30 wt shock oil. Choose a body that fits the 313 mm wheelbase before you settle on wheels and tires.
Weigh each corner to balance the chassis, then work out reduction and axle overdrive.
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Vehicle | ||
| Class | Crawler | |
| Drive | 4WD | |
| Power | Motor not included | |
| Build | Kit | |
| Scale | 1/10 | |
| Part number | 40114 | |
| Drivetrain | ||
| Pinion | Not applicable | |
| Spur | 87TStock | Stock |
| Transmission & axle | Not applicable | |
| Final drive | Not applicable | |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Wheel hex | 12 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Chassis | ||
| Length | 462 mm18.2 inStock | Stock |
| Width | 236 mm9.3 inStock | Stock |
| Wheelbase | 313 mm12.3 inStock | Stock |
| Shock oil, front | 30 wtStock | Stock |
| Shock oil, rear | 30 wtStock | Stock |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Spur | 87T | 48P | Not applicable | 9654 (opens in a new tab)Team Associated |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The kit ships without motor, pinion, ESC, servo, receiver, body, wheels or tires; Element lists a 540-size motor with a 48-pitch pinion, wheels with 12 mm hex mounting and tires among the items needed to complete it.
- Element's spec table prints 'Internal Gear Ratio: varies' because the Stealth X gearbox turns the front and rear axles at different speeds, so the transmission and axle ratio and the final drive are left blank.
- The manual names an 87T 48P spur (#9654), a fixed 20T-28T-52T front train with the 27T-53T rear pair fitted (5.7% front overdrive), and 30T/8T ring and pinion gears in both axles, and Element's page says both the 5.7% and 11.83% overdrive gears are in the box.
- Those work out to about 9.75:1 after the spur at the front and 10.31:1 at the rear; the included 26T-54T rear pair (11.83% overdrive) gives about 10.90:1 at the rear.
Documents
- ManualEnduro Builder's Kit 2 manual (Element RC PDF) (opens in a new tab)Gearbox p. 7
Sources
- Builders_Kit_2portal.associatedelectrics.com (opens in a new tab)
- specsportal.associatedelectrics.com (opens in a new tab)
- Manual (PDF)img2c.associatedelectrics.com (opens in a new tab)
- Manual (PDF)img2c.associatedelectrics.com (opens in a new tab)
- 9654portal.associatedelectrics.com (opens in a new tab)
- 5422portal.associatedelectrics.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
