VehiclesElement RC Enduro Gatekeeper Builder's Kit

Element RC Enduro Gatekeeper Builder's Kit

Name: Element RC Enduro Gatekeeper Builder's Kit
Brand: Element RC
SKU: 40110

1/10 scale · crawler · 40110

Element's Enduro Gatekeeper Builder's Kit is a 1/10 four-wheel-drive crawler kit, built by you and sold without motor, pinion, electronics, wheels or tires.

It comes with an 87T 48P spur and the Stealth X gearbox, which overdrives the front axle, so your overall ratio depends on the pinion and motor you add. The axles take 12 mm hex wheels, and the shocks come filled with 30 wt oil. Start with a 48P pinion that suits your motor, then pick wheels and tires, since tire size changes how the gearing feels on the trail.

Crawler

Weight distribution Crawler gearingsourced

Weigh each corner to balance the chassis, then work out reduction and axle overdrive.

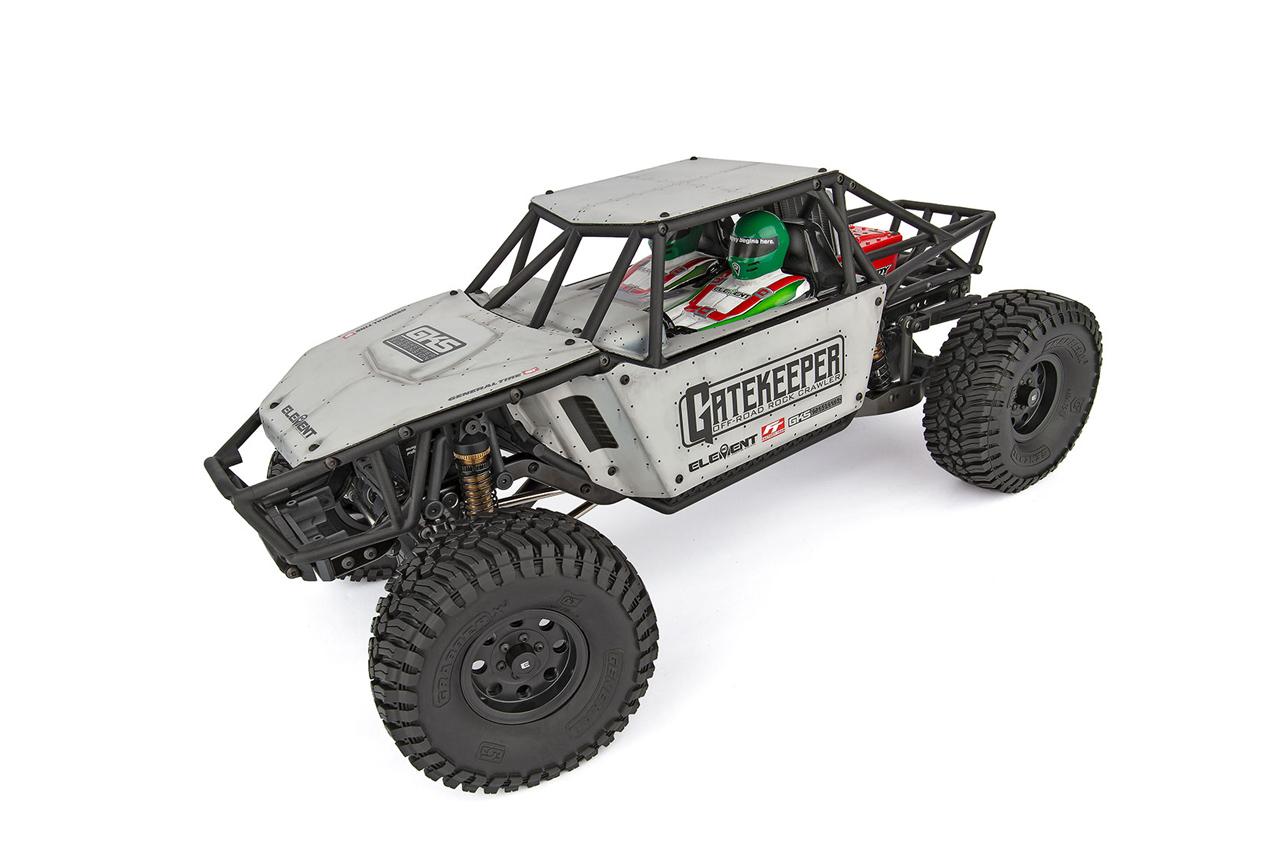

Element RC Enduro Gatekeeper Builder's Kit — Photo: Element RC

Specifications

Last modified Sep 27, 2026

Spec	Value	Basis
Vehicle
Class	Crawler
Drive	4WD
Power	Motor not included
Build	Kit
Scale	1/10
Part number	40110
Drivetrain
Pinion	Not applicable
Spur	87TStock	Stock
Transmission & axle	Not applicable
Final drive	Not applicable
Wheels & tires
Tire diameter	Not applicable
Wheel hex	12 mmStock	Stock
Power
Motor	Not applicable
Motor shaft	Not applicable
Battery	Not applicable
Performance
Theoretical top speed	Not applicable
Chassis
Shock oil, front	30 wtStock	Stock
Shock oil, rear	30 wtStock	Stock

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

Gearing parts

Pinion and spur parts for the Element RC Enduro Gatekeeper Builder's Kit: fitted, and optional gearing supplied in the box
Component	Teeth	Pitch	Bore	Part number
Fitted at the factory
Spur	87T	48P	Not applicable	9654 (opens in a new tab)Team Associated

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.

How these numbers were settled

The kit ships without motor, pinion, ESC, servo, receiver, wheels or tires; Element's page lists a 540-size motor with a 48-pitch pinion, wheels with 12 mm hex mounting and tires among the items needed to complete it.

Element's spec table prints 'Internal Gear Ratio: varies' because the Stealth X gearbox turns the front and rear axles at different speeds, so the transmission and axle ratio and the final drive are left blank.
The manual names an 87T 48P spur (#9654), a fixed 20T-28T-52T front train with the 27T-53T rear pair fitted (5.7% front overdrive), and 30T/8T ring and pinion gears in both axles.
Those work out to about 9.75:1 after the spur at the front and 10.31:1 at the rear; the included 26T-54T rear pair (11.83% overdrive) gives about 10.90:1 at the rear.
The manual's gearbox step shows an 18T pinion (#1336) marked 'Not Included'.
Element's comparison chart lists 1.9 x 4.65 in tires for this kit, but the product page lists wheels and tires as not included, so no tire size is shown here.

Documents

ManualEnduro Gatekeeper Builder's Kit manual (Element RC PDF) (opens in a new tab)Gearbox p. 7, axles p. 8

Sources

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
