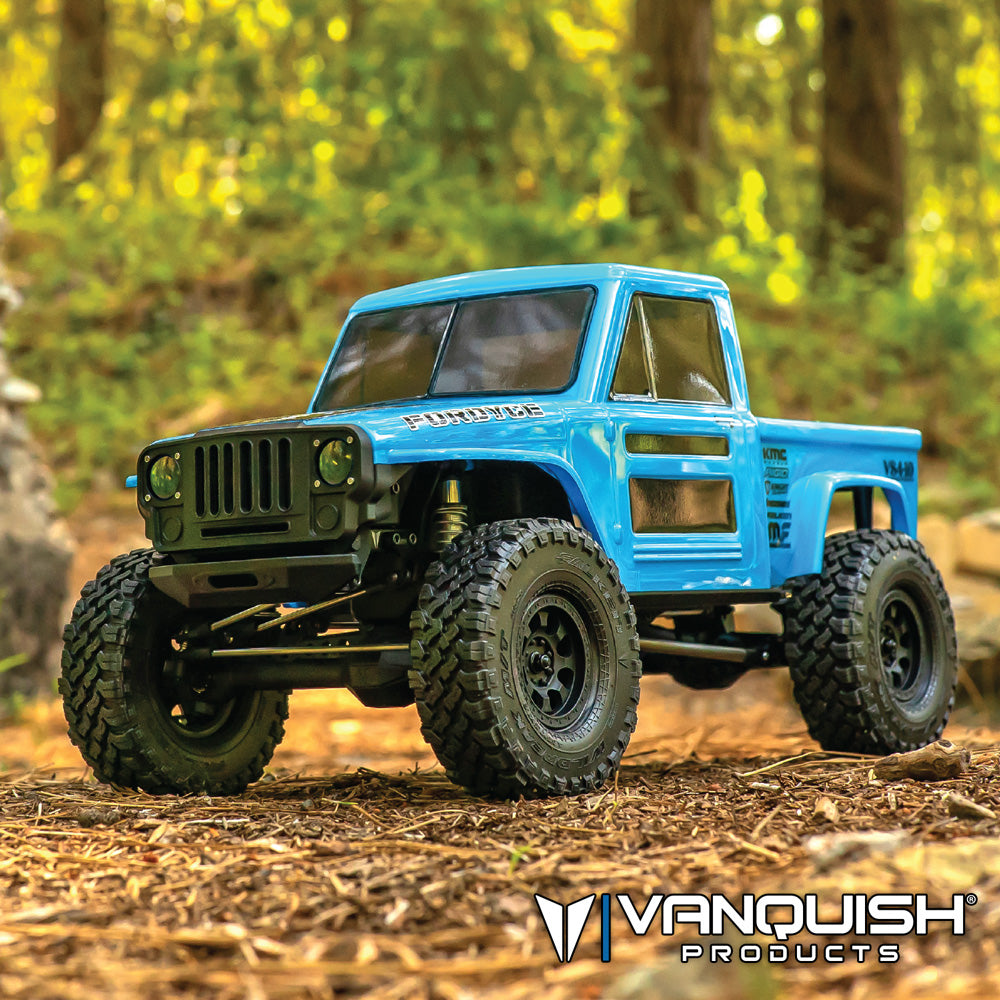

Vanquish Products VS4-10 Fordyce RTR
1/10 scale · scale crawler · VPS09012A
- Final drive
- 50.88:1
- Tire
- 118.1mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 56TStock | Stock |
| Transmission & axle | 11.81:1Derived | Derived |
| Spur ÷ pinion | 4.308:1Calculated | Calculated |
| Final drive | 50.88:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 118.1mmStock | Stock |
| Rollout | 7.3mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Up to 3SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | VPS09012A | |
| Scale | 1/10 | |
| Class | Scale crawler | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 13T | 32P | 3.175 mm | IRC00261 (opens in a new tab)Incision |
| Spur | 56T | Not recorded | Not applicable | Not recorded |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Vanquish prints '13T/56T Pinion/Spur' (and '32P 56T Spur and 13T Steel Pinion' in the feature list), '3.75:1 Axle Gear Ratio' and 'Internal Trans Ratio: Front 2.95 / Rear 3.15'.
- The rear reduction after the spur is 3.15 x 3.75 = 11.81, so the rear total is 56 / 13 x 11.81 = 50.9.
- The same page also prints 'Overall Gear Ratio: Front 41.3 / Rear 44.0', which only works with a 15T pinion and matches the 15T VS4-10 Pro kit; it is treated as carried over, and the printed tooth counts and stages are kept.
- Vanquish's Phoenix RTR, on the same 13T/56T VFD and 3.75 axles, prints 50.8.
- Tires are the included Falken Wildpeak M/T, printed as 4.65 in x 1.9 in, so 118.1mm.
- The VM-1 motor is a 35T brushed can, so there is no KV.
- The VE-1 ESC is Vanquish's version of the Hobbywing 1060, and Vanquish states it is 3S LiPo capable.
- Grey (VPS09012B) and blue (VPS09012A) are colour versions of the same truck.
Documents
- ManualInstruction manual (PDF) (opens in a new tab)
- Parts listParts list (in the instruction manual PDF) (opens in a new tab)Parts list, p. 7
- Gearing chartGear ratio chart (in the instruction manual PDF) (opens in a new tab)Gear ratio chart, p. 7
- Exploded viewExploded view, transmission (in the instruction manual PDF) (opens in a new tab)Transmission, PDF p. 11
Sources
- vs4-10-fordyce-rtr-greyvanquishproducts.com (opens in a new tab)
- vs4-10-fordyce-rtr-bluevanquishproducts.com (opens in a new tab)
- vs4-10-phoenix-rtr-greyvanquishproducts.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- 32p-hardened-steel-pinion-g…vanquishproducts.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
