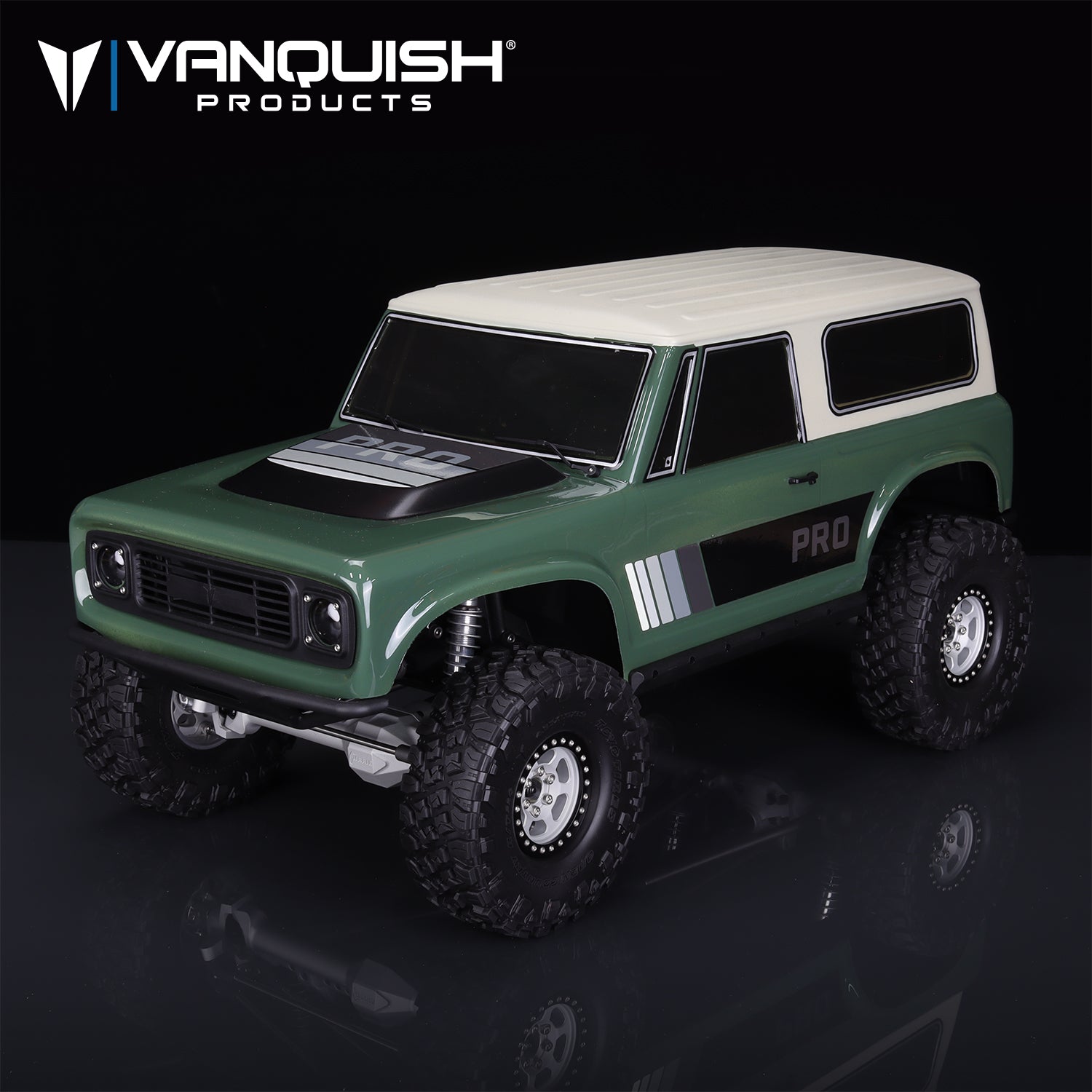

Vanquish Products VS4-10 Origin Classic Pro
1/10 scale · scale crawler · VPS09026B
- Final drive
- 40.90:1
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 15TStock | Stock |
| Spur | 52TStock | Stock |
| Transmission & axle | 11.80:1Derived | Derived |
| Final drive | 40.90:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | VPS09026B | |
| Scale | 1/10 | |
| Class | Scale crawler | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 15T | 32P | 3.175 mm | IRC00263 (opens in a new tab) |
| Spur | 52T | 32P | Not applicable | IRC00403 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The machined aluminum axle version of the Origin Classic.
- Vanquish prints 'Axle Ratio 3.75:1, Pinion 15T 32P, Spur 52T 32P, Overall Front Ratio 38.3:1, Overall Rear Ratio 40.9:1, Final Overdrive 6.5%', the same gearing as the Origin Classic.
- The rear total is used and the front is 38.3:1; the ratio after the spur is 40.9 x 15 / 52 = 11.80.
- Battle Born X-Ray 1.9 wheels are included but tires and electronics are not, so tire size, KV and cell count do not apply.
- Black (VPS09026B) and clear (VPS09026C) anodizing share the spec.
Documents
- ManualInstruction manual, VS4-10 Origin Classic and Classic Pro (Vanquish PDF) (opens in a new tab)Pinion and spur, Bag D p. 10
- Parts listSpare and option parts list (Vanquish PDF) (opens in a new tab)Spare parts, p. 30
- Gearing chartGear ratio chart (Vanquish PDF) (opens in a new tab)Gear ratio chart, p. 30
Sources
- vs4-10-origin-classic-provanquishproducts.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- 32p-hardened-steel-pinion-g…vanquishproducts.com (opens in a new tab)
- 32p-spur-gearvanquishproducts.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
