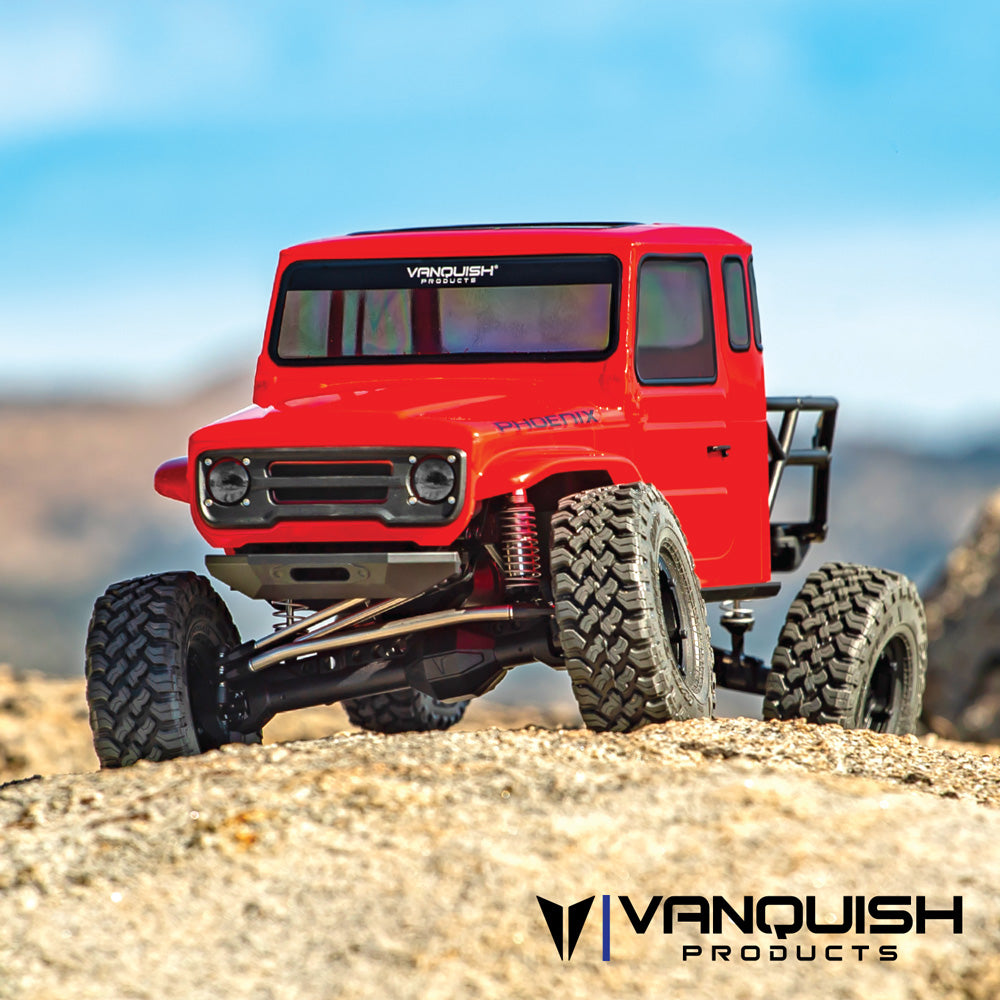

Vanquish Products VS4-10 Phoenix RTR (Straight Axle)
1/10 scale · scale crawler · VPS09011A
- Final drive
- 50.80:1
- Tire
- 118.1mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 56TStock | Stock |
| Transmission & axle | 11.79:1Derived | Derived |
| Spur ÷ pinion | 4.308:1Calculated | Calculated |
| Final drive | 50.80:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 118.1mmStock | Stock |
| Rollout | 7.3mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Up to 3SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | VPS09011A | |
| Scale | 1/10 | |
| Class | Scale crawler | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 13T | 32P | 3.175 mm | IRC00261 (opens in a new tab)Incision |
| Spur | 56T | 32P | Not applicable | IRC00411 (opens in a new tab)Incision |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Vanquish prints '3.75:1 Axle Gear Ratio, 13T/56T Pinion/Spur, Overall Front Ratio (Standard 6.5% OD): 47.6:1, Overall Front Ratio (Optional High 46% OD): 31.8:1, Overall Rear Ratio: 50.8:1'.
- The VFD Twin transmission's overdrive selector changes only the front, so the rear 50.8 is used.
- The ratio after the spur is 50.8 x 13 / 56 = 11.79.
- Tires are the included Falken Wildpeak M/T, printed as 4.65 in x 1.9 in, so 118.1mm.
- The VM-1 motor is a 35T brushed can, so there is no KV.
- The VE-1 ESC is Vanquish's version of the Hobbywing 1060, and Vanquish states it is 3S LiPo capable.
- Red (VPS09011A) and grey (VPS09011B) are colour versions.
Documents
- ManualInstruction manual (PDF) (opens in a new tab)
- Parts listParts list (in the instruction manual PDF) (opens in a new tab)Parts list, p. 41
- Gearing chartGear ratio chart (in the instruction manual PDF) (opens in a new tab)Gear ratio chart, p. 41
Sources
- vs4-10-phoenix-rtr-redvanquishproducts.com (opens in a new tab)
- vs4-10-phoenix-rtr-greyvanquishproducts.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- 32p-hardened-steel-pinion-g…vanquishproducts.com (opens in a new tab)
- vfd-32p-slipper-spur-gearvanquishproducts.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
