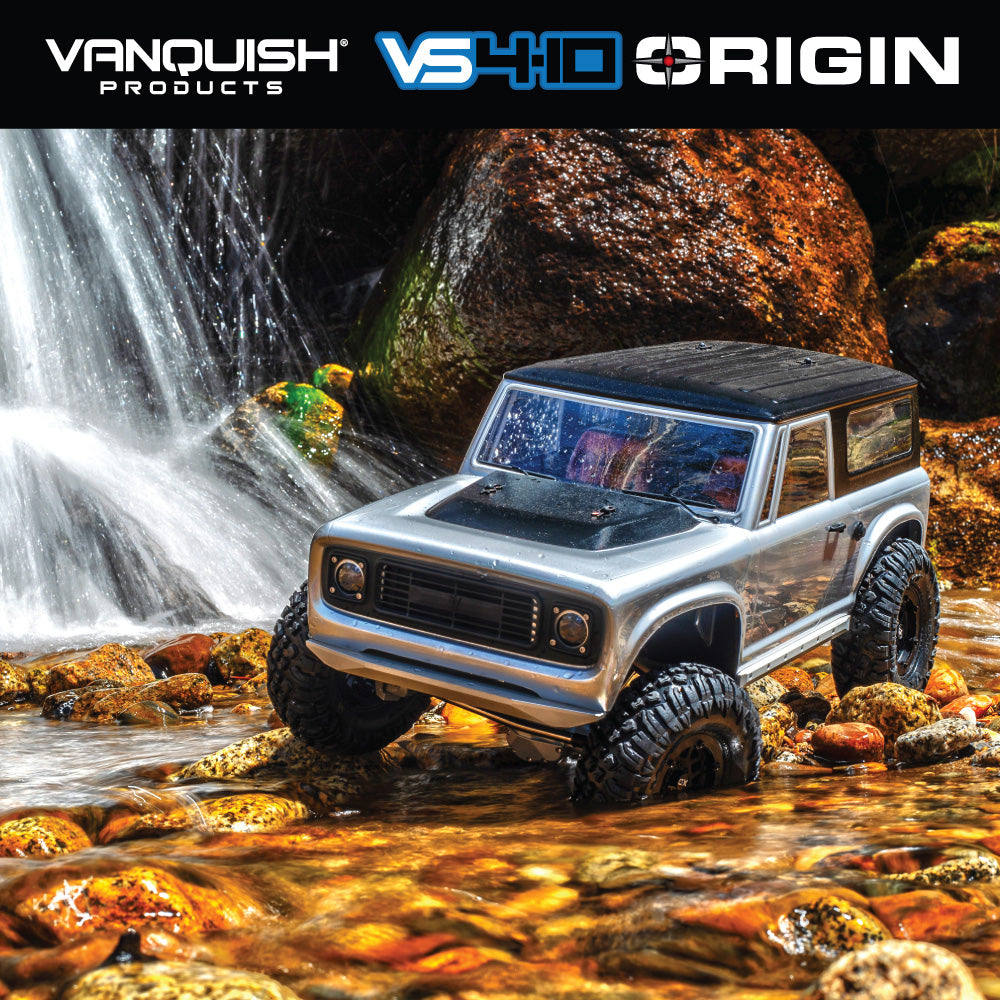

Vanquish Products VS4-10 Origin Limited Kit
1/10 scale · scale crawler · VPS09001
- Final drive
- 40.50:1
- Tire
- 118.1mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 54TStock | Stock |
| Transmission & axle | 9.75:1Derived | Derived |
| Spur ÷ pinion | 4.154:1Calculated | Calculated |
| Final drive | 40.50:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 118.1mmStock | Stock |
| Rollout | 9.2mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | VPS09001 | |
| Scale | 1/10 | |
| Class | Scale crawler | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 13T | 32P | Not published | Not published |
| Spur | 54T | 32P | Not applicable | Not published |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft.
How these numbers were settled
The VS4-10 kit with aluminum D44 axles and the 3-gear transmission rather than the VFD, so front and rear share one ratio.
- Vanquish prints '3.75:1 Axle Ratio, 2.6:1 Transmission Internal Ratio, 40.5:1 Overall Reduction, 13T (3mm shaft) 32P Pinion Included, 54T 32P Spur Gear Included'.
- The ratio after the spur is 2.6 x 3.75 = 9.75, and 54 / 13 x 9.75 = 40.5 matches the printed total.
- The kit includes KMC Machete beadlock wheels and VXT tires that Vanquish states are 4.65 in tall, so 118.1mm.
- No electronics are supplied, so KV and cell count do not apply.
- The Origin Limited Black kit (VPS09002) shares the spec.
Sources
- vs4-10-origin-limited-kitvanquishproducts.com (opens in a new tab)
- vs4-10-origin-limited-black…vanquishproducts.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
