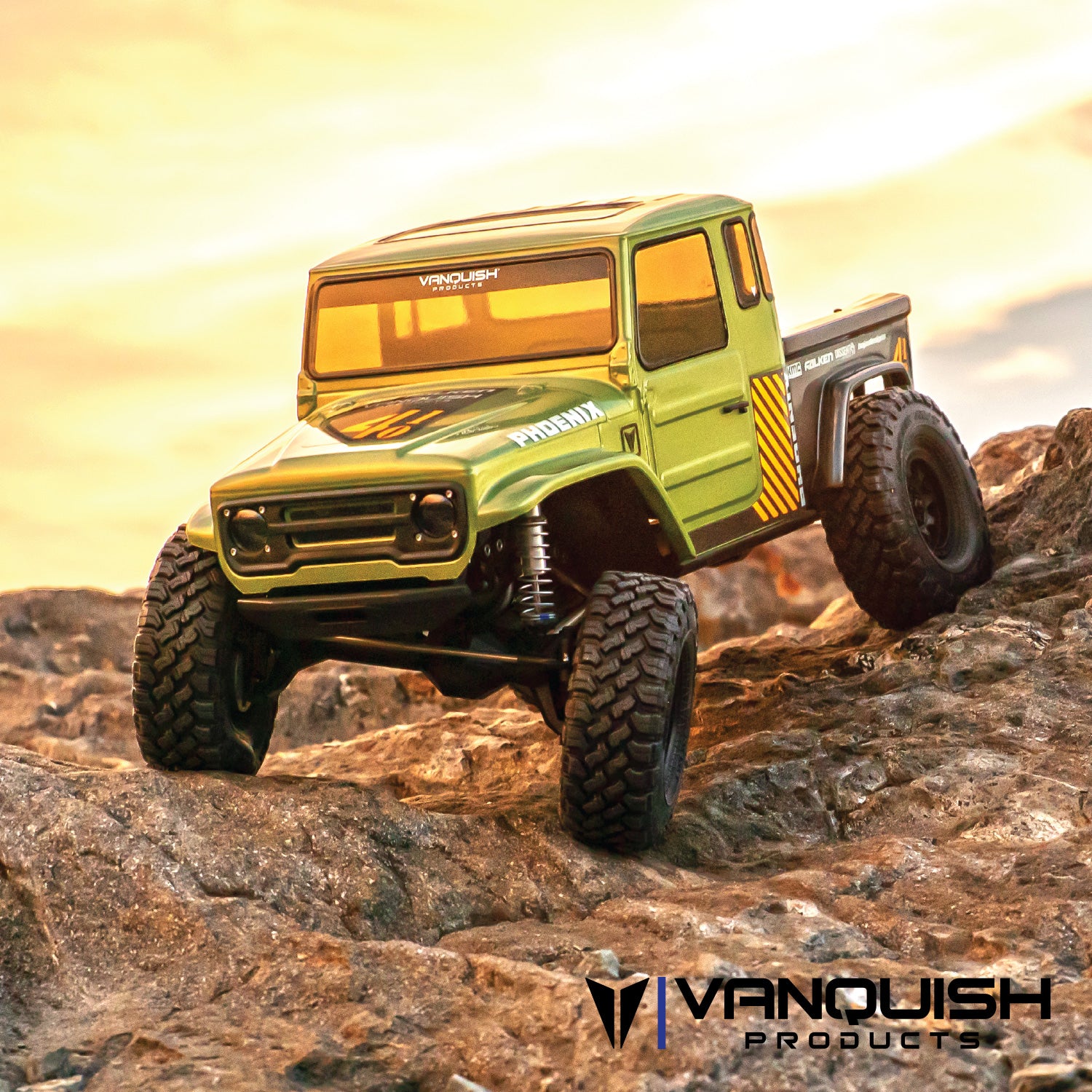

Vanquish Products VS4-10 Phoenix Portal RTR

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.

How these numbers were settled

Vanquish publishes '5.25:1 Axle Gear Ratio, 15T Pinion, 52T Spur Gear, Overall Front Ratio (Standard 6.5% OD): 53.7:1, Overall Rear Ratio: 57.2:1', plus a selectable High 46% overdrive that takes the front to 35.8:1.

• The rear 57.2 is used because the VFD Twin's overdrive selector does not change it; the front is 53.7 in the standard position and 35.8 in high overdrive, so it has no single value.
• The 16.5 ratio after the spur is the rear reduction, 57.2 x 15 / 52 = 16.50, and (52/15) x 16.5 = 57.20 exactly.
• Tires are the included 1.9 Falken Wildpeak M/T in 4.65 in, i.e. 118mm outside diameter, published as '4.65" X 1.9" TIRES'.
• The RTR ships with a Vanquish motor and VE-1 3S ESC, but Vanquish publishes no KV for it, so KV and cell count are left blank rather than guessed, and no speed check is possible.
• Portal axles.
• Vanquish prints '1.4:1 Portal Gear Ratio' and '20T/28T Portal Gear' (28/20 = 1.4).
• Its '5.25:1 Axle Gear Ratio' is the axle including the portal, not the ring and pinion, which is 30/8 = 3.75.

Sources

• vs4-10-phoenix-portal-rtrvanquishproducts.com (opens in a new tab)
• vs4-10-phoenix-portalvanquishproducts.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
