Name: Tamiya TT-02BR Chassis Kit
Brand: Tamiya
SKU: 58717

1/10 scale · 4WD buggy chassis kit · 58717

Tamiya's TT-02BR Chassis Kit is a 1/10 four-wheel-drive, shaft-driven buggy kit, the race version of the TT-02B, sold without tires or motor.

It comes geared with a 17T pinion on the 70T spur, and the 2.60:1 gearbox and axle stage gives a 10.71:1 final drive on a 258 mm wheelbase. Tires are your choice, so measure the ones you fit and enter that size in the gearing tool.

Final drive: 10.71:1
Introduced: 2023

Gearing Top speedsourced

Sold without a motor, so there is no stock KV: compare gearing by rollout.

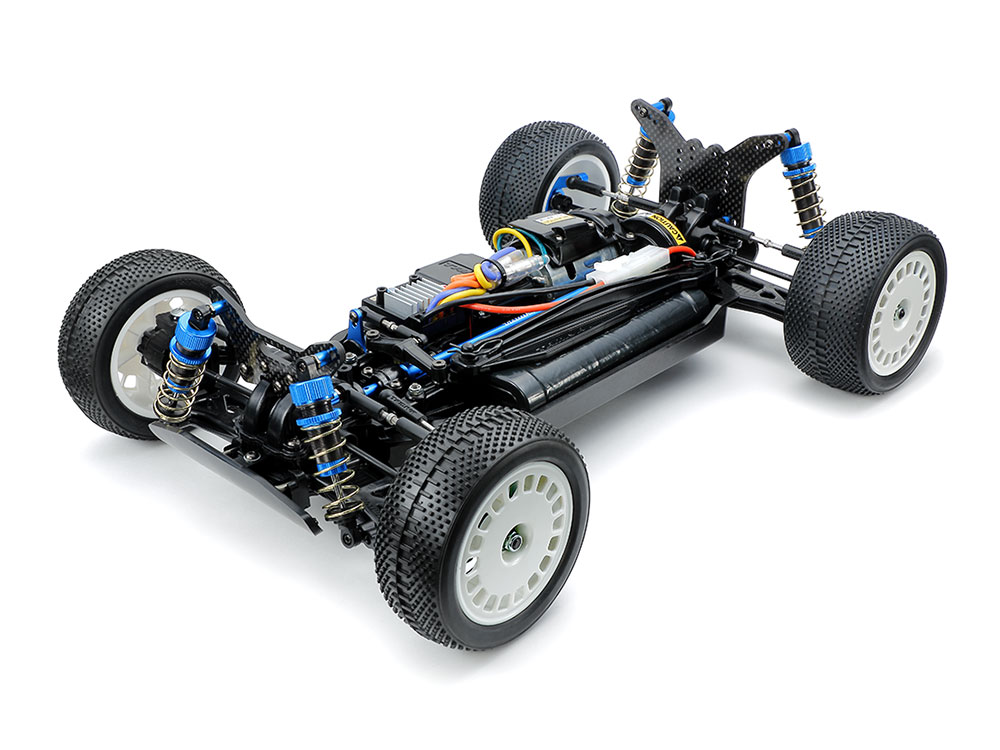

Tamiya TT-02BR Chassis Kit — Photo: Tamiya (opens in a new tab)

Specifications

Last modified Sep 28, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Buggies are low, light off-road cars built for jumps and fast corners on dirt, clay or turf tracks. Drive All four wheels are driven. That gives more grip under power, especially on loose ground. The cost is more parts to maintain. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size. Part number The maker's product number for this exact version. A V2, a new color, or a kit instead of an RTR usually has a different number, and parts can differ between them. Check it against your box or receipt before ordering parts.
Class	Buggy
Drive	4WD
Build	Kit
Scale	1/10
Part number	58717
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On this car one tooth changes the gearing by about 5.9%. Racers change the pinion to suit the track and the class's motor rules, and often compare setups by rollout rather than tooth count. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. This one is worked out from the tooth counts the maker publishes. Final drive How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed. Among 1/10 buggies in the catalog, the middle half run between 8.2:1 and 10.6:1 on stock gearing; this one is 10.7:1, shorter than most.
Pinion	17TStock	Stock
Spur	70TStock	Stock
Transmission & axle	2.60:1Derived	Derived
Final drive	10.71:1Stock	Stock
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter	Not applicable
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	Not applicable
Battery	Not applicable
Performance
Theoretical top speed It needs a motor KV, and this vehicle comes without a motor. Fit one and the calculator works it out from the motor's KV and the gearing.
Theoretical top speed	Not applicable
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly.
Wheelbase	258 mm10.2 inStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how.
Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

Other versions of this chassis

How these numbers were settled

Race-spec TT-02B buggy kit with oil gear differentials and aluminium-cylinder dampers; it includes a Neo Scorcher body and wing but no tires, motor or speed controller.

Tamiya prints 'Gear ratio = 10.71:1 (with kit standard pinion)', a 17T hard-coated aluminium pinion.
The spur and the stage after it are the TT-02B's 70T and 2.6, derived: (70/17) x 2.6 = 10.706.
Both of Tamiya's pages print a 258mm wheelbase.
