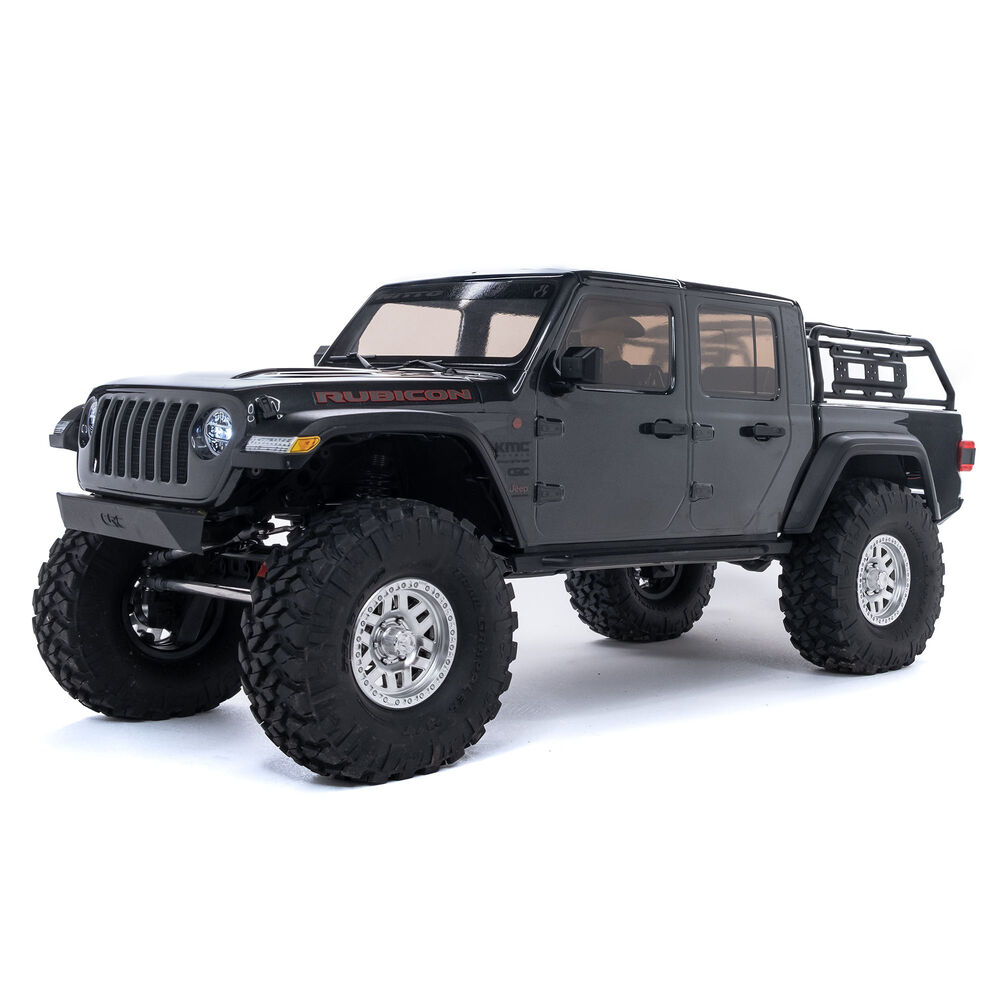

VehiclesAxial SCX10 III Jeep JT Gladiator (with Portals)
Axial SCX10 III Jeep JT Gladiator (with Portals)
1/10 scale · AXI03006B
- Final drive
- 45.60:1
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 14TStock | Stock |
| Spur | 40TStock | Stock |
| Transmission & axle | 15.96:1Stock | Stock |
| Final drive | 45.60:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Power | ||
| Motor | Not applicable | |
| Battery | Up to 3SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | AXI03006B | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
How these numbers were settled
Axial's own product page (AXI03006B) publishes a 14T pinion, 40T spur, final drive '45.6:1 Low / 31.3:1 High', 3S/2S LiPo compatibility, a brushed 540-size motor and 'AR45 portal axles'.
- The Low-range 45.6 is used as the stock ratio.
- The 15.96 transmission and axle ratio is back-calculated as final drive / (spur/pinion), so it already includes the portal reduction.
- The portal reduction itself (1.92, from a 23T/12T portal gearset) is not from Axial, which does not publish the portal tooth count for this SKU.
- It is inferred from two independent aftermarket listings that both describe 23T/12T as the standard Axial portal gearset for AR45/SCX10 III portals: KeyCityHobby's portal gear set page and Incision's 'Portal Standard Gear Set (12/23)'.
- Because that one figure is vendor-sourced rather than manufacturer-published, the whole vehicle is graded community-sourced, even though pinion, spur, final drive, LiPo and motor type come from Axial's own page.
- The stock motor is a brushed 35T can with no published KV, so KV does not apply.
- No published outer diameter was found for the stock 1.9 Nitto Trail Grappler 4.74 Wide M/T tire (AXI43010) on any retailer or Axial page checked, so the tire diameter is left blank rather than guessed.
- It differs from the straight-axle SCX10 III trims (Base Camp, Early Bronco, Wrangler Rubicon) by its AR45 portal axles, which multiply the final drive by roughly 1.9x at the vendor-sourced tooth count.
Sources
- AXI03006Baxialadventure.com (opens in a new tab)
- portalgearsetkeycityhobby.com (opens in a new tab)
- p1254189amainhobbies.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
