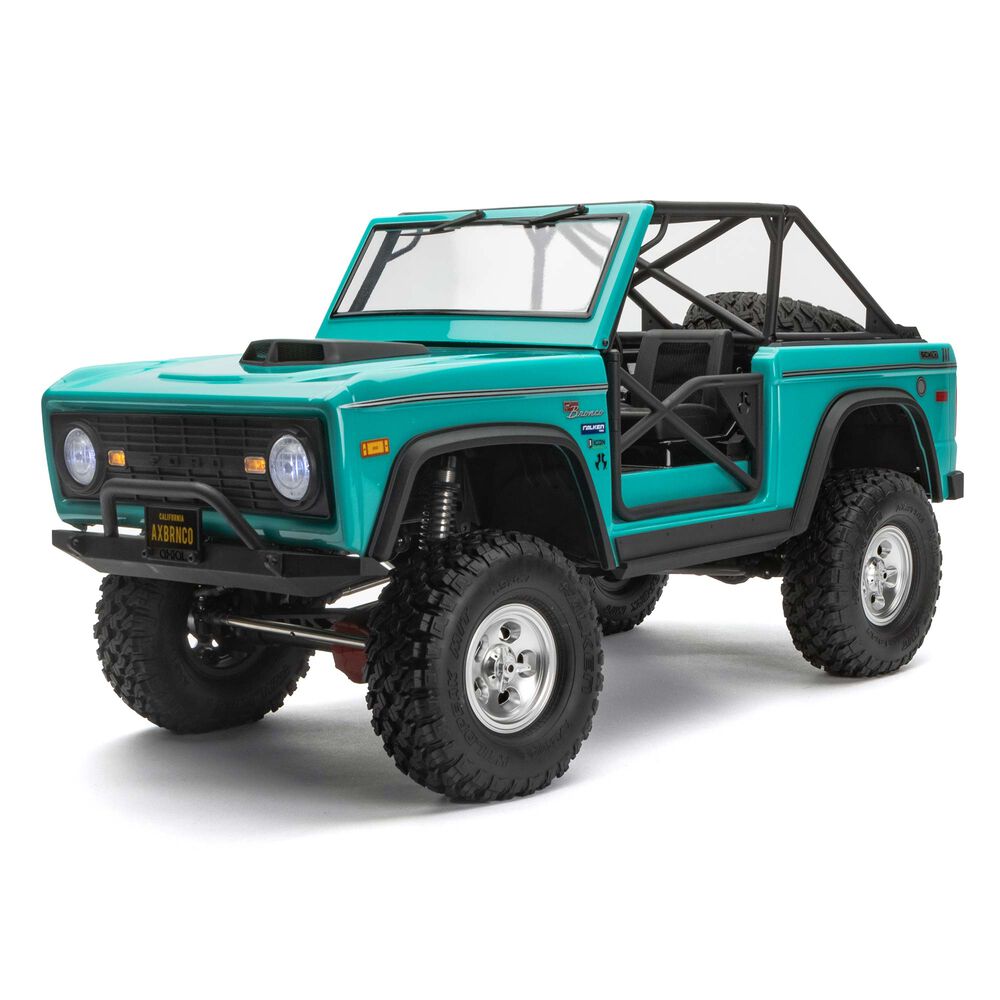

VehiclesAxial SCX10 III Early Bronco
Axial SCX10 III Early Bronco
1/10 scale · AXI03014
- Final drive
- 45.60:1
- Tire
- 119mm
Open in Top Speedverified
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 14TStock | Stock |
| Spur | 40TStock | Stock |
| Transmission & axle | 15.96:1Stock | Stock |
| Spur ÷ pinion | 2.857:1Calculated | Calculated |
| Final drive | 45.60:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 119mmEstimated | Estimated |
| Rollout | 8.2mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not published | |
| Battery | Not published | |
| Performance | ||
| Theoretical top speed | Not published | |
| Vehicle | ||
| Part number | AXI03014 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
How these numbers were settled
Tire diameter is from the original catalog and is not manufacturer-sourced.
Sources
- AXI03014horizonhobby.com (opens in a new tab)
- Manual (PDF)horizonhobby.com (opens in a new tab)
- AXIC1143horizonhobby.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
