VehiclesArrma Typhon Grom MEGA 380

Arrma Typhon Grom MEGA 380

1/14 scale · buggy · ARA2106

Final drive: 8.19:1

Open in Top Speedsourced

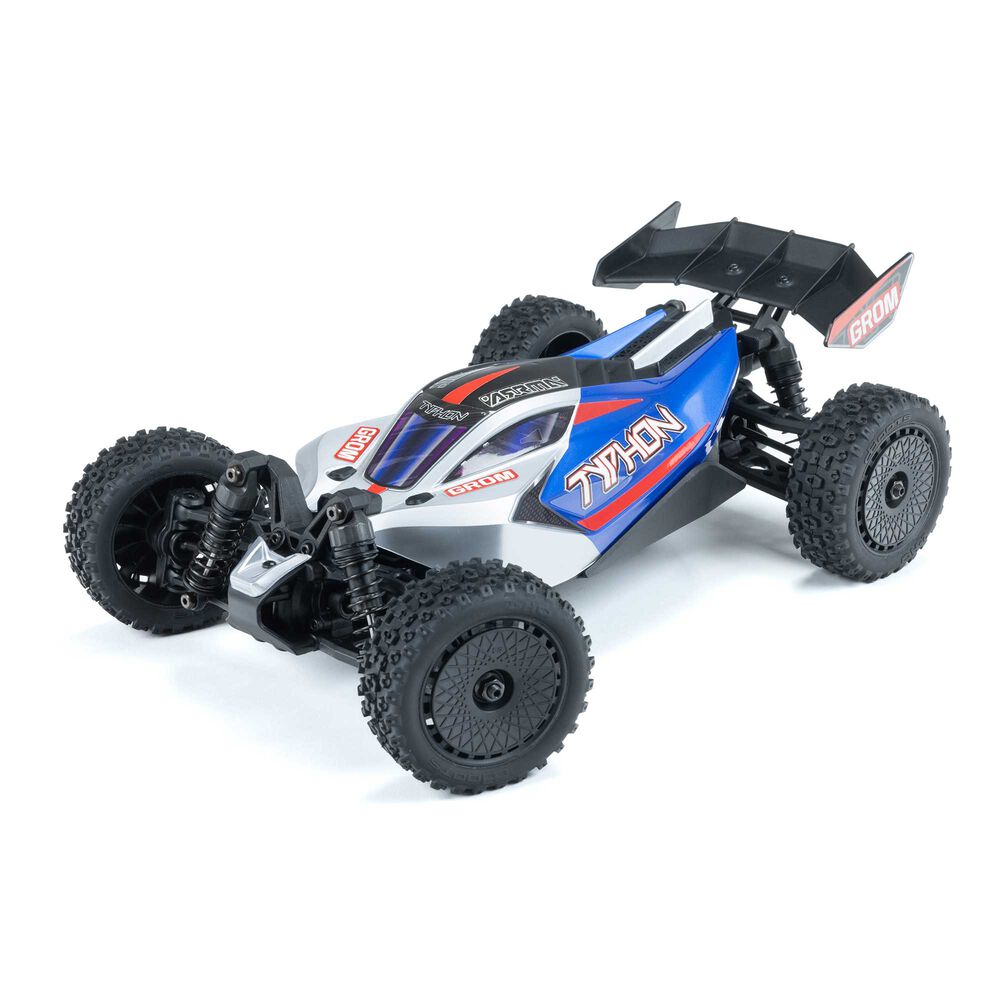

Arrma Typhon Grom MEGA 380 — Photo: Horizon Hobby

Specifications

Last modified Sep 23, 2026

Spec	Value	Basis
Drivetrain
Pinion	18TStock	Stock
Spur	59TStock	Stock
Transmission & axle	2.50:1Derived	Derived
Final drive	8.19:1Stock	Stock
Wheels & tires
Tire diameter	Not published
Power
Motor	Not applicable
Motor shaft	Not published
Battery	Up to 2SLiPoStock	Stock
Performance
Theoretical top speed	Not applicable
Vehicle
Part number	ARA2106
Scale	1/14
Class	Buggy

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.

Gearing parts

Pinion and spur parts for the Arrma Typhon Grom MEGA 380: fitted, and optional gearing supplied in the box
Component	Teeth	Pitch	Bore	Part number
Fitted at the factory
Pinion	18T	Mod 0.5	2.3 mm	ARA311204 (opens in a new tab)
Spur	59T	Mod 0.5	Not applicable	ARA311196 (opens in a new tab)

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.

How these numbers were settled

The brushed 1/14 Typhon Grom, sold with a battery and charger, with an Arrma MEGA 380 28T brushed motor and a Spektrum 25A 2-in-1 ESC and receiver; Horizon lists 2S LiPo compatibility.

Brushed, so there is no KV.
The 18T pinion and 59T metal spur come from Horizon's standard-parts list.
The transmission and axle ratio is not printed for the brushed Groms; the standard-parts list names the same 30T Grom diff (or its oil-filled 30T twin) and the same input gear set (ARA311182, two 12T input gears) that Horizon prints as a 2.50 ratio on the brushless Grom 223S trucks, so 30/12 = 2.5 is used.
Final drive is 59/18 x 2.5 = 8.19.
No diameter is published for the dBoots 2-HO Grom tire, so it is left blank.

Documents

Exploded viewExploded view (Horizon PDF) (opens in a new tab)
Parts listParts tech pack with 0.5 Mod pinion options (Horizon PDF) (opens in a new tab)Pinion options, p. 2

Sources

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
