VehiclesArrma Typhon 6S BLX V5

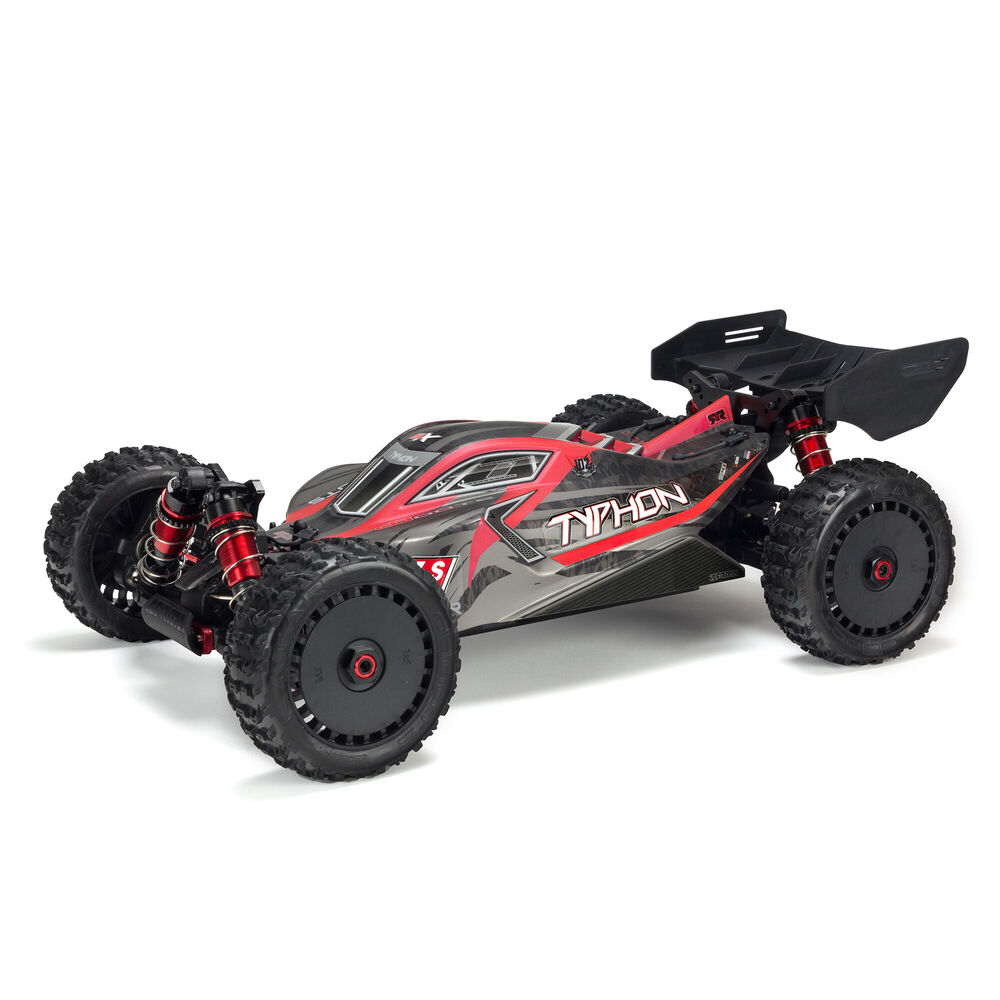

Arrma Typhon 6S BLX V5
1/8 scale · ARA8606V5
- Top speed
- 60mphcalculated
- Final drive
- 10.31:1
- Tire
- 117mm
Open in Top Speedverified
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 16TStock | Stock |
| Spur | 50TStock | Stock |
| Transmission & axle | 3.30:1Stock | Stock |
| Spur ÷ pinion | 3.125:1Calculated | Calculated |
| Final drive | 10.31:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 117mmStock | Stock |
| Rollout | 35.6mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 2050KVStock | Stock |
| Battery | Up to 6SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 60.5mph on 6SCalculated | Calculated |
| Motor speed | 45,510rpm, no loadCalculated | Calculated |
| Advertised top speed | 70mphMaker's claim | Maker's claim |
| Vehicle | ||
| Part number | ARA8606V5 | |
| Scale | 1/8 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower. The maker advertises 70 mph, which is their own claim on their own conditions.
How these numbers were settled
Stock gearing.
- Arrma footnotes the 70+ mph claim as needing two 3S packs or one 6S softpack plus an optional pinion gear that is not included, so the claim is not a clean check on stock gearing; stock computes to about 69 mph regardless.
- Tire is the dBoots Katar B 6S 3.3 (ARA550058) named in the ARA8606V5 exploded view, whose own page prints Outer Diameter 4.6 in (117mm).
Sources
- ARA8606V5horizonhobby.com (opens in a new tab)
- Manual (PDF)horizonhobby.com (opens in a new tab)
- ARA550058horizonhobby.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
