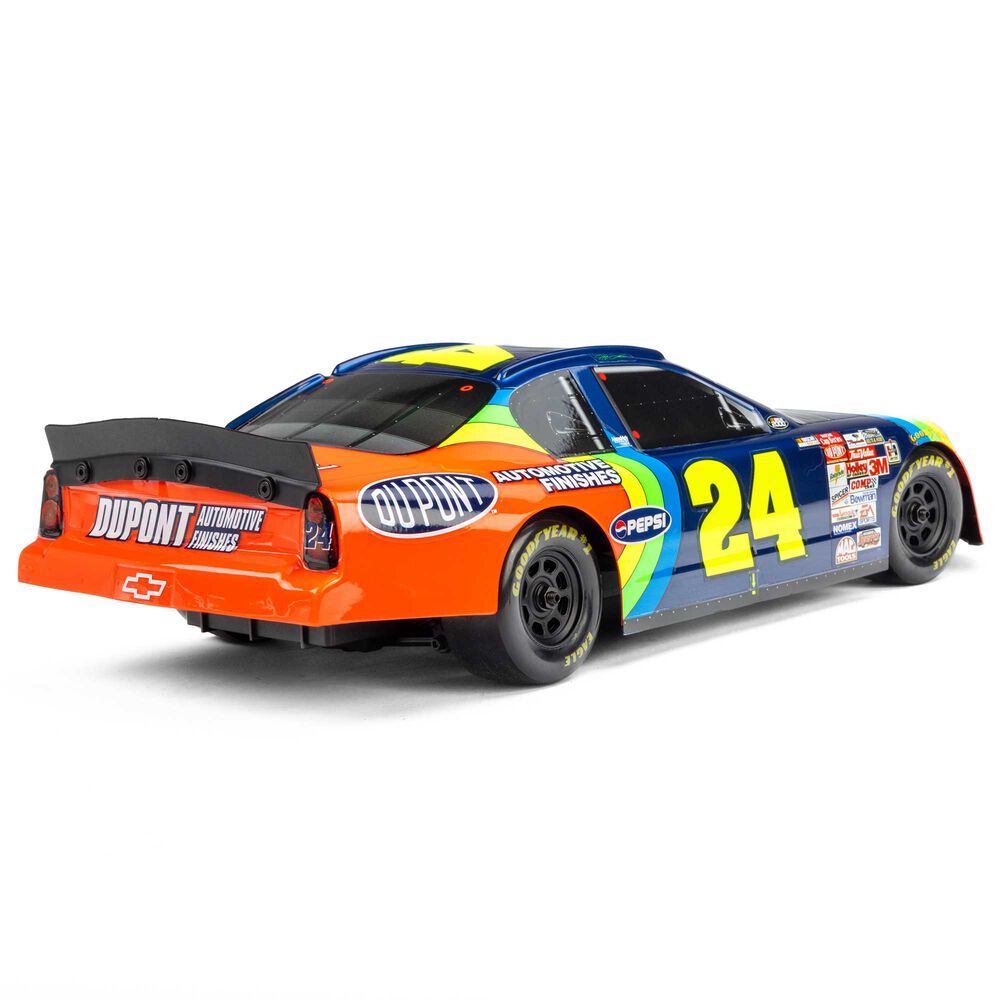

VehiclesLosi 1/12 NASCAR Race Car (2S AWD)
Losi 1/12 NASCAR Race Car (2S AWD)
1/12 scale · LOS1120024
- Final drive
- 7.76:1
- Tire
- 55.3mm
Open in Top Speedverified
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 19TStock | Stock |
| Spur | 59TStock | Stock |
| Transmission & axle | 2.50:1Stock | Stock |
| Spur ÷ pinion | 3.105:1Calculated | Calculated |
| Final drive | 7.76:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 55.3mmEstimated | Estimated |
| Rollout | 22.4mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not published | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Vehicle | ||
| Part number | LOS1120024 | |
| Scale | 1/12 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
How these numbers were settled
All Losi 1/12 NASCAR liveries (LOS1120xxx, LOSF1122xxx) share this chassis, gearing and tire, so one row covers the line.
- Brushed 380, so no kV.
- Tire OD is not published as a diameter; it is derived from Losi's own published Roll Out (0.88 in / 22.40 mm per motor revolution) and the published 7.76 total: 22.40 x 7.76 / pi = 55.3 mm.
Sources
- LOS1120024horizonhobby.com (opens in a new tab)
- LOSF1122503horizonhobby.com (opens in a new tab)
- LOS-3104T1horizonhobby.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
