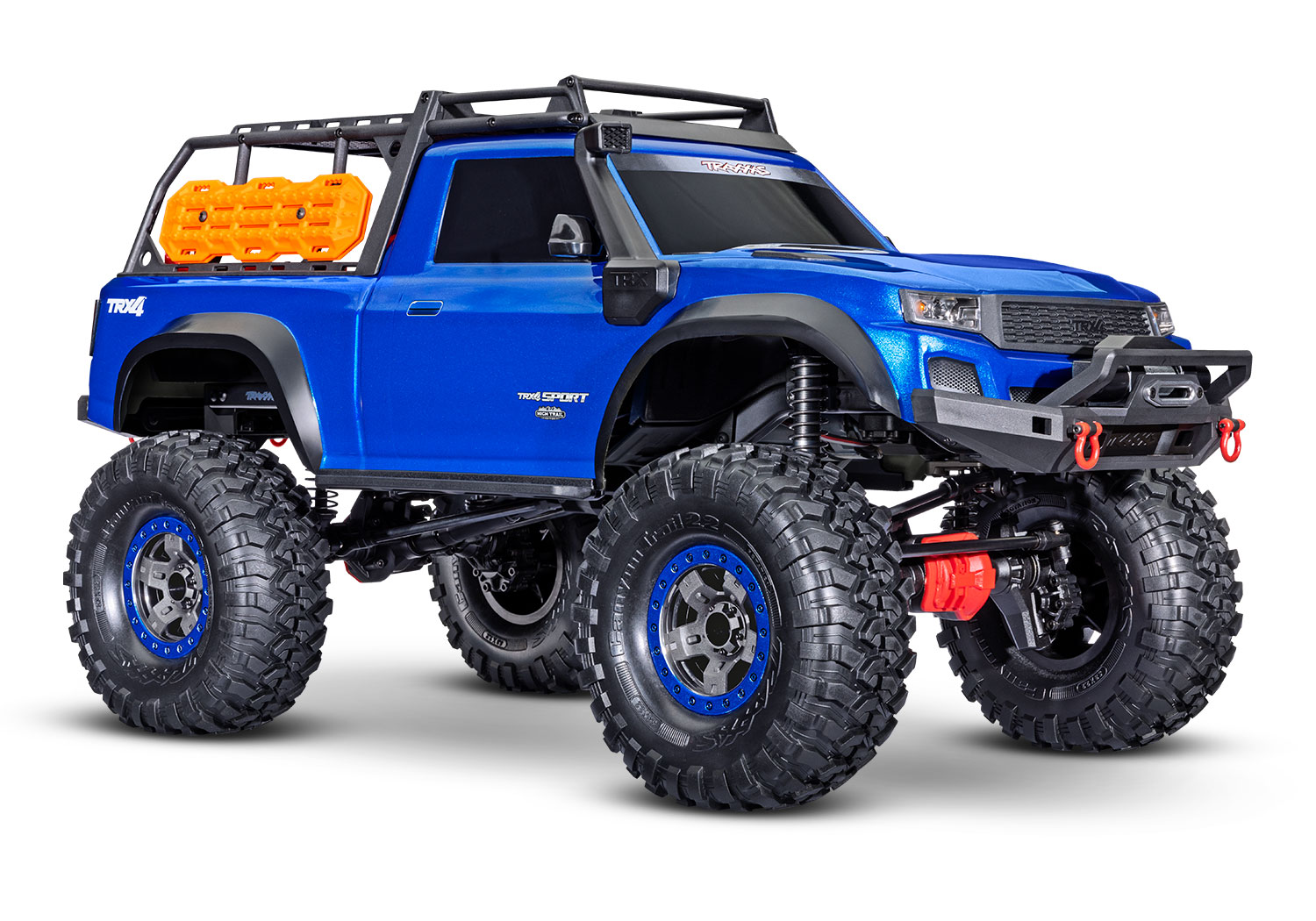

Traxxas TRX-4 Sport High Trail Edition

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

In our catalog, half of 1/10 crawlers run between 31.9:1 and 44.6:1 on stock gearing; this one is 41.1:1. What's a normal final drive for your RC?

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft (3 mm on the stock motor). Linked part numbers go to the maker's or official distributor's page for that part.

Buying a new pinion or spur? Check what’s fitted first: Why your RC's gear specs might not add up

How these numbers were settled

Single-speed TRX-4 Sport on 2.2-inch Canyon Trail tires, geared with a 15-tooth pinion and a 39-tooth spur.

• The owner's manual gear chart (p. 27) marks 15/39 as the factory gearing at 41.08:1, and Traxxas's transmission exploded view for this model shows a 3917 15-tooth pinion on the 8052 39-tooth spur.
• The manual's text still says the truck ships with a 17-tooth pinion, a sentence carried over from the TRX-4 Sport manual; the chart and the drawing agree with each other, so 15 teeth is shown here.
• The manual's formula is spur teeth / pinion teeth x 15.8, and 39/15 x 15.8 = 41.08, the same figure the chart prints.
• The parts list gives the 39-tooth spur in regular type (stock) but prints every pinion in bold (optional), so it does not name the stock pinion.
• The tire is the Canyon Trail 2.2 x 5.3 in, 134.6 mm outside diameter, as printed on the 8170 tire page and in the parts list.
• Portal axles: Traxxas publishes no portal reduction for the 1/10 TRX-4, and 2.5559 is the value that reproduces its printed constants, as on the other TRX-4 sheets.
• The Titan 550 21T motor is brushed, so it has no KV; the XL-5 HV speed control is rated for 2s or 3s LiPo.

Documents

• ManualOwner's manual, model 82044-4 (Traxxas PDF) (opens in a new tab)Motors and gearing p. 27
• Gearing chartGearing compatibility chart (in the owner's manual) (opens in a new tab)p. 27
• Parts listParts list, 82044-4 (Traxxas PDF) (opens in a new tab)Spur gears and pinion gears, p. 6
• Exploded viewExploded view, transmission assembly (Traxxas JPG) (opens in a new tab)

Sources

• trx-4-sport-high-trail-edit…traxxas.com (opens in a new tab)
• Manual (PDF)traxxas.com (opens in a new tab)
• Manual (PDF)traxxas.com (opens in a new tab)
• 82044-4_TQi_explodedviews_2…traxxas.com (opens in a new tab)
• 3917-15-tooth-pinion-gear-3…traxxas.com (opens in a new tab)
• 8052-39-tooth-spur-gear-32-…traxxas.com (opens in a new tab)
• 8170-22-canyon-trail-tires-…traxxas.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
