Tamiya DT-03 Chassis

Name: Tamiya DT-03
Brand: Tamiya

1/10 scale · 2WD buggy chassis · sold as kits

Tamiya's DT-03 is a 1/10 rear-motor, two-wheel-drive buggy chassis with a slim monocoque frame, sold under bodies such as the Racing Fighter and the Neo Mighty Frog.

Tamiya prints 9.28:1 with the 17T pinion and 8.3:1 with the 19T, and both work out to the same spur and gearbox product, so any pinion can be checked against them. The 287 mm wheelbase is long for the class and keeps the buggy steady on rough ground. The spur and gearbox stage are not published, so enter your pinion in the gearing tool.

Final drive: 8.30 to 9.28:1on 19T to 17T
Wheelbase: 287mm
Introduced: 2014

Gearing Top speedsourced

The pinion, motor and tires come with each kit: enter yours in the gearing tool.

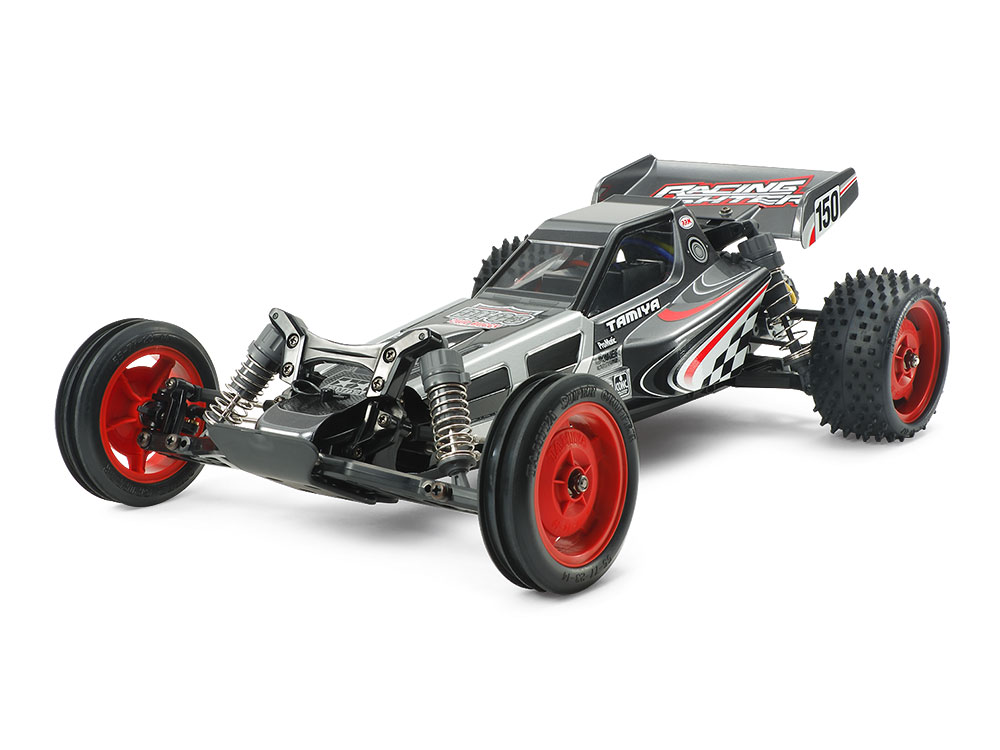

Tamiya DT-03 — Photo: Tamiya (opens in a new tab)

Kits on this chassis Built on the DT-03

Each kit adds its own body, tires, pinion and motor. The chassis figures below apply to all of them.

Kit	Part no.	Maker page
Neo Fighter Buggy	58587	tamiya.comPage (opens in a new tab)
Black Edition (Racing Fighter Body)	84435	tamiya.comPage (opens in a new tab)

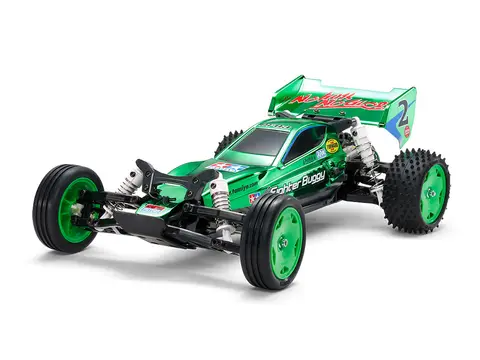

Neo Mighty Frog Green Metallic	47371	tamiya.comPage (opens in a new tab)

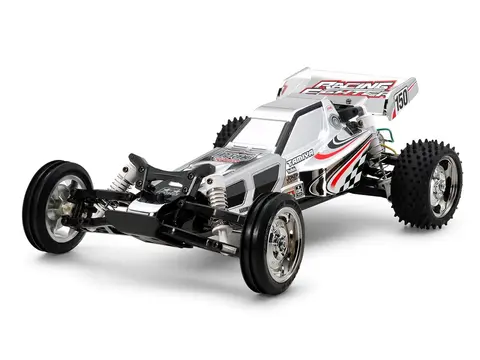

Racing Fighter Chrome Metallic	47347	tamiya.comPage (opens in a new tab)

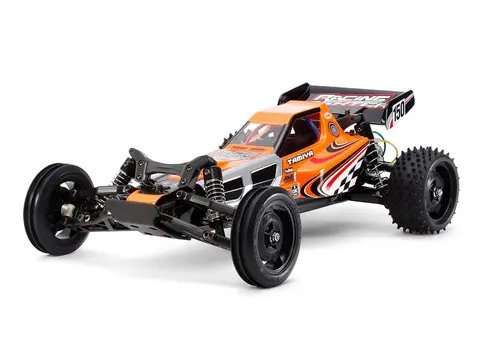

Racing Fighter	58628	tamiya.comPage (opens in a new tab)

Specifications

Last modified Sep 28, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Buggies are low, light off-road cars built for jumps and fast corners on dirt, clay or turf tracks. Drive Only one axle is driven, the rear on almost every 2WD RC car. It is lighter and simpler, and it takes more throttle control on loose ground. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Class	Buggy
Drive	2WD
Build	Kit
Scale	1/10
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. Final drive, printed How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.
Pinion	With each kit
Spur	Not published
Transmission & axle	Not published
Final drive, printed	9.28:1 on 17T, 8.30:1 on 19TMaker's chart	Maker's chart
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter	With each kit
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	With each kit
Battery	With each kit
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly.
Wheelbase	287 mm11.3 inStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Not published means it exists but no source we could find prints it.
With each kit means each kit on this chassis brings its own, so enter yours in the gearing tool.
Maker’s chart is the ratios the maker prints for this chassis with the pinions it names.

Other versions of this chassis

DT-03TChassisTruck version · 2015

How these numbers were settled

Tamiya prints 9.28:1 ('ギヤレシオ=9.28:1' on 58587) on the Neo Mighty Frog / Neo Fighter Buggy 58587, the Racing Fighter 58628, the Racing Fighter Chrome Metallic 47347 and the Neo Mighty Frog Green Metallic 47371, and the DT-03 manual fits the kit's 17T pinion (BB9 '17T Pinion gear', step 18, PDF p. 12).

The DT-03 Black Edition 84435 prints 'ギヤレシオ＝8.30：1' and says it comes with a '19Tピニオンギヤ'. 17 x 9.28 = 157.8 and 19 x 8.30 = 157.7, so the two pairs agree.
The manual names the spur BG4 without a tooth count and the gearbox stage is not published, so pinion x ratio is the only gearing fact.
Rear motor, rear-wheel drive, 287mm wheelbase on every kit.
