Tamiya DT-04 Chassis

Name: Tamiya DT-04
Brand: Tamiya

1/10 scale · 2WD buggy chassis · sold as kits

Tamiya's DT-04 is a 1/10 two-wheel-drive buggy chassis with the motor at the rear and the battery mounted lengthwise, sold as the Fighter NXGEN kit.

Tamiya prints 9.28:1 with the kit's 17T pinion and 8.3:1 with an optional 19T, and the wheelbase can be set to 265 mm or 280 mm. The shorter setting favors quick steering and the longer one stability, as Tamiya describes them. The spur and gearbox stage are not published, so enter your pinion in the gearing tool to see what it does.

Final drive: 8.30 to 9.28:1on 19T to 17T
Wheelbase: 265 / 280mm
Introduced: 2025

Gearing Top speedsourced

The pinion, motor and tires come with each kit: enter yours in the gearing tool.

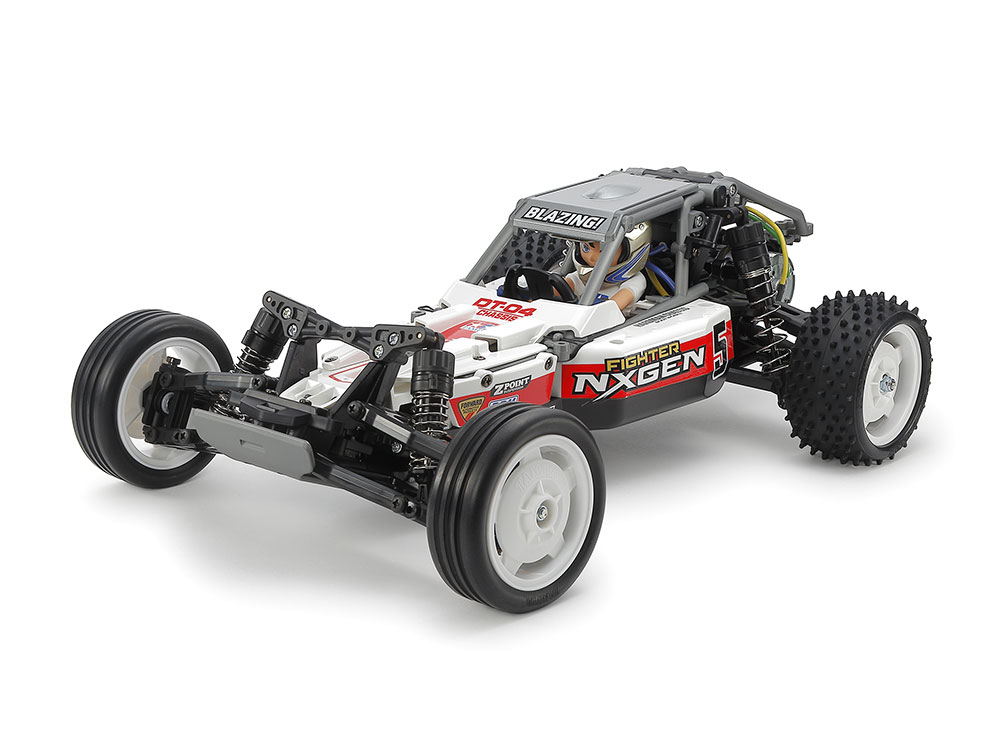

Tamiya DT-04 — Photo: Tamiya (opens in a new tab)

Kits on this chassis Built on the DT-04

Each kit adds its own body, tires, pinion and motor. The chassis figures below apply to all of them.

Kit	Part no.	Maker page
Fighter NXGEN	58741	tamiya.comPage (opens in a new tab)

Specifications

Last modified Sep 28, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Buggies are low, light off-road cars built for jumps and fast corners on dirt, clay or turf tracks. Drive Only one axle is driven, the rear on almost every 2WD RC car. It is lighter and simpler, and it takes more throttle control on loose ground. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Class	Buggy
Drive	2WD
Build	Kit
Scale	1/10
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. Final drive, printed How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.
Pinion	With each kit
Spur	Not published
Transmission & axle	Not published
Final drive, printed	9.28:1 on 17T, 8.30:1 on 19TMaker's chart	Maker's chart
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter	With each kit
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	With each kit
Battery	With each kit
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly. This chassis can be set to more than one wheelbase.
Wheelbase	265 or 280mm, 2 settingsStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Not published means it exists but no source we could find prints it.
With each kit means each kit on this chassis brings its own, so enter yours in the gearing tool.
Maker’s chart is the ratios the maker prints for this chassis with the pinions it names.

How these numbers were settled

Tamiya prints 'ギヤ比＝9.28：1(キット標準17Tピニオン使用時)' on the Fighter NXGEN 58741, the only kit on its DT-04 list, and the manual's table gives 17T 9.28:1 and 19T 8.30:1 (step 6, PDF p. 5); 17 x 9.28 = 157.8 and 19 x 8.30 = 157.7 agree.

The manual labels the spur GB4 and the counter gear GB1 without tooth counts and the gearbox stage is not published, so pinion x ratio is the only gearing fact.
Rear motor, rear-wheel drive; Tamiya prints 'ホイールベース265mm/280mm', short for handling and long for stability.

Sources

Every figure on this page traces to one of these; where they disagreed, the note above says which was used and why. Links open in a new tab.

Maker documents

Fighter NXGEN instruction manual, DT-04 chassis (Tamiya PDF) (opens in a new tab)Pinion and gear ratio table, step 6, PDF p. 5tamiya.comUsed forMain specs

Parts and electronics

Products 58741 (opens in a new tab)tamiya.comUsed forMain specs
Products 58741 (opens in a new tab)tamiya.comUsed forMain specs
Product info EX (opens in a new tab)tamiya.comUsed forMain specs
