VehiclesTamiya DT-03T

Tamiya DT-03T Chassis

Name: Tamiya DT-03T
Brand: Tamiya

1/10 scale · 2WD chassis · sold as kits

Tamiya's DT-03T is the truck version of the DT-03, a 1/10 rear-motor, two-wheel-drive chassis sold as the Aqroshot kit.

It keeps the long 287 mm wheelbase and the same printed gearing, 9.28:1 with the kit's 17T pinion. Tamiya does not print the spur tooth count or the stage after it, so that total is the gearing fact to work from. The tires come with the kit rather than the chassis, so enter their size along with your pinion in the gearing tool.

Final drive: 9.28:1on 17T
Wheelbase: 287mm
Introduced: 2015

Gearing Top speedsourced

The pinion, motor and tires come with each kit: enter yours in the gearing tool.

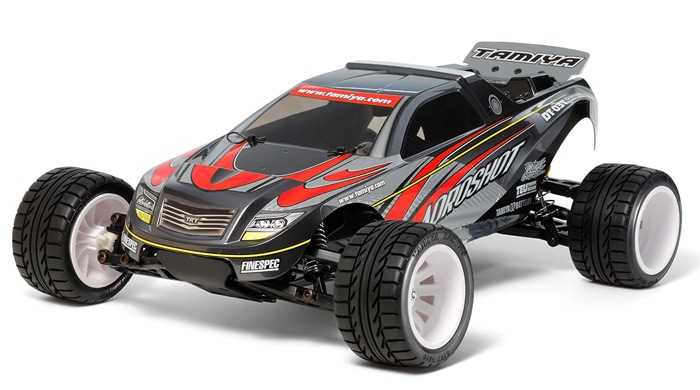

Tamiya DT-03T — Photo: Tamiya (opens in a new tab)

Kits on this chassis Built on the DT-03T

Each kit adds its own body, tires, pinion and motor. The chassis figures below apply to all of them.

Kit	Part no.	Maker page
Aqroshot	58610	tamiya.comPage (opens in a new tab)

Specifications

Last modified Sep 29, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Stadium trucks put wide truck tires and a truck body on a buggy-style chassis, and race on the same tracks as buggies. The maker does not name a class for this one, so this is the site's judgment from its design. Drive Only one axle is driven, the rear on almost every 2WD RC car. It is lighter and simpler, and it takes more throttle control on loose ground. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Class	Stadium truckour call
Drive	2WD
Build	Kit
Scale	1/10
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. Final drive How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.
Pinion	With each kit
Spur	Not published
Transmission & axle	Not published
Final drive	9.28:1 on 17TMaker's chart	Maker's chart
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter	With each kit
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	With each kit
Battery	With each kit
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly.
Wheelbase	287 mm11.3 inStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Not published means it exists but no source we could find prints it.
With each kit means each kit on this chassis brings its own, so enter yours in the gearing tool.
Maker’s chart is the ratios the maker prints for this chassis with the pinions it names.

Other versions of this chassis

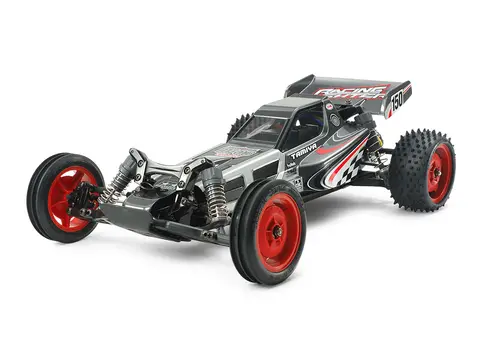

DT-03ChassisBuggy chassis · 2014

How these numbers were settled

Tamiya prints 'ギヤレシオ=9.28:1' on the Aqroshot 58610, the only kit on its DT-03T chassis list, and the manual fits the kit's 17T pinion (BB9 '17T Pinion gear', step 18, PDF p. 10); that matches the DT-03's 17T 9.28:1.

The manual names the spur BG4 without a tooth count and the gearbox stage is not published, so pinion x ratio is the only gearing fact.
Tamiya calls the Aqroshot a '2WD HIGH PERFORMANCE RACING TRUCK' on the DT-03T, rear motor and rear-wheel drive, 287mm wheelbase.

Sources

Every figure on this page traces to one of these; where they disagreed, the note above says which was used and why. Links open in a new tab.

Maker documents

Aqroshot instruction manual, DT-03T chassis (Tamiya PDF) (opens in a new tab)17T pinion BB9, step 18, PDF p. 10tamiya.comUsed forMain specs

Parts and electronics

Products 58610 (opens in a new tab)tamiya.comUsed forMain specsSize
Product info EX (opens in a new tab)tamiya.comUsed forMain specs
