Tamiya DT-02 Chassis

Name: Tamiya DT-02
Brand: Tamiya

1/10 scale · 2WD buggy chassis · sold as kits

Tamiya's DT-02 is a 1/10 two-wheel-drive buggy chassis with a bathtub frame and a sealed rear gearbox, sold as kits rather than on its own.

The current kits print a 15.77:1 overall ratio with the small motor and pinion that come in the box, on a 260 mm wheelbase. Tamiya does not publish the spur or the gearbox stage, so that total is the only gearing figure it gives. A larger motor and pinion change it, so enter the parts you run in the gearing tool to see the result.

Final drive: 15.77:1maker's figure
Wheelbase: 260mm
Introduced: 2005

Gearing Top speedsourced

The pinion, motor and tires come with each kit: enter yours in the gearing tool.

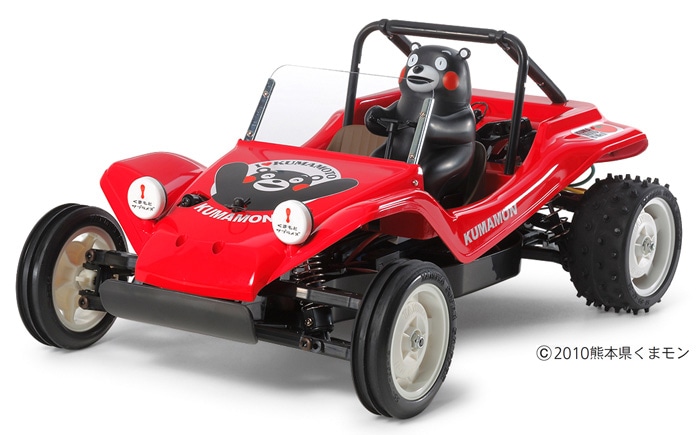

Tamiya DT-02 — Photo: Tamiya (opens in a new tab)

Kits on this chassis Built on the DT-02

Each kit adds its own body, tires, pinion and motor. The chassis figures below apply to all of them.

Kit	Part no.	Maker page
Holiday Buggy (2010)	58470	tamiya.comPage (opens in a new tab)
RC Buggy Kumamon Version	58615	tamiya.comPage (opens in a new tab)

Specifications

Last modified Sep 28, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Buggies are low, light off-road cars built for jumps and fast corners on dirt, clay or turf tracks. Drive Only one axle is driven, the rear on almost every 2WD RC car. It is lighter and simpler, and it takes more throttle control on loose ground. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Class	Buggy
Drive	2WD
Build	Kit
Scale	1/10
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. Final drive How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.
Pinion	With each kit
Spur	Not published
Transmission & axle	Not published
Final drive	15.77:1 (pinion not stated)Maker's chart	Maker's chart
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. Race tires wear down over a day, and a smaller tire gears the car shorter.
Tire diameter	With each kit
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	With each kit
Battery	With each kit
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly.
Wheelbase	260 mm10.2 inStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Not published means it exists but no source we could find prints it.
With each kit means each kit on this chassis brings its own, so enter yours in the gearing tool.
Maker’s chart is the ratios the maker prints for this chassis with the pinions it names.

How these numbers were settled

Tamiya prints 'ギヤレシオ=15.77:1' on both DT-02 kits still sold, the Holiday Buggy (2010) 58470 and the RC Buggy Kumamon Version 58615 (Japanese pages; the English 58470 page gives 'Gear Ratio=15.77:1').

Both come with a Type 380 motor and its pinion, and Tamiya names no pinion tooth count for that ratio: the Holiday Buggy manual shows the pinion on the motor and labels the spur GB4 in the gear bag without tooth counts (PDF pp. 6 and 23).
The spur and the gearbox stage are not published, so the printed total is the only gearing fact.
Earlier DT-02 kits with a Type 540 motor print 9.28:1 (Super Fighter G, Neo Falcon, DT-02 MS); they are special-sale kits from before 2015, and since no pinion is printed for either figure the two cannot be compared, so only the current kits' 15.77:1 is listed.
Rear motor, rear-wheel drive, 260mm wheelbase on both kits.
Tamiya's own DT-02 chassis list does not include The Grasshopper II (2017), which keeps its own sheet.
