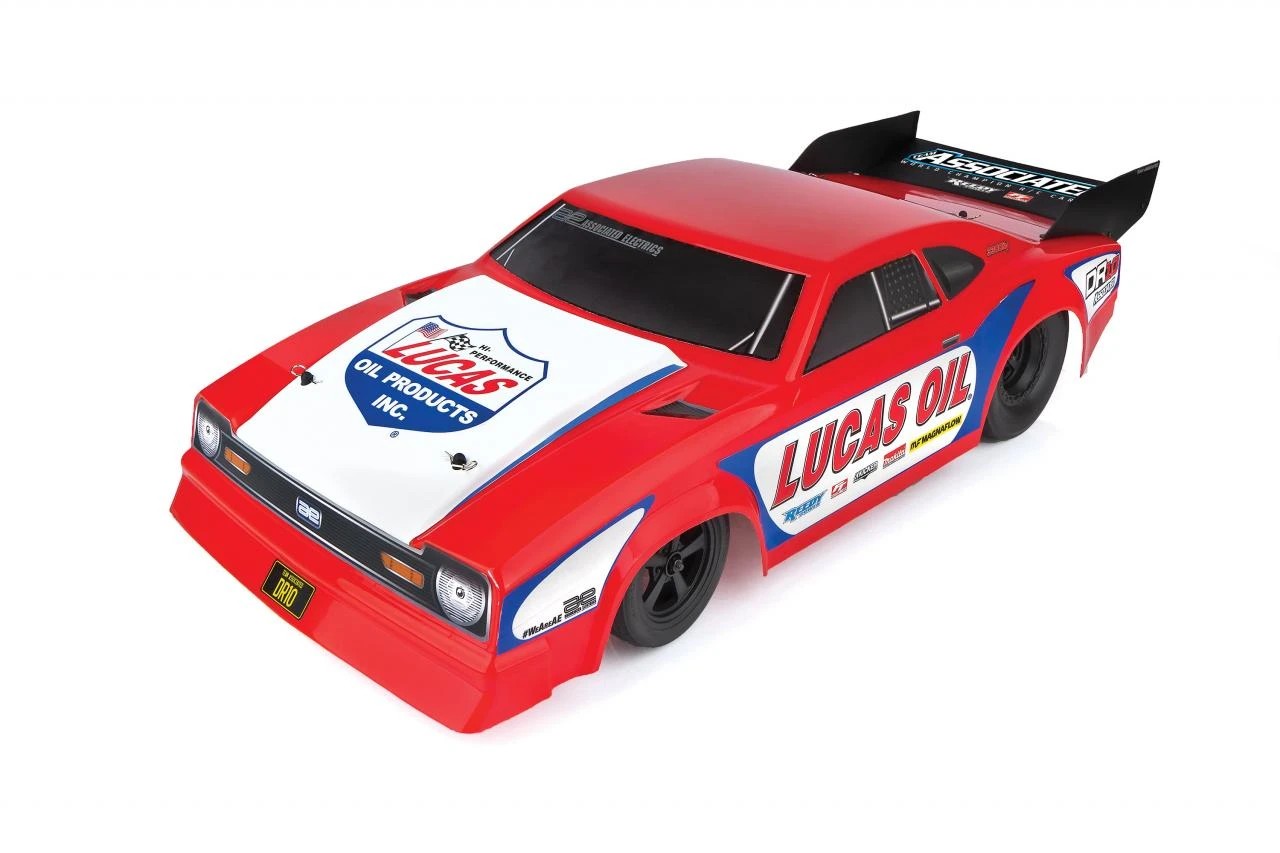

Team Associated DR10 Pro Reakt Lucas Oil RTR
1/10 scale · 70036
- Final drive
- 12.57:1
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 18TStock | Stock |
| Spur | 87TStock | Stock |
| Transmission & axle | 2.60:1Stock | Stock |
| Final drive | 12.57:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Wheel hex | 12 mmStock | Stock |
| Power | ||
| Motor | 3300KVStock | Stock |
| Motor shaft | 3.17 mmStock | Stock |
| Battery | Up to 3SLiPoStock | Stock |
| Stock motor | Reedy 540-SL4 Sensorless Brushless MotorStock | Stock |
| Stock ESC | Reedy SC600-BLStock | Stock |
| Battery connector | T-PlugStock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Chassis | ||
| Weight | 1.85 kg (4.1 lb)Stock | Stock |
| Length | 686 mm27 inStock | Stock |
| Width | 272 mm10.7 inStock | Stock |
| Wheelbase | 322 mm12.7 inStock | Stock |
| Shock oil, front | 30 wtStock | Stock |
| Shock oil, rear | 30 wtStock | Stock |
| Vehicle | ||
| Part number | 70036 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 18T | 48P | 3.175 mm | 1336 (opens in a new tab) |
| Spur | 87T | 48P | Not applicable | 9654 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft (3.17 mm on the stock motor). Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The RTR manual's gear chart (p. 23) lists the 18T pinion on the 87T spur for the stock 3300kV motor at 12.57:1, over a 2.60:1 transmission.
- The build steps fit the 18T 48P pinion (1336, p. 18) and the 87T 48P spur (9654, p. 13).
- The maker does not publish the diameter of the rear drag slicks or the front drag tires, so it is left blank.
- The manual suggests the 17T pinion (1335) as a starting point on 3S LiPo.
- The gear differential is packed with black grease (6588) rather than diff oil.
- The LiPo Combos (70036C with a 2S pack, 70036C3 with a 3S pack) are the same car with a battery and charger added.
Documents
- ManualDR10 Pro Mod drag car RTR instruction manual (Associated PDF) (opens in a new tab)Spur p. 13, pinion p. 18
- Gearing chartGear ratio chart, in the RTR manual (Associated PDF) (opens in a new tab)p. 23
- Parts listParts catalog, in the RTR manual (Associated PDF) (opens in a new tab)pp. 25-33
Sources
- dr10-pro-reakt-lucas-oil-rtr60years.associatedelectrics.com (opens in a new tab)
- Manual (PDF)img2.associatedelectrics.com (opens in a new tab)
- Manual (PDF)img2.associatedelectrics.com (opens in a new tab)
- Manual (PDF)img2.associatedelectrics.com (opens in a new tab)
- 907-ASC907-reedy_540-sl4_se…portal.associatedelectrics.com (opens in a new tab)
- 71072-ASC71072-dr10_rear_wh…portal.associatedelectrics.com (opens in a new tab)
- 1336-ASC1336-ft_aluminum_pi…portal.associatedelectrics.com (opens in a new tab)
- 9654-ASC9654-spur_gear_87t_…portal.associatedelectrics.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
