VehiclesTeam Associated DR10 Drag Race Car Team Kit

Team Associated DR10 Drag Race Car Team Kit

Name: Team Associated DR10 Drag Race Car Team Kit
Brand: Team Associated
SKU: 70027

1/10 scale · street · 70027

Specs

Drag car

Launch Top speed

sourced

Set a strip time and see the grip, current and power it takes.

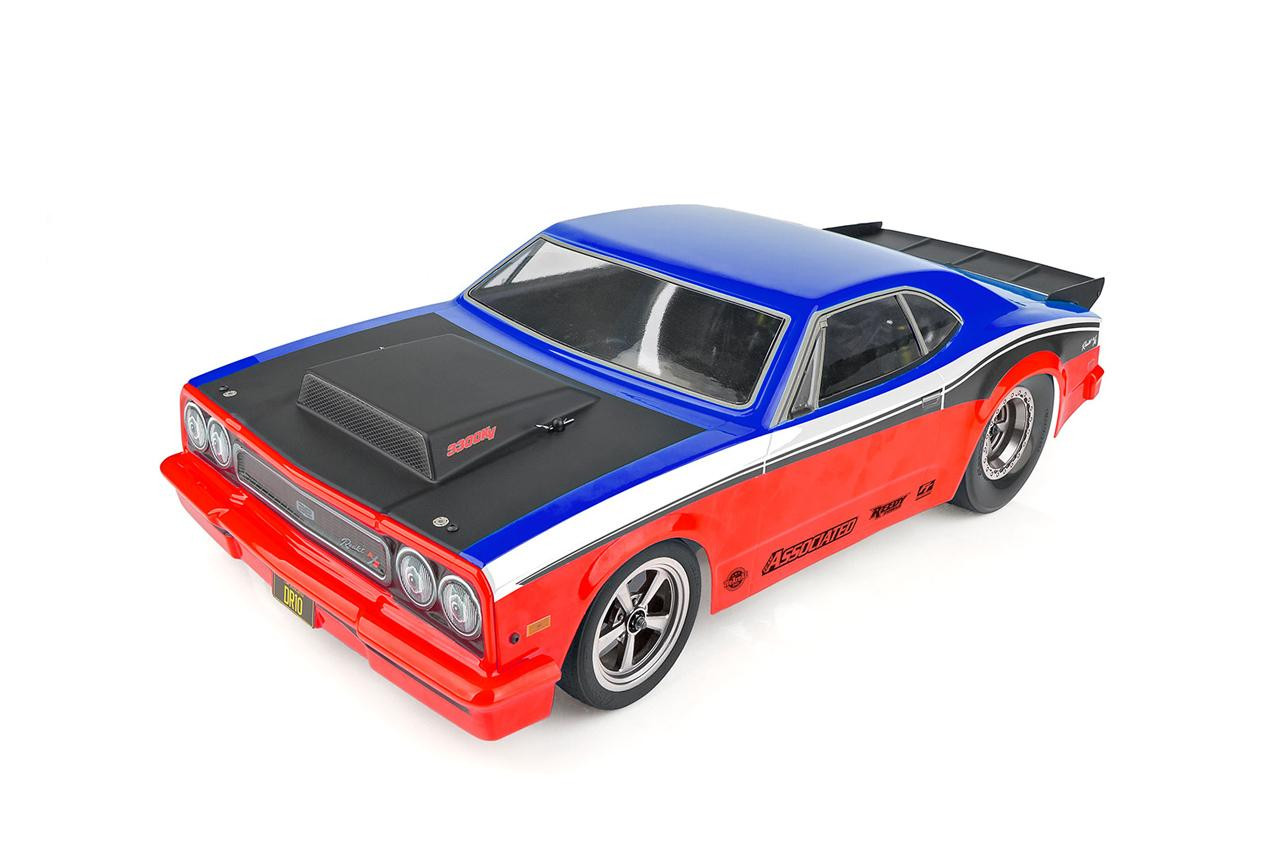

Team Associated DR10 Drag Race Car Team Kit — Photo: Team Associated (opens in a new tab)

Background

The DR10 Drag Race Car Team Kit is a 1/10 two-wheel-drive street assembly kit.¹ The rear-motor drag chassis combines a gear differential, an adjustable slipper and a wheelie bar.¹ It leaves the builder to select the required radio and power equipment for the finished car.¹ Check the exact kit contents before ordering the remaining parts, then match the motor gearing to the chosen tires and track.

Pros

The rear-motor drag chassis combines a gear differential, an adjustable slipper and a wheelie bar.¹

Cons

Required radio and power equipment must be purchased separately to finish the build.¹

Specifications

Last modified Oct 6, 2026

14 specifications across 5 groups, covering stock setup, dimensions and components.

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Street covers on-road bashers: speed-run, muscle and drag cars built for straight-line speed rather than racing. Drive Only one axle is driven, the rear on almost every 2WD RC car. It is lighter and simpler, and it takes more throttle control on loose ground. Power Sold without a motor, so you choose the motor, ESC and battery yourself. Rows that depend on the motor say so. Build A kit you build yourself from parts. Most kits come without motor, ESC, servo, radio and battery, and many without tires or a painted body. The manual lists what to add. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size. Part number The maker's product number for this exact version. A V2, a new color, or a kit instead of an RTR usually has a different number, and parts can differ between them. Check it against your box or receipt before ordering parts.
Class	Street
Drive	2WD
Power	Motor not included
Build	Kit
Scale	1/10
Part number	70027
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. It depends on the motor you fit, so the maker does not list one. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. Final drive How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.
Pinion	Not applicable
Spur	Not published
Transmission & axle	2.60:1Stock	Stock
Final drive	Not published
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. At high speed tires can balloon and grow, so the real gearing gets taller as the car goes faster.
Tire diameter	Not applicable
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	Not applicable
Battery	Not applicable
Performance
Theoretical top speed It needs a motor KV, and this vehicle comes without a motor. Fit one and the calculator works it out from the motor's KV and the gearing.
Theoretical top speed	Not applicable

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit.
Not published means it exists but no source we could find prints it.

About these specs

Motor, ESC, pinion and tires are purchased separately. Choose the spur and pinion for the motor class; no factory complete ratio is assumed.

Sources

3 source links for this model.

Maker documents

DR10 Drag Race Car Team Kit instruction manual (PDF) (opens in a new tab)img2.associatedelectrics.comPDFSupports 1 specificationUsed forMain specs
Blank setup sheet (PDF) (opens in a new tab)img2.associatedelectrics.comPDFSupporting reference

Parts and electronics

DR10 Drag Race Car Team Kit product page (opens in a new tab)60years.associatedelectrics.comPart pageSupports 1 specification · Background 1Team AssociatedUsed forMain specsBackground 1
