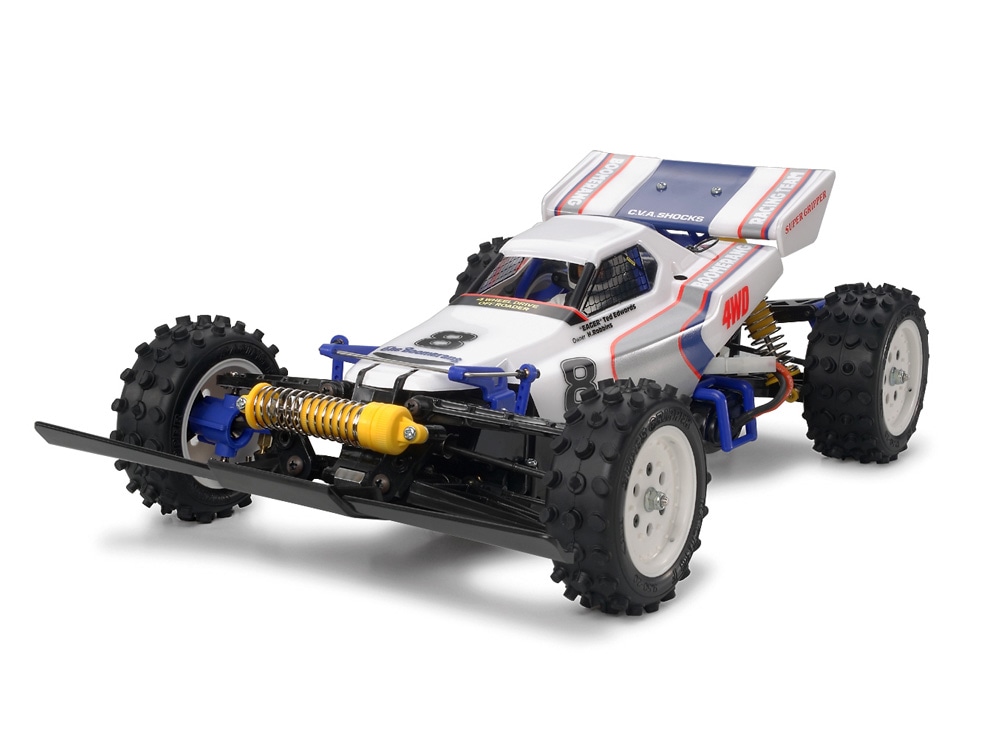

VehiclesTamiya The Boomerang (2008)
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not published | |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | 8.70:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 88mmStock | Stock |
| Rollout | 31.8mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | 58418 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
How these numbers were settled
Two kit ratios.
- Tamiya's Japanese spec gives 8.7:1 and 10.04:1; the kit contains both pinions and the builder picks one.
- The first-listed 8.7:1 is used here; set 10.04:1 in the calculator if the low-gear pinion is fitted.
- No tooth counts are published, so the pinion, spur and transmission and axle ratio are left blank as unknown, not as not applicable.
- Brushed RS-540 motor, ESC sold separately, shaft-drive 4WD.
- The tire diameter is the driven rear pair, 38/88mm; the front is 30/88mm, the same outside diameter.
- Unassembled kit with no battery; the motor is brushed, so KV and cell count do not apply.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
