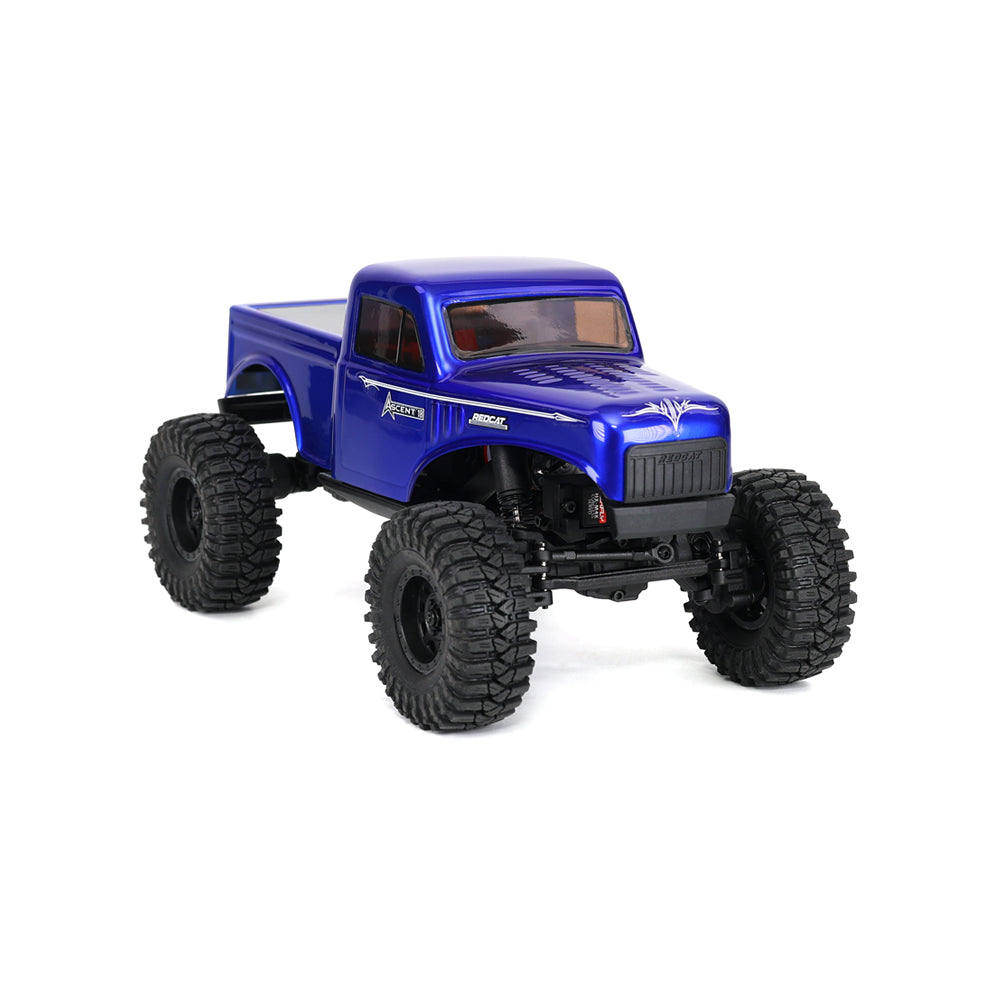

VehiclesRedcat Racing Ascent-18
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 12TStock | Stock |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | Not published | |
| Wheels & tires | ||
| Tire diameter | 60mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | RER43481 | |
| Scale | 1/18 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
How these numbers were settled
Brushed confirmed three ways: the product page's 'RC180 Brushed Motor', the manual's RER30068 Motor (60T), and the built-in ESC's 'Applicable Motors: 180 Brushed Motor'.
- Pinion 12T is read from the manual's motor and gearbox exploded view, which shows RER29171, catalogued as the 12T Ascent-18 motor pinion; the exploded view itself prints no tooth count.
- The transmission gears ship only as an un-itemised set, so the spur and the internal ratio are unknown.
- The axle side is published (20/10 diff, 23/14 portal) but cannot produce an internal ratio on its own.
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
