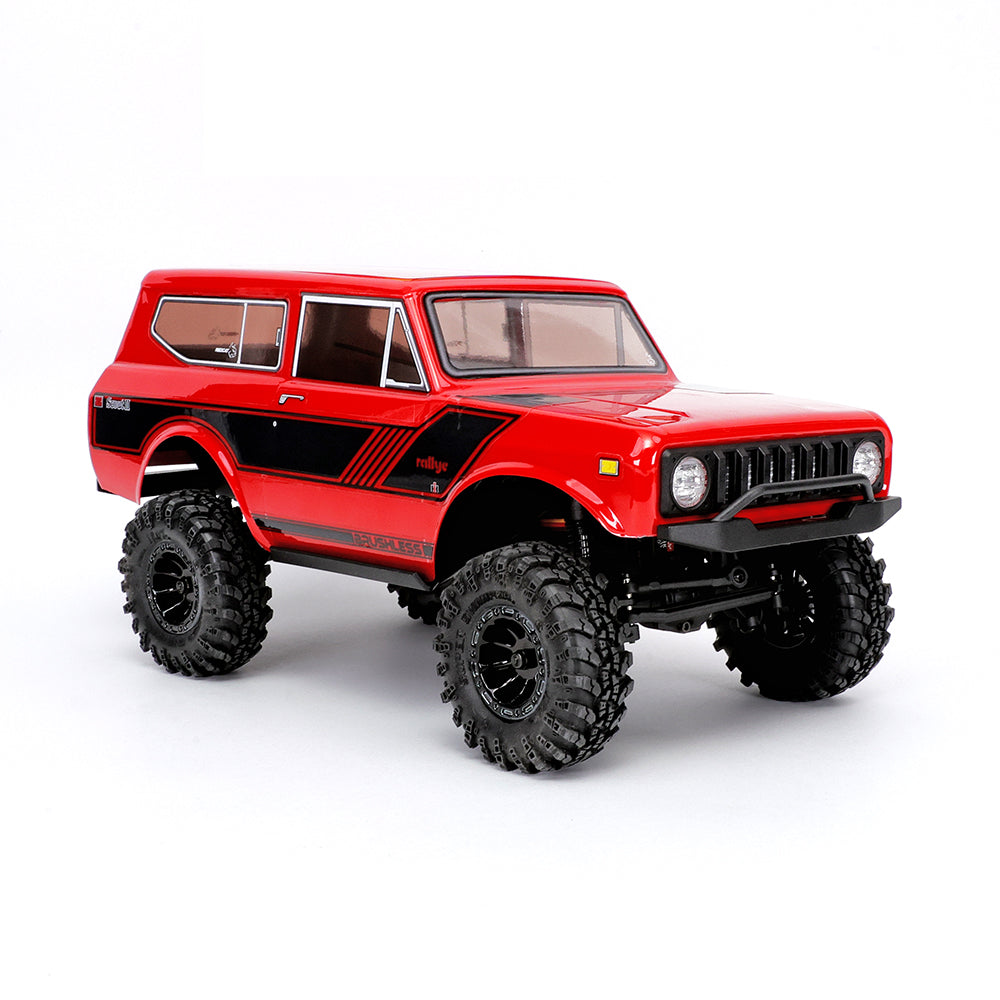

Redcat Racing Ascent-18 International Scout II Brushless
1/18 scale · scale crawler · RER39152
- Final drive
- 67.44:1
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 11TStock | Stock |
| Spur | 38TStock | Stock |
| Transmission & axle | 19.52:1Derived | Derived |
| Final drive | 67.44:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Power | ||
| Motor | 3450KVStock | Stock |
| Motor shaft | Not published | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Vehicle | ||
| Part number | RER39152 | |
| Scale | 1/18 | |
| Class | Scale crawler | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 11T | Not published | Not published | Not published |
| Spur | 38T | Not published | Not applicable | Not published |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft.
How these numbers were settled
Same driveline as the Ascent-18 Brushless.
- The manual's spare-parts page lists RER39670 'Low Range Transmission Gears 20.52:1' (11T pinion, 38T/16T drive gear, 39T/16T idler, 39T output), the 10T diff pinion and 20T ring gears, and the 14T and 23T portal gears, and Redcat's parts pages list each of them as fitting the Ascent 18 Scout II Brushless.
- The 11T pinion drives the 38T gear, so the ratio after the spur is 39/16 x 39/16 x 20/10 x 23/14 = 19.52 and the total is 38/11 x 19.52 = 67.44, which matches Redcat's printed 20.52:1 transmission times the 2.0 axle and 1.64 portal stages.
- The tire diameter is left blank: the Interco Super Swamper tires (RER37867, RER39775) have no published size, and the '25mm' on the product page is the wheel, not the tire.
- Motor is the FS-MD1212 3450KV outrunner; the built-in ESC is rated for 2S LiPo only.
- RER39152 and RER39153 are colour versions.
Documents
- ManualAscent-18 Scout II Brushless user manual (PDF) (opens in a new tab)Spare parts PDF p. 12; motor p. 14
Sources
- redcat-ascent-18-internatio…redcatracing.com (opens in a new tab)
- viewdrive.google.com (opens in a new tab)
- rer39670redcatracing.com (opens in a new tab)
- rer29169redcatracing.com (opens in a new tab)
- rer29170redcatracing.com (opens in a new tab)
- rer29265redcatracing.com (opens in a new tab)
- rer29266redcatracing.com (opens in a new tab)
- p1648109amainhobbies.com (opens in a new tab)
- rer39462redcatracing.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
