VehiclesKyosho USA-1 Nitro Readyset

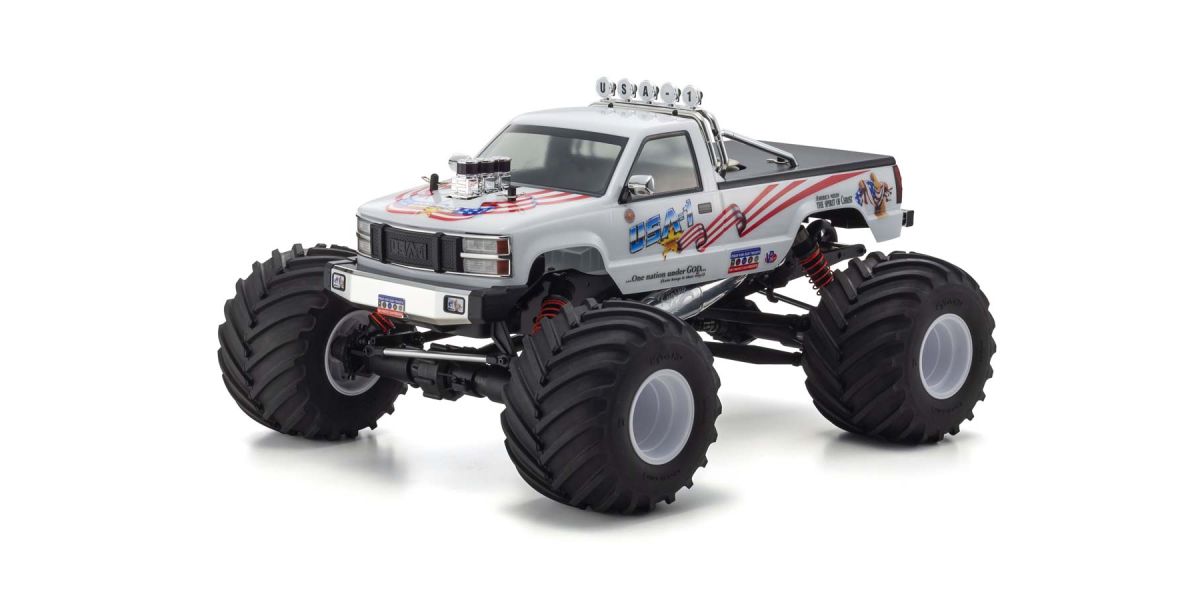

Kyosho USA-1 Nitro Readyset
1/8 scale · monster truck · 33155D
- Final drive
- 15.60:1
- Tire
- 164mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not published | |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | 15.60:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 164mmStock | Stock |
| Rollout | 33.0mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Chassis | ||
| Weight | 4.99 kg (11 lb)Stock | Stock |
| Length | 570 mm22.4 inStock | Stock |
| Width | 450 mm17.7 inStock | Stock |
| Height | 281 mm11.1 inStock | Stock |
| Wheelbase | 360 mm14.2 inStock | Stock |
| Diff oil, front | 3KStock | Stock |
| Diff oil, rear | 3KStock | Stock |
| Vehicle | ||
| Part number | 33155D | |
| Scale | 1/8 | |
| Class | Monster truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | Not published | Not published | Not applicable | MA011E (opens in a new tab) |
| Spur | Not published | Not published | Not applicable | MA008 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The nitro USA-1 (2024) runs a KE25SP2 engine through a 3-speed automatic transmission, and Kyosho's Technical Data gives 'Gear Ratio 25.7/19.8/15.6:1'.
- The top-gear total, 15.6:1, is shown here; first gear is 25.7:1 and second 19.8:1.
- The tire is 'φ164×104mm'.
- Kyosho's parts listing for this SKU names the 3-speed clutch bells (MA011E), the 3-speed spur gear (MA008), an 11T sprocket (MA010B) and the 43T axle ring gear (IF106), but not the clutch bell or spur tooth counts, so the pinion, spur and ratio after the spur are left blank.
- The maintenance manual fills the front and rear diffs with #3000 silicone oil.
- The electric USA-1 VE is a separate sheet.
Documents
- ManualInstruction manual, USA-1 Nitro (Kyosho PDF) (opens in a new tab)
- ManualMaintenance manual, USA-1 Nitro (Kyosho PDF) (opens in a new tab)Diff oil p. 5
- Exploded viewExploded view, USA-1 Nitro (Kyosho PDF) (opens in a new tab)
- Parts listSpare and option parts list, USA-1 Nitro (Kyosho PDF) (opens in a new tab)
Sources
- 33155drc.kyosho.com (opens in a new tab)
- 1rc.kyosho.com (opens in a new tab)
- Manual (PDF)kyosho.com (opens in a new tab)
- Manual (PDF)kyosho.com (opens in a new tab)
- ma011erc.kyosho.com (opens in a new tab)
- ma008rc.kyosho.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
