Kyosho KB10W Chassis

Name: Kyosho KB10W
Brand: Kyosho

1/10 scale · 4WD monster truck chassis · sold as kits

Kyosho's KB10W is a 1/10 four-wheel-drive, shaft-driven monster truck chassis on a 295 mm wheelbase, sold as the Mad Wagon in kit and readyset form.

Each shares the 46T spur and a 4.30:1 bevel and ring gear stage in each axle, with a slipper clutch on the spur and no center differential. The pinion, motor and tires come with each box rather than with the chassis, so enter the pinion you run in the gearing tool and check the mesh after any change.

Transmission & axle: 4.30:1
Spur: 46T
Wheelbase: 295mm
Introduced: 2022

Gearing Top speedsourced

The pinion, motor and tires come with each kit: enter yours in the gearing tool.

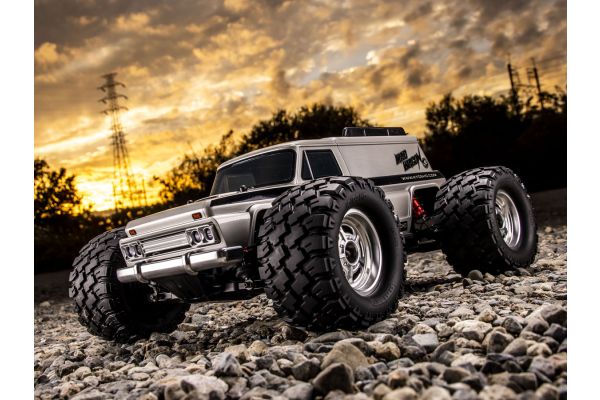

Kyosho KB10W — Photo: Kyosho (opens in a new tab)

Kits on this chassis Built on the KB10W

Each kit adds its own body, tires, pinion and motor. The chassis figures below apply to all of them.

Kit	Part no.	Maker page
Mad Wagon Kit	34702	rc.kyosho.comPage (opens in a new tab)
Mad Wagon VE Color Type1	34701T1	rc.kyosho.comPage (opens in a new tab)

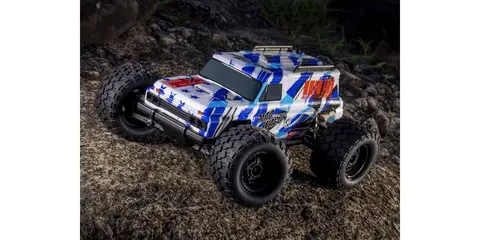

Mad Wagon VE Color Type2	34701T2	rc.kyosho.comPage (opens in a new tab)

Specifications

Last modified Sep 28, 2026

Spec	Value	Basis
Vehicle
Class The kind of vehicle the maker sells it as. It sets what the car is built to do and which cars it is fair to compare it with. Monster trucks have tall tires and long suspension travel, built for jumping and rough ground rather than a race track. Drive All four wheels are driven. That gives more grip under power, especially on loose ground. The cost is more parts to maintain. Scale The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement. A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.
Class	Monster truck
Drive	4WD
Scale	1/10
Drivetrain
Pinion The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite. On a chassis sold as kits, each kit brings its own. Spur The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter. Pinion and spur must have the same pitch, or tooth size, to mesh. The Gearing parts table below shows this car's pitch and part numbers. Transmission & axle Every reduction after the spur, multiplied together: transmission, differentials and axle gears. It is fixed by the design; the gearing you change is the pinion and spur. This one is worked out from the tooth counts the maker publishes. Final drive How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed. The range comes from the maker's gearing chart for the pinions it lists.
Pinion	With each kit
Spur	46TStock	Stock
Transmission & axle	4.30:1Derived	Derived
Final drive	13.19 to 16.48:1 on 15T to 12T pinionsMaker's chart	Maker's chart
Wheels & tires
Tire diameter The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller. At high speed tires can balloon and grow, so the real gearing gets taller as the car goes faster.
Tire diameter	With each kit
Power
Motor Motor KV is the RPM a motor turns per volt with no load. This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit. Battery The highest LiPo cell count the maker rates the electronics for. This vehicle comes without electronics, so it depends on the ESC and motor you fit.
Motor	With each kit
Battery	With each kit
Size & weight
Wheelbase The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly.
Wheelbase	295 mm11.6 inStock	Stock

How to read these figures

Stock is as the vehicle ships.
Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart.
Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how.
With each kit means each kit on this chassis brings its own, so enter yours in the gearing tool.
Maker’s chart is the ratios the maker prints for this chassis with the pinions it names.

Other versions of this chassis

KB10LChassisLong-wheelbase truck version · 2023

Gearing parts

Pinion and spur parts for the Kyosho KB10W: fitted, and optional gearing supplied in the box
Component	Teeth	Pitch	Bore	Part number
Fitted at the factory
Spur	46T	Mod 1	Not applicable	KB031-46 (opens in a new tab)

About teeth, pitch and bore

Tooth counts are the ones in the specifications above.
Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close.
Bore is the pinion’s hole, listed separately from the motor shaft.
Linked part numbers go to the maker’s or official distributor’s page for that part.

How these numbers were settled

The KB10W is sold as the Mad Wagon, as a readyset and as a kit, and the pages print 'Gear Ratio 15.22:1' and a 295mm wheelbase.

Kyosho's KB10 spares are the KB031-46 'Spur Gear 46T(M1.0/KB10)', the KB032-10 'Sintered Bevel Gear (10T/KB10)' and the KB033-43 'Sintered Ring Gear (43T/KB10)', so the ratio after the spur works out at 43 / 10 = 4.3, and with the readyset's standard 13T pinion 46 / 13 x 4.3 = 15.22, matching Kyosho's figure.
The spur carries a slipper clutch and there is no center differential.
The pinion, motor and tires come with each box, so enter yours in the gearing tool.
The long-wheelbase KB10L shares the spur and axle gears and adds a center differential.
The manual lists 12T to 15T pinions for the stock spur; the ratios 16.48:1 to 13.19:1 are worked out from them with the figures above.
