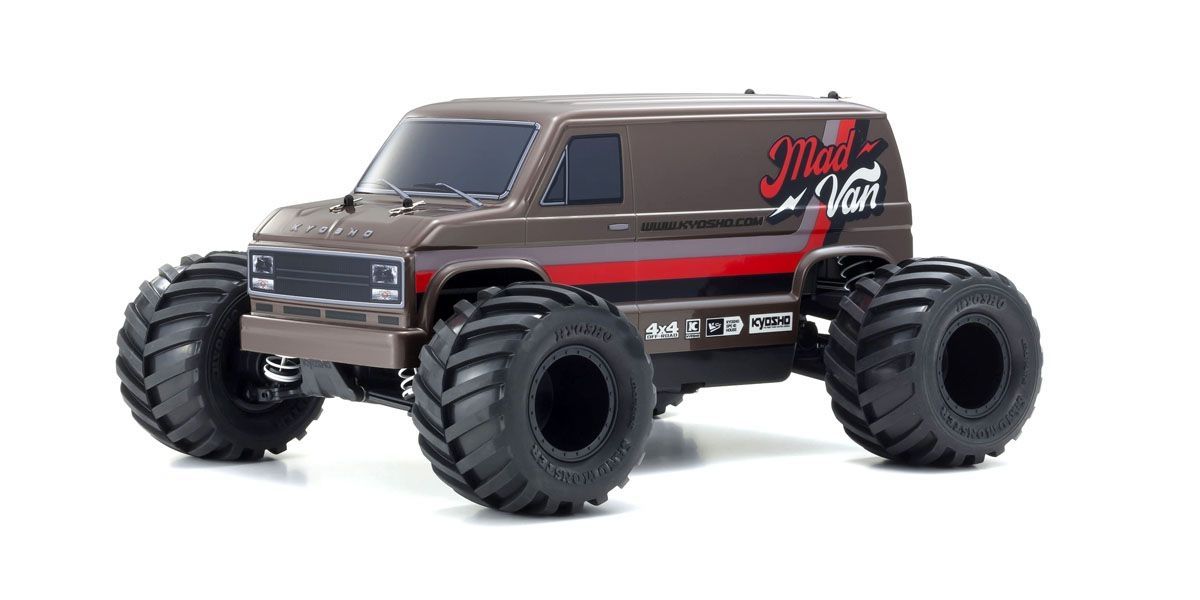

VehiclesKyosho Fazer Mk2 FZ02L-BT Mad Van
Kyosho Fazer Mk2 FZ02L-BT Mad Van
1/10 scale · 34412T1
- Final drive
- 11.69:1
- Tire
- 110mm
Open in Top Speedsourced
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 20TStock | Stock |
| Spur | 76TStock | Stock |
| Transmission & axle | 3.08:1Stock | Stock |
| Spur ÷ pinion | 3.800:1Calculated | Calculated |
| Final drive | 11.69:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 110mmStock | Stock |
| Rollout | 29.6mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | 34412T1 | |
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
How these numbers were settled
The big-tire FZ02L-BT variant of the Fazer Mk2, a different chassis spec from the FZ02 and geared very differently: Kyosho's Technical Data gives 'Gear Ratio 11.69:1' against the FZ02's 6.54, with 'Tires (F/R) 110x70mm'.
- Kyosho prints 'Gear Ratio 11.69:1 ... 76T spur and 20T pinion', giving a ratio after the spur of 3.076, which matches the 3.077 implied by the FZ02L's own published pair.
- The motor is the brushed 14-turn G14L, so there is no KV rating and no speed check is possible.
- The separate MAD VAN VE is a different, brushless product.
Sources
- 34412t1rc.kyosho.com (opens in a new tab)
- 1-10-scale-radio-controlled…kyoshoamerica.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
