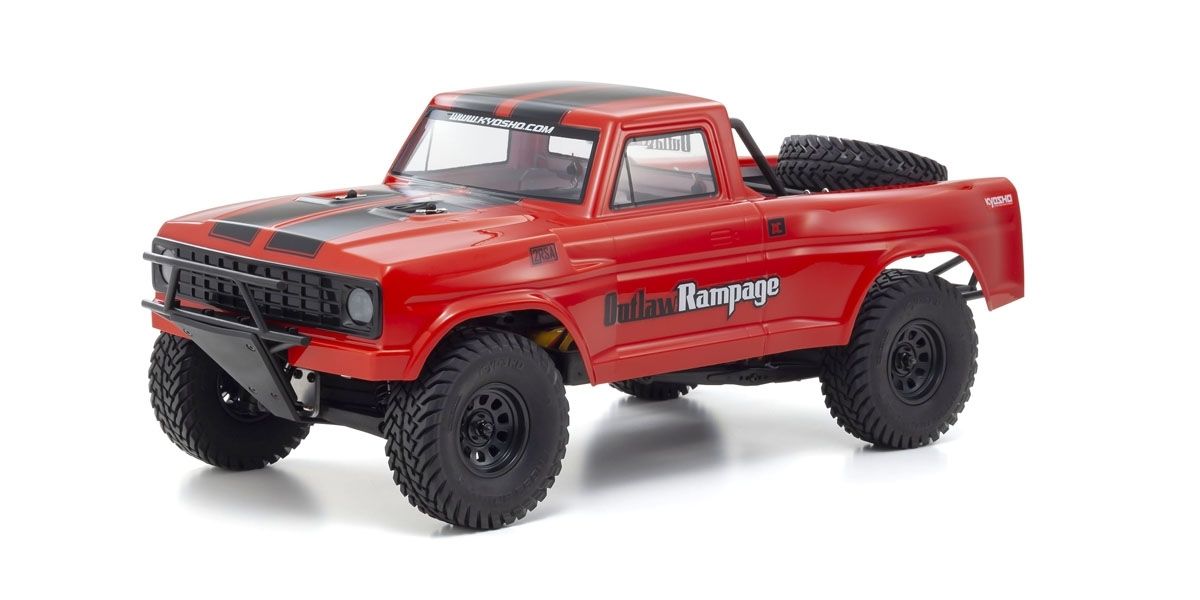

Kyosho Outlaw Rampage PRO Readyset
1/10 scale · short course · 34363T1
- Final drive
- 12.65:1
- Tire
- 108mm
No published motor KV: compare gearing by rollout.
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Vehicle | ||
| Class | Short course | |
| Scale | 1/10 | |
| Part number | 34363T1 | |
| Drivetrain | ||
| Pinion | 16TStock | Stock |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | 12.65:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 108mmStock | Stock |
| Rollout | 26.8mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Not published | |
| Stock motor | G15Stock | Stock |
| Stock ESC | TEAM ORION VORTEX WP Brush 45AStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Chassis | ||
| Weight | 2.4 kg (5.3 lb)Stock | Stock |
| Length | 561 mm22.1 inStock | Stock |
| Width | 262 mm10.3 inStock | Stock |
| Height | 231 mm9.1 inStock | Stock |
| Wheelbase | 335 mm13.2 inStock | Stock |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 16T | 48P | Not published | OL022 (opens in a new tab) |
| Spur | Not published | 48P | Not applicable | OL009 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
A 2WD trophy-truck style Readyset with a roll cage body.
- Kyosho's Technical Data gives 'Gear Ratio 12.65 : 1' and 'Tires (F/R interchangeable) φ108×38mm'.
- The fitted pinion is OL022 'Pinion Gear 16T-48 Pitch', and the product page says the spur gear is 48-pitch; the manual (p. 36) labels the spur as part of the OL009 gear set, but Kyosho does not print its tooth count, so the spur and the ratio after the spur are left blank.
- The motor is the brushed G15 (15-turn, 540 size), so there is no KV rating.
- The TEAM ORION VORTEX WP Brush 45A ESC has a LiPo setting, but Kyosho does not print its cell limit.
- The earlier Outlaw Rampage Readyset (34361T1, 2017) has the same 12.65:1 gearing, tire, motor and ESC and came with a 7.2V NiMH pack and charger; its manual covers this truck's drivetrain.
- The 34363T2 is the same truck in another colour.
Documents
- ManualInstruction manual, Outlaw Rampage 34361T1/T2 (Kyosho PDF) (opens in a new tab)Gearbox and spur p. 36
- Exploded viewExploded view, Outlaw Rampage 34361T1/T2 (Kyosho PDF) (opens in a new tab)
- Parts listSpare and option parts list, Outlaw Rampage 34361T1/T2 (Kyosho PDF) (opens in a new tab)OL022 p. 1
