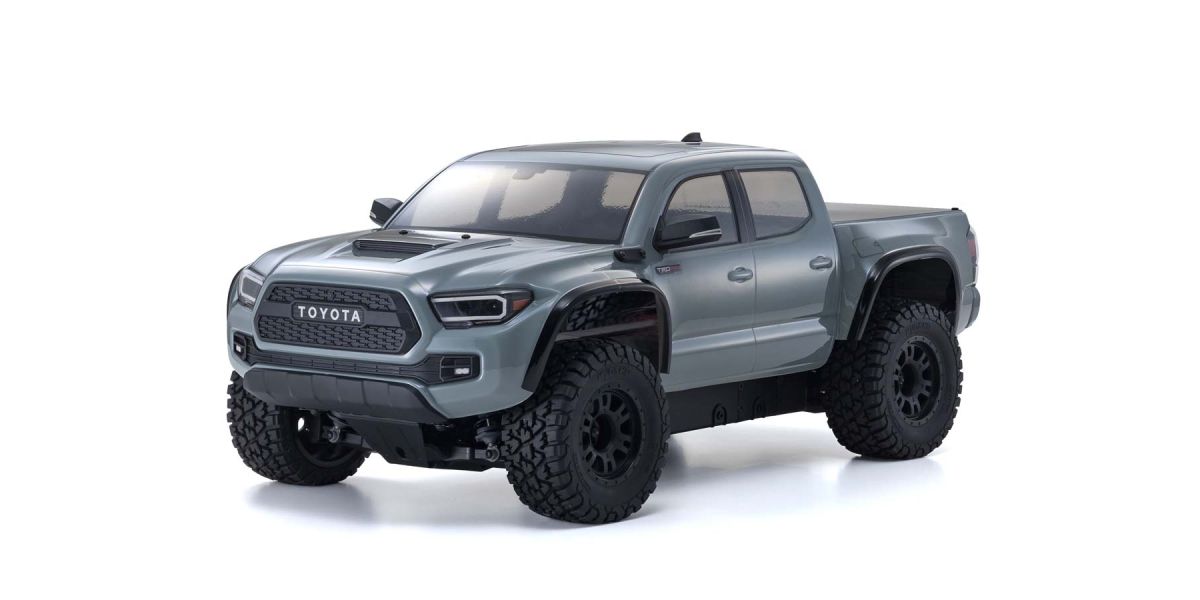

Kyosho KB10L Chassis

All four wheels are driven. That gives more grip under power, especially on loose ground.

• The cost is more parts to maintain.

The maker's nominal size compared with a full-size vehicle. It works more as a class label than a measurement.

• A 1/10 monster truck is far bigger than a 1/10 touring car, so compare length and weight for real size.

The small gear on the motor shaft. Fewer teeth gear the car shorter: quicker acceleration, lower top speed and a cooler motor. More teeth do the opposite.

• On a chassis sold as kits, each kit brings its own.

The large gear the pinion drives. A bigger spur with the same pinion gears the car shorter.

• Pinion and spur must have the same pitch, or tooth size, to mesh.
• The Gearing parts table below shows this car's pitch and part numbers.
• On this car the spur is mounted on the center differential.

Every reduction after the spur, multiplied together: transmission, differentials and axle gears.

• It is fixed by the design; the gearing you change is the pinion and spur.
• This one is worked out from the tooth counts the maker publishes.

How many times the motor turns for one turn of the wheels. A higher number is shorter gearing: more acceleration and pulling power, less top speed.

• The range comes from the maker's gearing chart for the pinions it lists.

Silicone oil sealed inside the differential. A diff lets the wheels on one axle turn at different speeds in a corner; thicker oil makes it act more like a solid axle.

• At the front, thicker oil keeps both front wheels pulling out of a corner but makes the car turn in less willingly; thinner oil steers more easily.
• It is graded in cSt (centistokes), a measure of thickness that means the same across brands. K means thousands, so 5K is 5,000 cSt.

The center diff splits power between front and rear. Thicker oil there sends more drive to the end that has grip and helps acceleration; thinner oil lets the car steer more easily off the throttle.

The rear diff mostly shapes drive out of corners.

• Thicker oil there puts power down more evenly on loose or slippery ground; thinner oil lets the car rotate more easily through a corner.
• Front and rear diffs run the same oil here (5K).

The outside diameter of the mounted tire, tread to tread. A taller tire covers more ground each turn, which gears the car taller.

• At high speed tires can balloon and grow, so the real gearing gets taller as the car goes faster.

Motor KV is the RPM a motor turns per volt with no load.

• This vehicle comes without a motor, so there is no stock KV; it depends on the one you fit.

The highest LiPo cell count the maker rates the electronics for.

• This vehicle comes without electronics, so it depends on the ESC and motor you fit.

The distance between the front and rear axle centers. A longer wheelbase is steadier at speed and over bumps; a shorter one turns more tightly.
