Kyosho Inferno GT2 VE Race Spec

1/8 scale · touring and drift body · 34117

Top speed: 41mphcalculated
Final drive: 9.51:1
Tire: 97mm

Open in Top Speedsourced

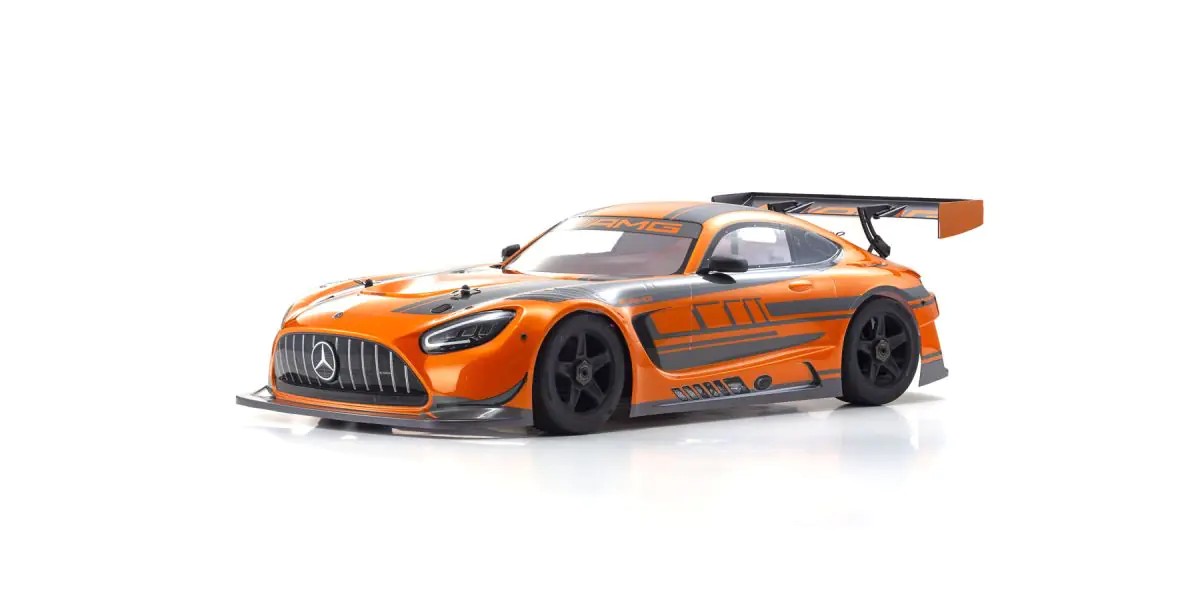

Kyosho Inferno GT2 VE Race Spec — Photo: Kyosho

Specifications

Last modified Sep 25, 2026

Spec	Value	Basis
Drivetrain
Pinion	16TStock	Stock
Spur	46TStock	Stock
Transmission & axle	3.31:1Derived	Derived
Spur ÷ pinion	2.875:1Calculated	Calculated
Final drive	9.51:1Stock	Stock
Wheels & tires
Tire diameter	97mmStock	Stock
Rollout	32.0mm per motor turnCalculated	Calculated
Power
Motor	2300KVStock	Stock
Motor shaft	5 mmStock	Stock
Battery	Up to 4SLiPoStock	Stock
Stock motor	KYOSHO SPEED HOUSE TORX8+Stock	Stock
Stock ESC	KYOSHO SPEED HOUSE BRAINZ 8Stock	Stock
Performance
Theoretical top speed	40.7mph on 4SCalculated	Calculated
Motor speed	34,040rpm, no loadCalculated	Calculated
Chassis
Weight	3.82 kg (8.4 lb)Stock	Stock
Length	660 mm26 inStock	Stock
Width	310 mm12.2 inStock	Stock
Height	180 mm7.1 inStock	Stock
Wheelbase	360 mm14.2 inStock	Stock
Diff oil, front	100KStock	Stock
Diff oil, center	4KStock	Stock
Diff oil, rear	4KStock	Stock
Vehicle
Part number	34117
Scale	1/8
Class	Touring and drift body

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.

Gearing parts

Pinion and spur parts for the Kyosho Inferno GT2 VE Race Spec: fitted, and optional gearing supplied in the box
Component	Teeth	Pitch	Bore	Part number
Fitted at the factory
Pinion	16T	Mod 1	5 mm	PNGS1016 (opens in a new tab)
Spur	46T	Not published	Not applicable	IF148B (opens in a new tab)

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft (5 mm on the stock motor). Linked part numbers go to the maker's or official distributor's page for that part.

How these numbers were settled

Electric 1/8 GT car with the 2020 Mercedes-AMG GT3 body (November 2024).

Kyosho's Technical Data gives 'Gear Ratio 9.51：1', 'Tire (F/R) Φ97mm ×48mm' and a TORX8+ motor rated kv2300.
The spare parts list names the PNGS1016 steel pinion (16T/1.0M/φ5.0), the IF148B 46T spur, and the IF106 43T bevel gear with the IF21 13T drive bevel.
Those tooth counts give 46/16 x 43/13 = 9.51, matching the printed total, so the ratio after the spur is 3.308.
Kyosho's TORX 8+ page (70602) gives 2300KV and a 5.0mm shaft, and the BRAINZ 8 ESC (82247) takes 2 to 4 cell LiPo; the product page says the car takes up to a 4-cell pack as two 2-cell packs.
Kyosho publishes no top speed; 2300KV on 4 cells works out to about 41 mph in theory with this ratio and tire.
The maintenance manual (p. 5 and 6) fills the front diff with No.SIL100000 and the center and rear with No.SIL4000 silicone oil.
The earlier GT2 VE versions (34102 with a Vortex 8 motor, 34107 with a TORX8) print 8.95:1 and are not covered here.

Documents

ManualInstruction manual (Kyosho PDF) (opens in a new tab)
ManualMaintenance manual (Kyosho PDF) (opens in a new tab)
Exploded viewExploded view (Kyosho PDF) (opens in a new tab)
Parts listSpare and option parts list (Kyosho PDF) (opens in a new tab)

Sources

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
