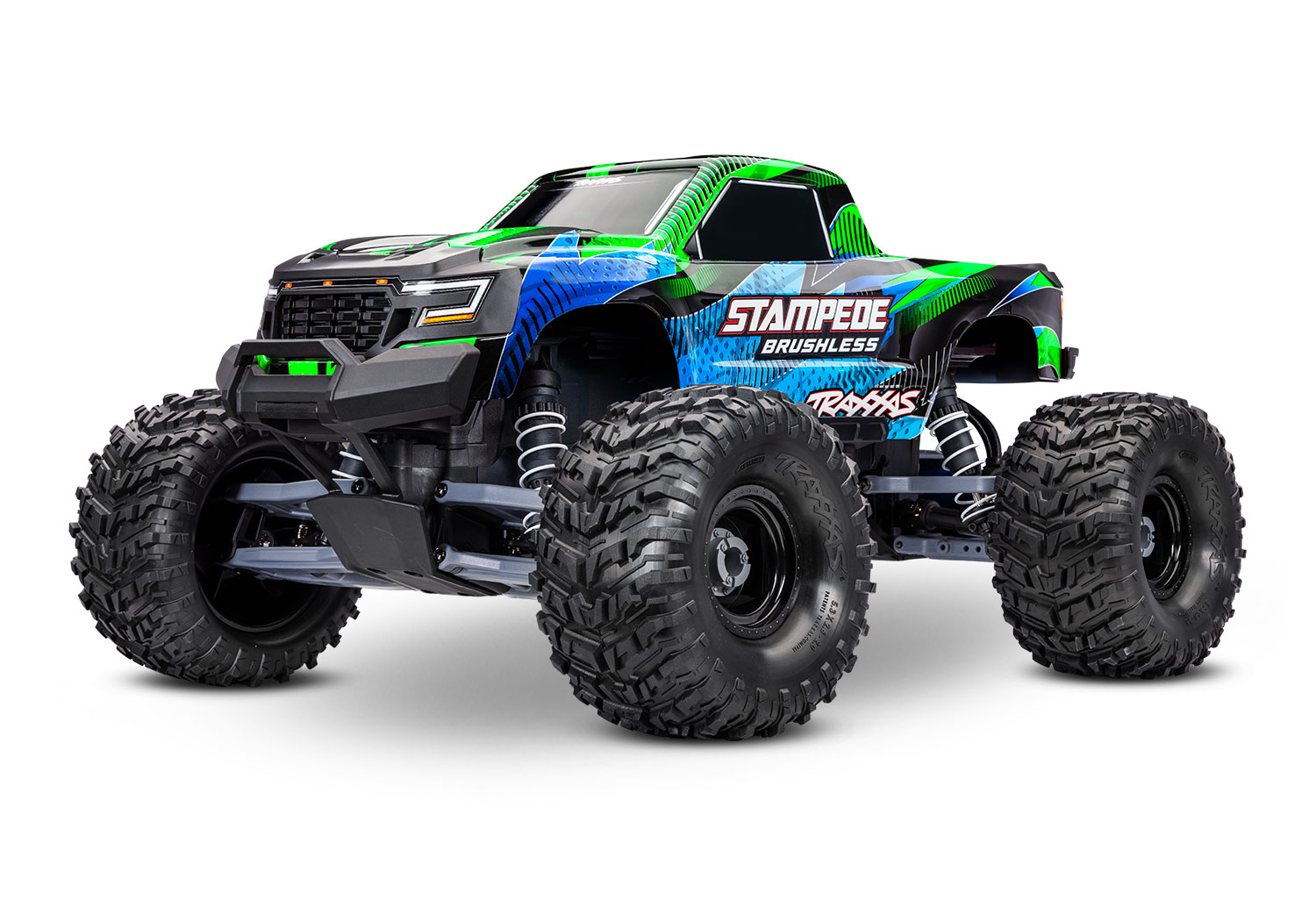

Traxxas Stampede 2WD Brushless
1/10 scale · monster truck · 136454-4
- Final drive
- 9.52:1
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 16TStock | Stock |
| Spur | 56TStock | Stock |
| Transmission & axle | 2.72:1Stock | Stock |
| Final drive | 9.52:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Wheel hex | 12 mmStock | Stock |
| Power | ||
| Motor | 3200KVStock | Stock |
| Motor shaft | 5 mmStock | Stock |
| Battery | Up to 3SLiPoStock | Stock |
| Stock motor | Velineon V3200Stock | Stock |
| Stock ESC | Velineon VX3Stock | Stock |
| Battery connector | Traxxas High-CurrentStock | Stock |
| Battery space | 166 × 48 × 28 mmmax pack, L × W × HStock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Advertised top speed | 50mphMaker's claim | Maker's claim |
| Chassis | ||
| Weight | 2.76 kg (6.1 lb)Stock | Stock |
| Length | 515 mm20.3 inStock | Stock |
| Width | 352 mm13.9 inStock | Stock |
| Height | 212 mm8.3 inStock | Stock |
| Wheelbase | 296 mm11.7 inStock | Stock |
| Shock oil, front | 20 wtStock | Stock |
| Shock oil, rear | 20 wtStock | Stock |
| Vehicle | ||
| Part number | 136454-4 | |
| Scale | 1/10 | |
| Class | Monster truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 16T | Not published | 5 mm | 5652 (opens in a new tab) |
| Spur | 56T | Not published | Not applicable | 9456 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft (5 mm on the stock motor). Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The product page prints 'Gear Ratio (Internal): 9.52:1', which is the complete final drive.
- The parts list sets the 16-T pinion (5652) and the 56-tooth spur (9456) in regular type as supplied, and the owner's manual gear chart marks 16/56 as the out-of-box setup.
- The manual's formula is spur / pinion x 2.72, so 56/16 x 2.72 = 9.52; the chart cell reads 9.54.
- The product page quotes 50+ mph on 3S with no gearing change.
- Traxxas does not publish the diameter of the stock Talon MXT tires, so the tire size is left blank.
- The parts list calls both gears 0.8 metric pitch and compatible with 32-pitch, so no pitch is shown.
Documents
- ManualOwner's manual, model 136454-4 (Traxxas PDF) (opens in a new tab)Gearing p. 23
- Gearing chartGearing compatibility chart, owner's manual (Traxxas PDF) (opens in a new tab)p. 23
- Parts listParts list, 136454-4 (Traxxas PDF) (opens in a new tab)Spur and pinion gears
- Exploded viewExploded view, transmission assembly (Traxxas JPG) (opens in a new tab)
Sources
- stampede-2wd-brushless-1364…traxxas.com (opens in a new tab)
- Manual (PDF)traxxas.com (opens in a new tab)
- Manual (PDF)traxxas.com (opens in a new tab)
- 5652-16-tooth-pinion-gear-3…traxxas.com (opens in a new tab)
- 9456-56-tooth-spur-gear-32-…traxxas.com (opens in a new tab)
- 13670-28-black-monster-truc…traxxas.com (opens in a new tab)
- 3442-velineon-v3200-brushle…traxxas.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
