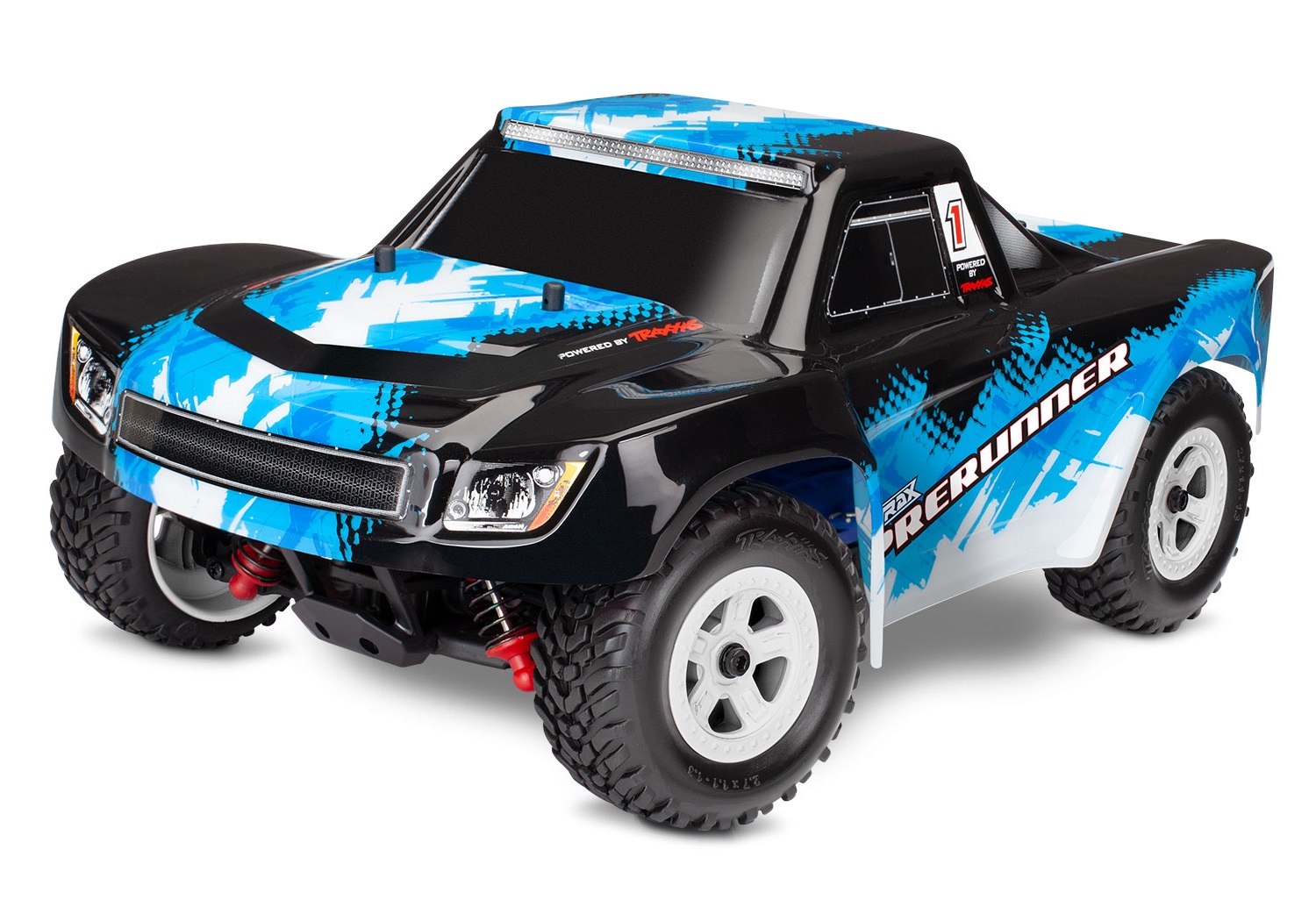

Traxxas LaTrax Desert Prerunner
1/18 scale · short course truck · 76064-5
- Final drive
- 16.94:1
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 9TStock | Stock |
| Spur | 61TStock | Stock |
| Transmission & axle | 2.50:1Stock | Stock |
| Final drive | 16.94:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Wheel hex | 12 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Not published | |
| Stock motor | 370 brushedStock | Stock |
| Stock ESC | LaTrax waterproof ESC (3045R)Stock | Stock |
| Battery space | 102 × 35 × 18 mmmax pack, L × W × HStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Chassis | ||
| Weight | 0.57 kg (1.3 lb)Stock | Stock |
| Length | 313 mm12.3 inStock | Stock |
| Width | 171 mm6.7 inStock | Stock |
| Height | 122 mm4.8 inStock | Stock |
| Wheelbase | 179 mm7 inStock | Stock |
| Vehicle | ||
| Part number | 76064-5 | |
| Scale | 1/18 | |
| Class | Short course truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 9T | Mod 0.5 | Not published | 7644 (opens in a new tab) |
| Spur | 61T | Mod 0.5 | Not applicable | 7641 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The Traxxas spec table prints 'Gear Ratio (Internal): 2.5:1' and, on the transmission row, '10-T pinion / 60-T spur', but the parts list sets the 9-T pinion (7644) and the 61-tooth spur (7641) in regular type as supplied, and both part pages list the Desert Prerunner as a stock fitment, with the 10T and 60T gears as accessories.
- The stock gearing is used, so the total is 61 / 9 x 2.5 = 16.94.
- The motor is a brushed 370 on a 6-cell 7.2 V NiMH pack, so there is no KV rating and no no-load speed can be worked out.
- The ESC's own spec lists 5 to 6 NiMH cells and gives no LiPo cell rating, so the cell limit is left blank.
- Traxxas publishes no size for the stock SCT off-road racing tire (7071), so the tire diameter is left blank.
- The parts list calls the motor a 28-turn 370 while its part page says 23-turn.
Documents
- ManualOwner's manual, 76064-5 (Traxxas PDF) (opens in a new tab)
- Parts listParts list, 76064-5 (Traxxas PDF) (opens in a new tab)Spur gears & pinion gears
Sources
- latrax-desert-prerunner-760…traxxas.com (opens in a new tab)
- Manual (PDF)traxxas.com (opens in a new tab)
- Manual (PDF)traxxas.com (opens in a new tab)
- 7644-9-tooth-pinion-geartraxxas.com (opens in a new tab)
- 7641-61-tooth-spur-geartraxxas.com (opens in a new tab)
- 7575r-23-turn-brushed-370-s…traxxas.com (opens in a new tab)
- 7669-hex-wheel-hubs-4traxxas.com (opens in a new tab)
- 3045r-latrax-waterproof-esctraxxas.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
