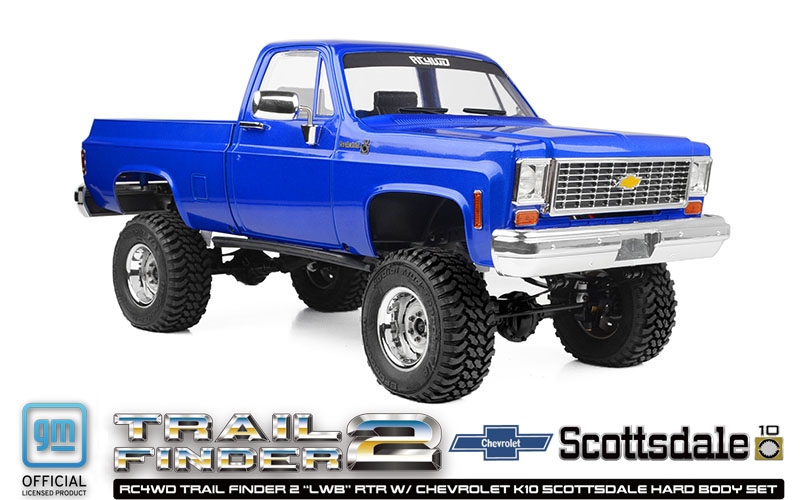

VehiclesRC4WD Trail Finder 2 LWB RTR Chevrolet K10 Scottsdale
RC4WD Trail Finder 2 LWB RTR Chevrolet K10 Scottsdale
1/10 scale · scale crawler · Z-RTR0062
- Final drive
- 31.90:1
- Tire
- 100mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 14TStock | Stock |
| Spur | 64TStock | Stock |
| Transmission & axle | 6.99:1Derived | Derived |
| Spur ÷ pinion | 4.571:1Calculated | Calculated |
| Final drive | 31.90:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 100mmStock | Stock |
| Rollout | 9.8mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Battery | Up to 3SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | Z-RTR0062 | |
| Scale | 1/10 | |
| Class | Scale crawler | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
How these numbers were settled
RC4WD's manual for the K10 Scottsdale LWB RTR prints the whole drivetrain: a 14T pinion on a 64T spur (4.57:1), the R3 single-speed transmission at 1.78:1, the Hammer transfer case at 1.47:1 and 15/40 axle gears at 2.67:1, for a printed final drive of 31.9:1.
- The ratio after the spur is the product of the three printed stages, 1.78 x 1.47 x 2.67 = 6.99, and 64/14 x 6.99 = 31.94 matches the printed total.
- The motor is RC4WD's 45T brushed 540 crawler can, so there is no KV.
- The axles are K44 cast axles at 2.67:1.
- The black edition's manual (Z-RTR0067) prints the tire as the BFGoodrich Mud Terrain KM 1.9 at 'Outer Diameter: 100.0mm (3.9")'.
- Z-RTR0066 (red) and Z-RTR0067 (black) are colour editions with the same printed specification.
- The Outcry III ESC is rated '2-3S LiPo or 5-9 NiMH' in RC4WD's own ESC sheet; the truck ships with a 6-cell NiMH pack.
Documents
- ManualInstruction manual (RC4WD PDF) (opens in a new tab)Spare and optional parts, PDF p. 30-31
Sources
- Manual (PDF)rc4wd.com (opens in a new tab)
- Manual (PDF)rc4wd.com (opens in a new tab)
- Manual (PDF)rc4wd.com (opens in a new tab)
- Manual (PDF)rc4wd.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
