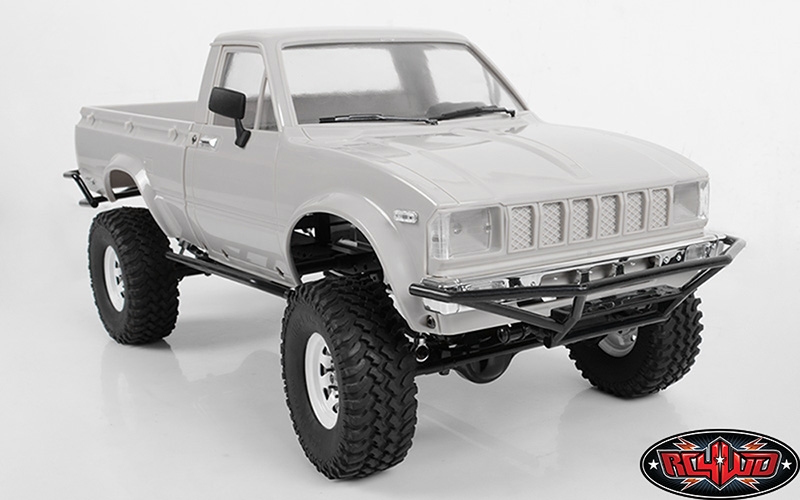

RC4WD Trail Finder 2 Truck Kit Mojave II

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

How these numbers were settled

The kit uses the R3 two-speed transmission, so its gearing is stored in high (2nd) gear.

• RC4WD's specification as carried by RPP Hobby prints a 14/64 pinion and spur (4.57:1), transmission ratios of 3.47:1 (1st) and 1.27:1 (2nd), the Hammer transfer case at 1.47:1 and Yota II axles at 15/40 = 2.67:1, with printed totals of 62.1:1 in 1st and 22.75:1 in 2nd.
• The ratio after the spur in 2nd is 1.27 x 1.47 x 2.67 = 4.98, and 64/14 x 4.98 = 22.79 agrees with the printed 22.75.
• Low gear is 62.1:1.
• Motor, ESC, radio, servos and battery are not included, so motor KV and the cell rating do not apply.
• The kit ships with Mud Thrashers 1.55 tires; RC4WD's tire copy reproduced by RPP Hobby gives 'Outer Diameter: 3.74" (95mm)', so the diameter shows as estimated.

Documents

• ManualInstruction manual (RC4WD PDF) (opens in a new tab)Spare and optional parts, PDF p. 32-33

Sources

• rc4z-k0049rpphobby.com (opens in a new tab)
• rc4z-t0100rpphobby.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
