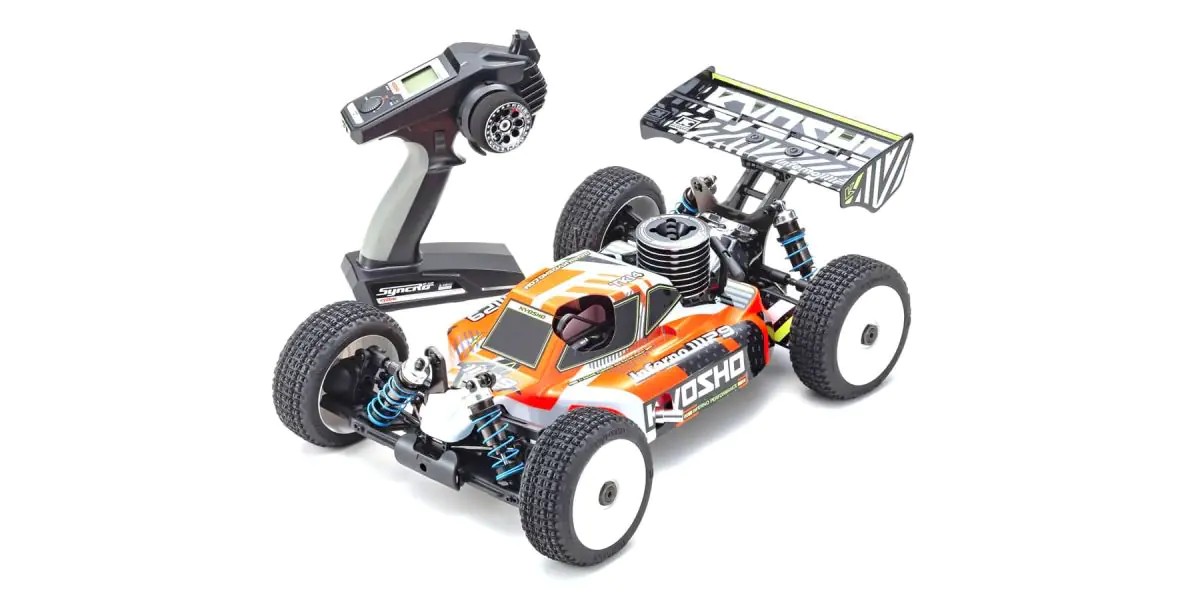

Kyosho Inferno MP9 TKI4 V2 Readyset

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.

How these numbers were settled

Ready-to-run nitro MP9 TKI4 with a rear-exhaust KE21SP engine, so KV and cell rating do not apply.

• Kyosho's Technical Data gives 'Gear Ratio 11.7:1' and 'Tire (F/R) φ116 x 44mm'.
• The spare parts list (p. 44 and 45) names a 13T one-piece clutch bell (97035LW-13, not sold on its own; 97035LW-13B is the listed replacement), the IF410-46B 46T spur, and the IF406-43 43T ring gear with the IF407-13B 13T drive bevel.
• Those tooth counts give 46/13 x 43/13 = 11.70, matching the printed total, so the ratio after the spur is 3.308.
• The maintenance manual (p. 6) fills the front, rear and center diffs with #5000 silicone oil.
• The 2018 MP9 TKI4 readyset (33014T1) prints the same Technical Data.

Documents

• ManualInstruction manual (Kyosho PDF) (opens in a new tab)
• ManualMaintenance manual (Kyosho PDF) (opens in a new tab)
• Exploded viewExploded view (Kyosho PDF) (opens in a new tab)
• Parts listSpare and option parts list (Kyosho PDF) (opens in a new tab)

Sources

• 33021crc.kyosho.com (opens in a new tab)
• Manual (PDF)kyosho.com (opens in a new tab)
• Manual (PDF)kyosho.com (opens in a new tab)
• 1rc.kyosho.com (opens in a new tab)
• 97035lw-13brc.kyosho.com (opens in a new tab)
• if406-43rc.kyosho.com (opens in a new tab)
• if407-13brc.kyosho.com (opens in a new tab)
• 33014t1rc.kyosho.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
