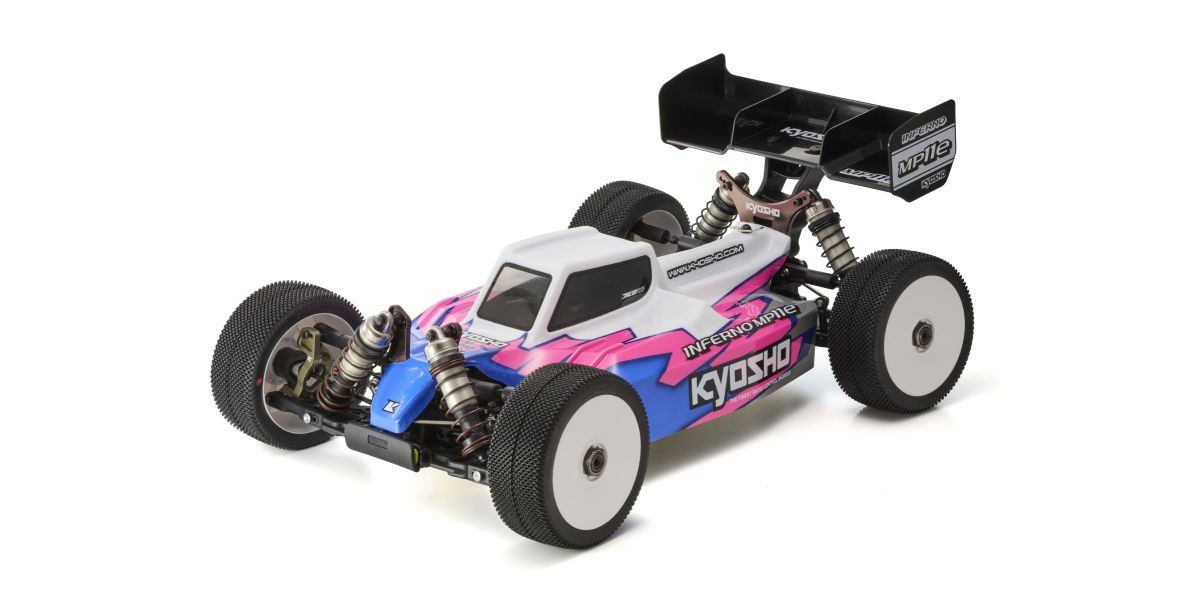

VehiclesKyosho Inferno MP11e
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 19TStock | Stock |
| Spur | 58TStock | Stock |
| Transmission & axle | 3.31:1Derived | Derived |
| Final drive | 10.14:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | 34119 | |
| Scale | 1/8 | |
| Class | Buggy | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 19T | Mod 0.8 | 5 mm | PNGS0819 (opens in a new tab) |
| Spur | 58T | Mod 0.8 | Not applicable | IFW639-58S (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Electric kit; motor, ESC, tires and wheels are sold separately, so KV and cell rating do not apply.
- Kyosho's Technical Data gives 'Gear Ratio 10.14: 1'.
- The kit's spare-parts list gives a PNGS0819 19T steel pinion, a 0.8 module 58T spur (IFW639-58S), and the 43T ring gear with a 13T drive bevel, so 58/19 x 43/13 = 10.10, within half a percent of the printed figure.
- The tire size is left blank.
Documents
- ManualInstruction manual (Kyosho PDF) (opens in a new tab)
- Exploded viewExploded view (Kyosho PDF) (opens in a new tab)Centre gearbox and pinion, PDF p. 3
- Parts listSpare and option parts list (Kyosho PDF) (opens in a new tab)Spur and pinion, PDF p. 2
Sources
- 34119rc.kyosho.com (opens in a new tab)
- Manual (PDF)kyosho.com (opens in a new tab)
- Manual (PDF)kyosho.com (opens in a new tab)
- pngs0819rc.kyosho.com (opens in a new tab)
- 1rc.kyosho.com (opens in a new tab)
- ifw639-58src.kyosho.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
