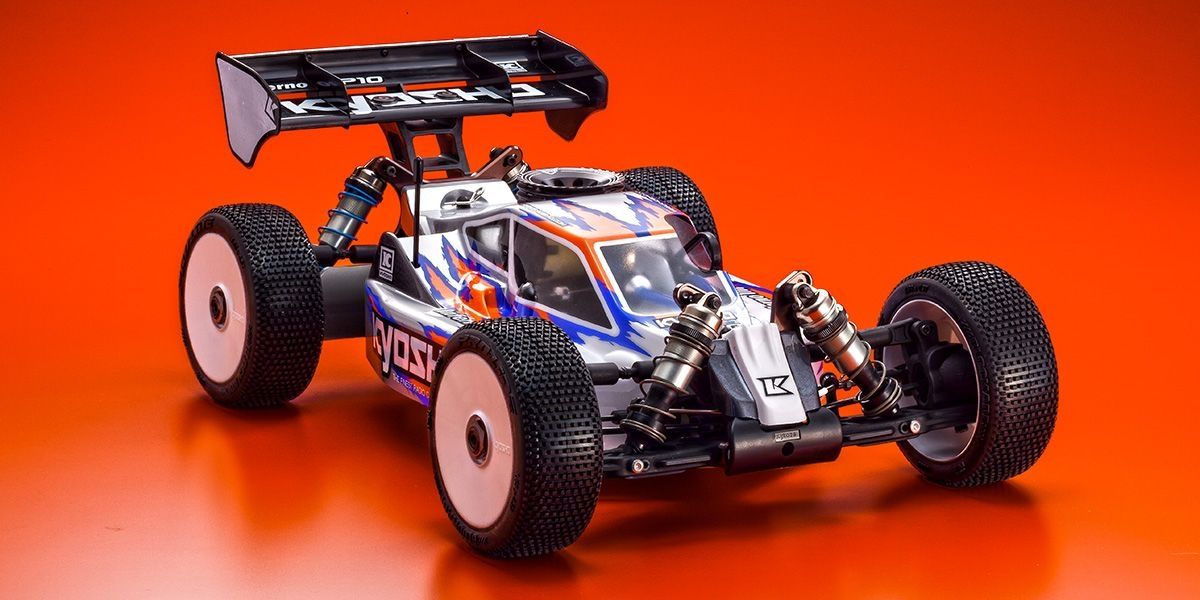

Kyosho Inferno MP10

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft.

How these numbers were settled

Nitro kit; the 21 class engine and the tires are sold separately.

• Kyosho's Technical Data gives 'Gear Ratio 11.7: 1'.
• Kyosho's spare-parts list names the 13T one-piece clutch bell (97035LW-13), the 46T spur (IF410-46B, 'Spur Gear (46T / MP9)'), and the 43T ring gear with a 13T drive bevel (IF406-43, IF407-13), which is 3.3077 after the spur. 46/13 x 3.3077 = 11.70, matching the published total.
• No gear module is printed.
• The tire size is not published.

Documents

• ManualInstruction manual, ver02 (PDF) (opens in a new tab)
• Exploded viewExploded diagram, ver02 (PDF) (opens in a new tab)
• Parts listSpare and optional parts list, ver02 (PDF) (opens in a new tab)Spur p. 52; clutch bell p. 53

Sources

• 33015rc.kyosho.com (opens in a new tab)
• Manual (PDF)kyosho.com (opens in a new tab)
• ifw107gmrc.kyosho.com (opens in a new tab)
• Manual (PDF)kyosho.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
