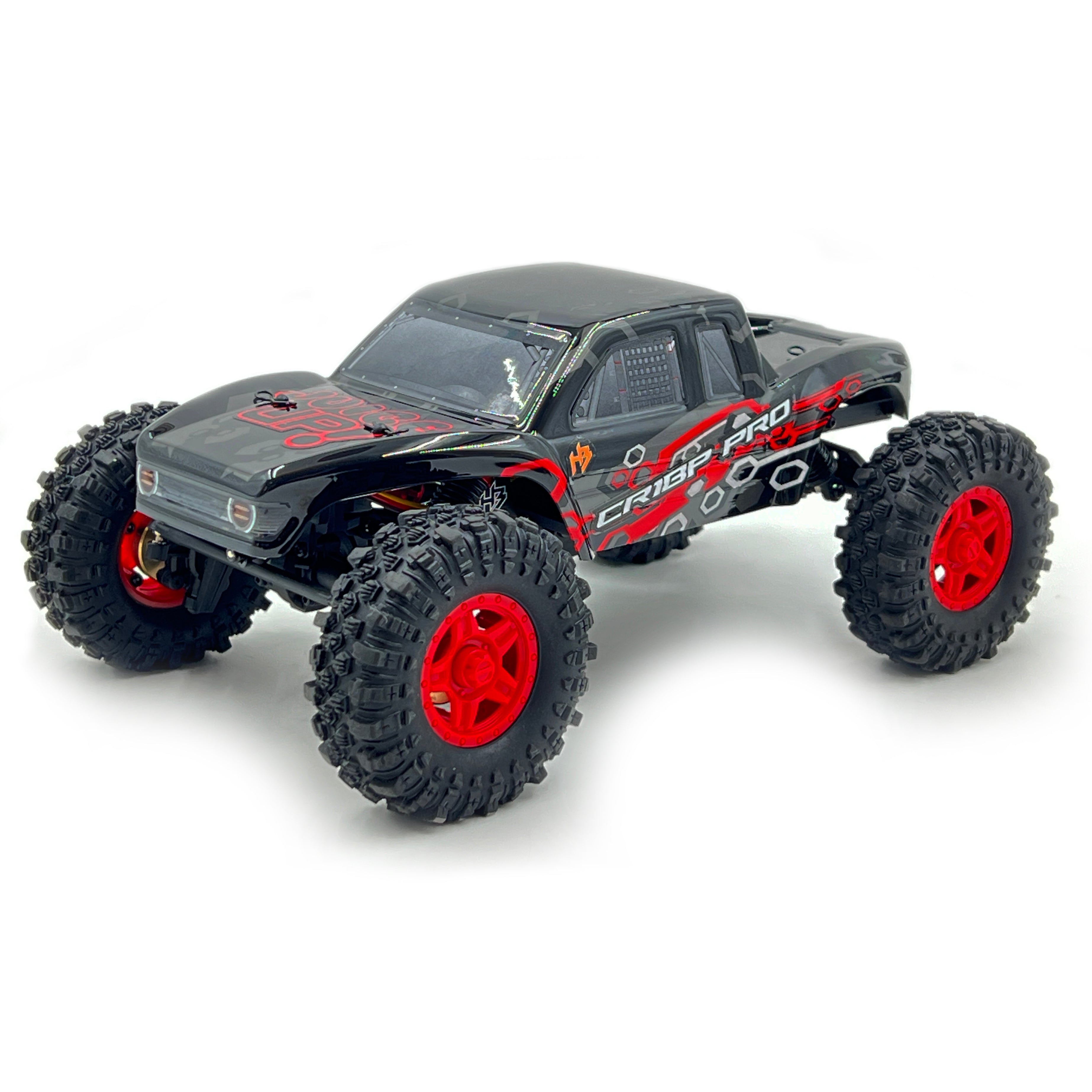

Hobby Plus CR18P Pro Juice Up Edition
1/18 scale · scale crawler · HBP1810360
- Tire
- 68mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not published | |
| Spur | Not published | |
| Transmission & axle | Not applicable | |
| Final drive | Not applicable | |
| Wheels & tires | ||
| Tire diameter | 68mmStock | Stock |
| Power | ||
| Motor | 3500KVStock | Stock |
| Motor shaft | Not published | |
| Battery | Up to 3SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not published | |
| Vehicle | ||
| Part number | HBP1810360 | |
| Scale | 1/18 | |
| Class | Scale crawler | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | Not published | Not published | Not published | Not published |
| Spur | Not published | Not published | Not applicable | 240305 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The front and rear axles are geared differently, so there is no single overall ratio.
- Hobby Plus's 1/18 specification chart gives a 13T/26T front ring and pinion, an 11T/28T rear ring and pinion (the included 27% underdrive set) and 15T/23T portal gears on both axles, with a 124.6:1 final drive for the front axle.
- The rear axle total is worked out from those tooth counts as 124.6 x (28/11) / (26/13) = 158.6:1.
- The single-speed transmission's pinion and first gear tooth counts are not published and are left blank.
- The motor is a Hobbywing 1621 3500kv outrunner on a waterproof Mini 24 ESC; Hobby Plus calls it a 2-3S power system and ships it with a 3S 360mAh pack.
- The 68mm tire is from both the product page and the chart.
- Colour variants carry JURD and JUYW suffixes on this base number.
Documents
- ManualInstruction manual, CR18P Pro / Juice Up (scanned Hobby Plus PDF) (opens in a new tab)Reduction gear box (single speed), PDF p. 2
- Parts listPart cross application chart (Hobby Plus PDF) (opens in a new tab)240305 p. 1; 240328 p. 2; 240489 p. 3
Sources
- cr18p-pro-juice-up-edition-…hbplusrc.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- optional-27-under-drive-pin…hbplusrc.com (opens in a new tab)
- hp-hw-wp-mini-24-2s-3s-craw…hbplusrc.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- cr18p-cr18p-evo-metal-trans…hbplusrc.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- hbp-hw-1621-3500kv-outrunne…hbplusrc.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
