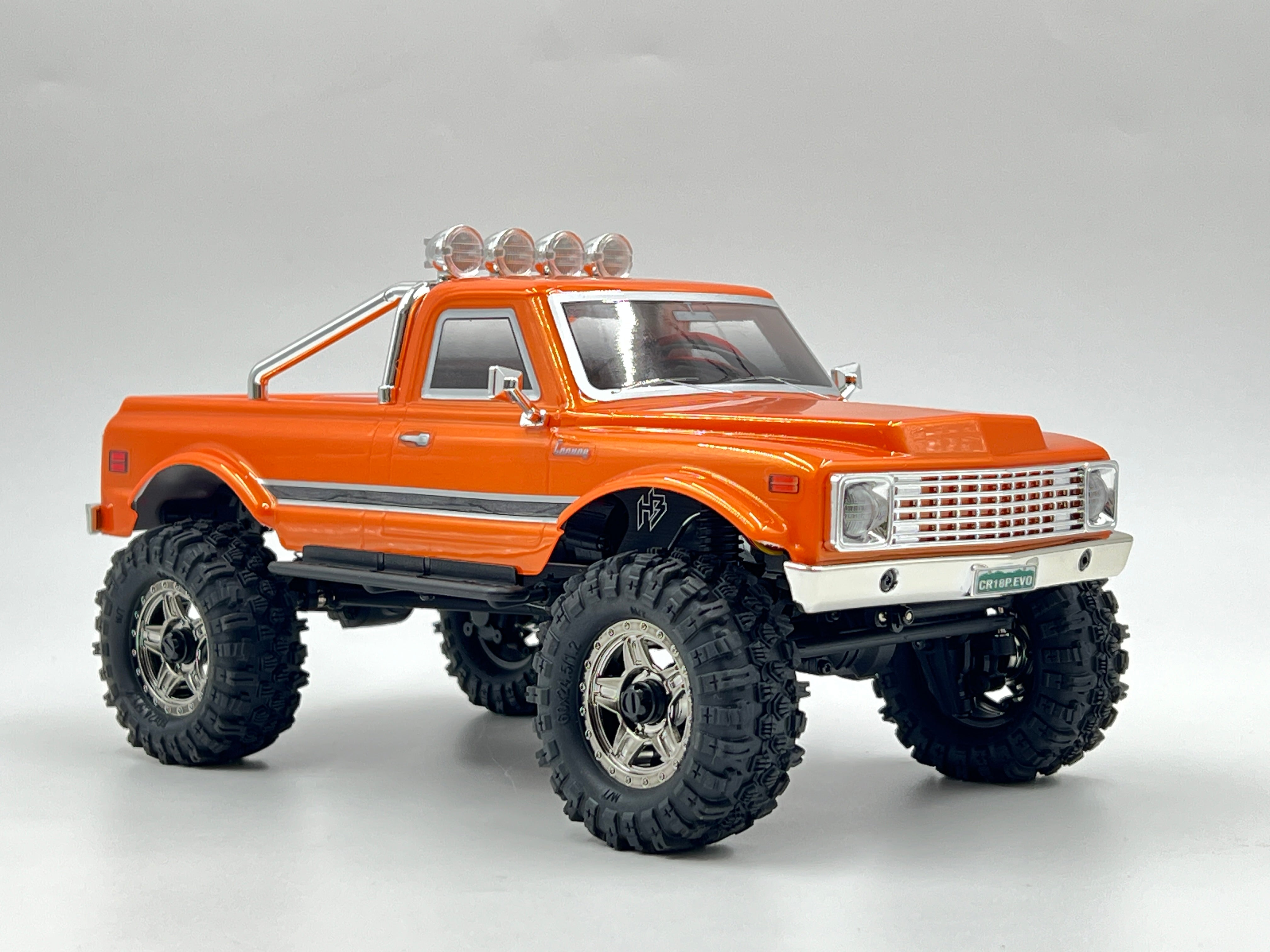

VehiclesHobby Plus CR18P Evo V2 Convoy
Hobby Plus CR18P Evo V2 Convoy
1/18 scale · scale crawler · HBP1810504
- Tire
- 60mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 11TStock | Stock |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | Not published | |
| Wheels & tires | ||
| Tire diameter | 60mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | HBP1810504 | |
| Scale | 1/18 | |
| Class | Scale crawler | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 11T | Mod 0.4 | Not published | 240513 (opens in a new tab) |
| Spur | Not published | Not published | Not applicable | 240305 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The stock pinion is 11T: Hobby Plus's page for its 11T 0.4 mod pinion (240513) says it fits the CR18P Evo V2 180 55-turn motor.
- The Evo V2 has a remote two-speed transmission, and Hobby Plus's 1/18 specification chart prints a single 124.6:1 final drive for both axles without saying which gear it is, so the high gear total is left blank.
- The chart gives 13T/26T ring and pinion gears and 15T/23T portal gears front and rear, a 3.07 reduction in each axle.
- The transmission's first gear tooth count is not published.
- The motor is a 180 size 55-turn brushed can, so there is no KV.
- The ESC is the 4-channel 2-in-1 brushed ESC/RX (240487), which Hobby Plus lists as 2S LiPo.
- The 60mm tire is from both the product page and the chart.
- Colour variants carry GN and OR suffixes on this base number.
Documents
- Exploded viewInstruction manual part 2, CR18P Evo V2 (scanned Hobby Plus PDF) (opens in a new tab)2 Speed Transmission Gear Box, p. 14
- Parts listPart cross application chart (Hobby Plus PDF) (opens in a new tab)240305 p. 1; 240513 p. 4
Sources
- cr18p-evo-v2-convoy-brushed…hbplusrc.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- machined-hd-pinion-gear-11t…hbplusrc.com (opens in a new tab)
- hb-fs-4ch-2in1-brushed-esc-…hbplusrc.com (opens in a new tab)
- 1-18-cr18p-evo-v2-convoy-br…hbplusrc.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- cr18p-cr18p-evo-metal-trans…hbplusrc.com (opens in a new tab)
- 180-size-brsuhed-motor-55-t…hbplusrc.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
