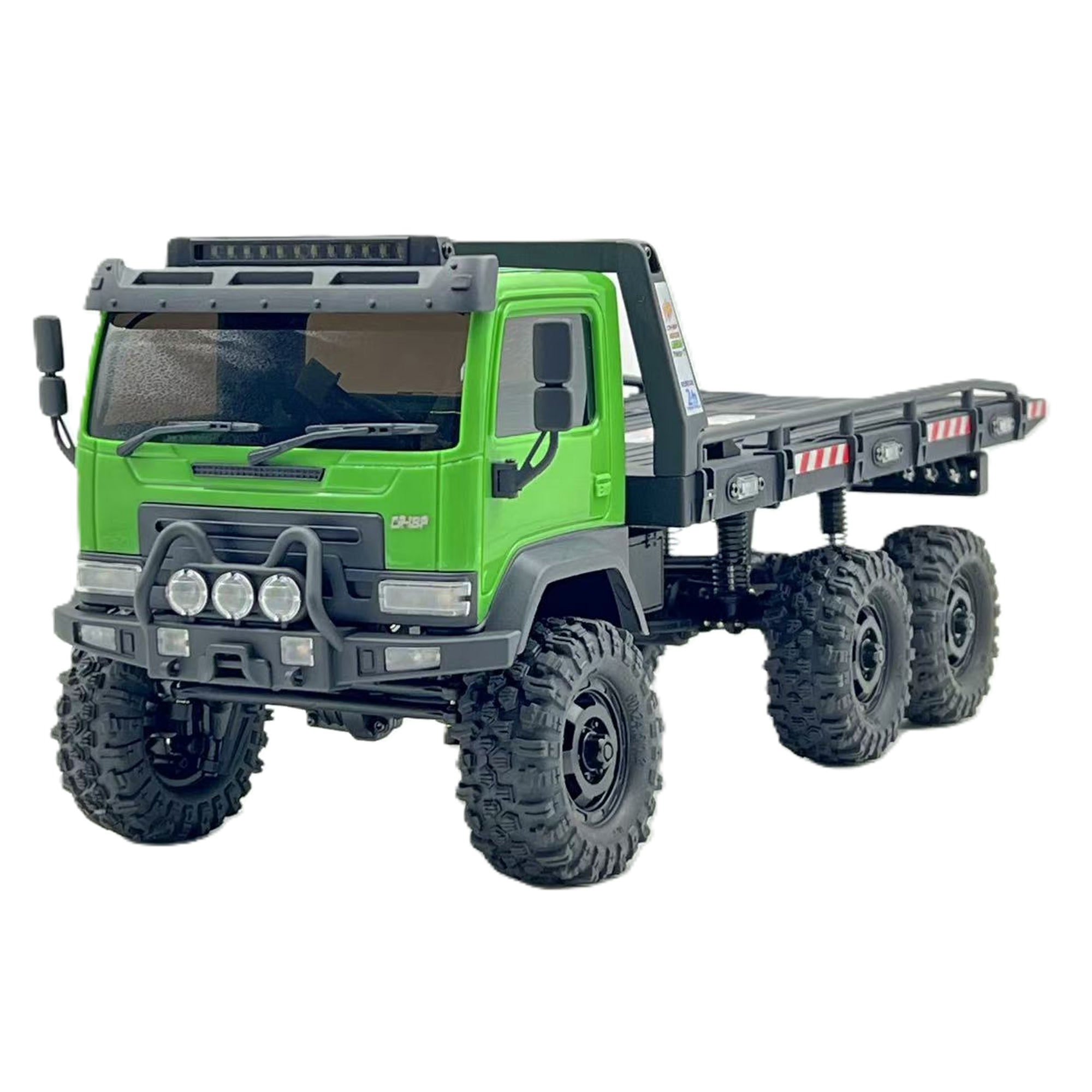

VehiclesHobby Plus CR18P Arktos 6x6 V1.5
Hobby Plus CR18P Arktos 6x6 V1.5
1/18 scale · scale crawler
- Final drive
- 31.15:1
- Tire
- 60mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not published | |
| Spur | Not published | |
| Transmission & axle | Not published | |
| Final drive | 31.15:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 60mmStock | Stock |
| Rollout | 6.1mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Scale | 1/18 | |
| Class | Scale crawler | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | Not published | Not published | Not published | Not published |
| Spur | Not published | Not published | Not applicable | 240305 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The product page prints the final drive as 124.6:1 in low gear and 31.15:1 in high gear; high gear is the figure kept.
- Hobby Plus's 1/18 specification chart gives 11T/28T ring and pinion gears and 15T/23T portal gears on all three axles, a 3.90 reduction in each axle.
- The motor pinion and transmission tooth counts are not published and are left blank.
- The motor is a big block 280 size brushed can, so there is no KV.
- The 2-in-1 ESC/RX is FlySky's FS-HBP-R6A3-BS, rated for 2S LiPo in the FlySky manual Hobby Plus posts for the Arktos.
- The 60mm tire is from both the product page and the chart.
- No part number is given: HBP1810601 and HBP1810602 are the two colours.
Documents
- Exploded viewInstruction manual part 4, Arktos V1.5 (scanned Hobby Plus PDF) (opens in a new tab)Reduction gear box, PDF p. 11
Sources
- cr18p-arktos-v1-5-6x6-rtr-c…hbplusrc.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- product-manualshbplusrc.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- big-block-motor-280-58thbplusrc.com (opens in a new tab)
- cr18p-cr18p-evo-metal-trans…hbplusrc.com (opens in a new tab)
- 280-size-55t-brushed-motorhbplusrc.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
