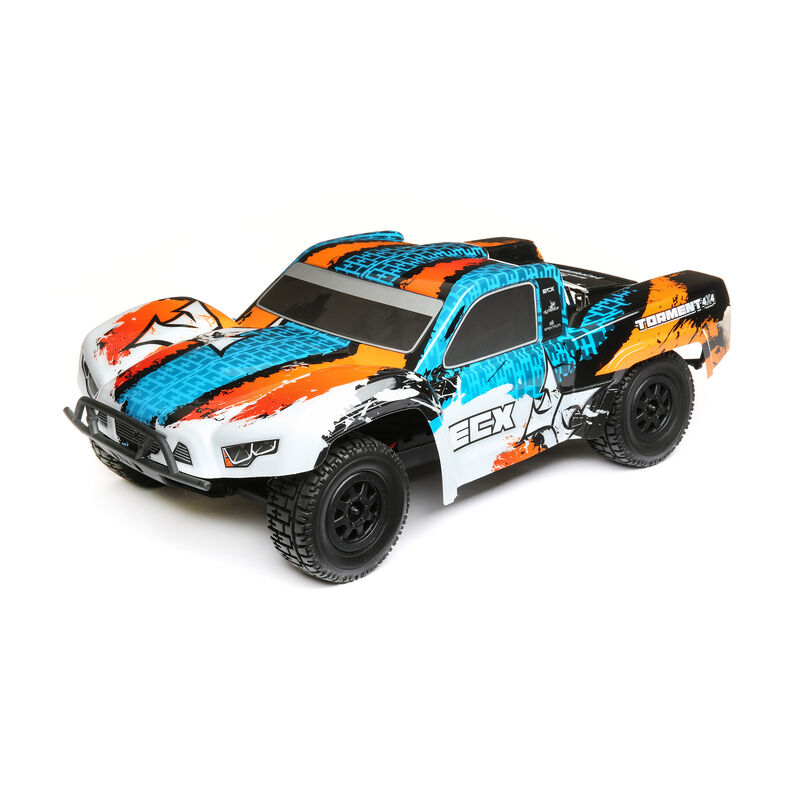

VehiclesECX Torment 4WD
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 12TStock | Stock |
| Spur | 45TStock | Stock |
| Transmission & axle | Not published | |
| Final drive | Not published | |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not published | |
| Battery | Up to 2SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Part number | ECX03243 | |
| Scale | 1/10 | |
| Class | Short course truck | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 12T | Mod 1 | 3 mm | ECX232028 (opens in a new tab) |
| Spur | 45T | Mod 1 | Not applicable | ECX232019 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
The 2019 update of the 4WD Torment with sealed gear diffs and a 13T 550 brushed motor.
- Horizon's spec table prints a 12T pinion and a 45T Mod 1 spur, and the manual's parts list names the same 9T/12T Mod 1 pinion part and the 45T spur.
- Neither Horizon nor the manual publishes the diff ring and pinion tooth counts or a gear ratio, so the ratios are left blank.
- The manual's ESC table gives 6.0 to 8.4V with a 2S LiPo setting.
- The motor is brushed and has no KV rating.
- Tire diameter is not published for this version's ECX43014 wheel and tire.
Documents
- ManualOwner's manual, Ruckus and Torment 4WD (Horizon PDF) (opens in a new tab)
- Exploded viewExploded view (in owner's manual) (opens in a new tab)Parts diagram, p. 50-51
- Parts listReplacement parts list (in owner's manual) (opens in a new tab)Spur item 25, p. 52; pinion item 34, p. 53
Sources
- ECX03243horizonhobby.com (opens in a new tab)
- Manual (PDF)horizonhobby.com (opens in a new tab)
- ECX232028horizonhobby.com (opens in a new tab)
- ECX232019horizonhobby.com (opens in a new tab)
- DYNS1213horizonhobby.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
