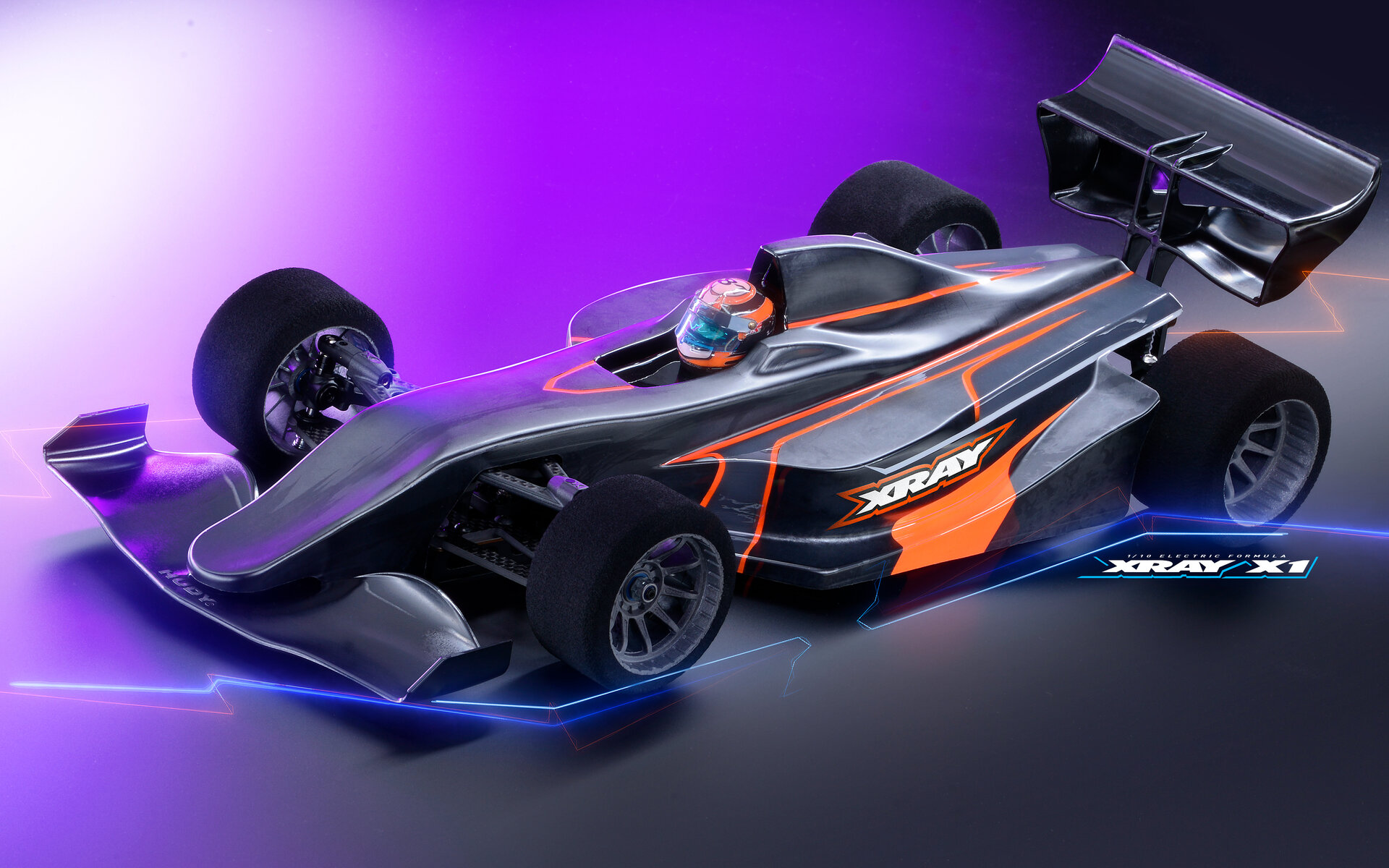

VehiclesXRAY X1'27
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | Not applicable | |
| Spur | 80TStock | Stock |
| Transmission & axle | 1.00:1Derived | Derived |
| Final drive | Not applicable | |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Scale | 1/10 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
How these numbers were settled
1/10 Formula 1 kit.
- The manual marks the 80T/64P gear diff spur (#375780) as included; it sits on the rear axle diff, so there is no reduction after the spur and the total ratio is spur over pinion.
- Motor, pinion, speed controller, wheels, tires and inserts are on the list of items to buy.
- Dealers list the carbon and aluminium editions under 370710 and 370711 inconsistently, so no kit number is given.
Documents
- ManualInstruction manual, X1'27 (XRAY PDF) (opens in a new tab)Rear axle and spur PDF p. 20-21
- Exploded viewExploded view, X1'27 (XRAY PDF) (opens in a new tab)
- Parts listSpare parts list, X1'27 (XRAY PDF) (opens in a new tab)
Sources
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
