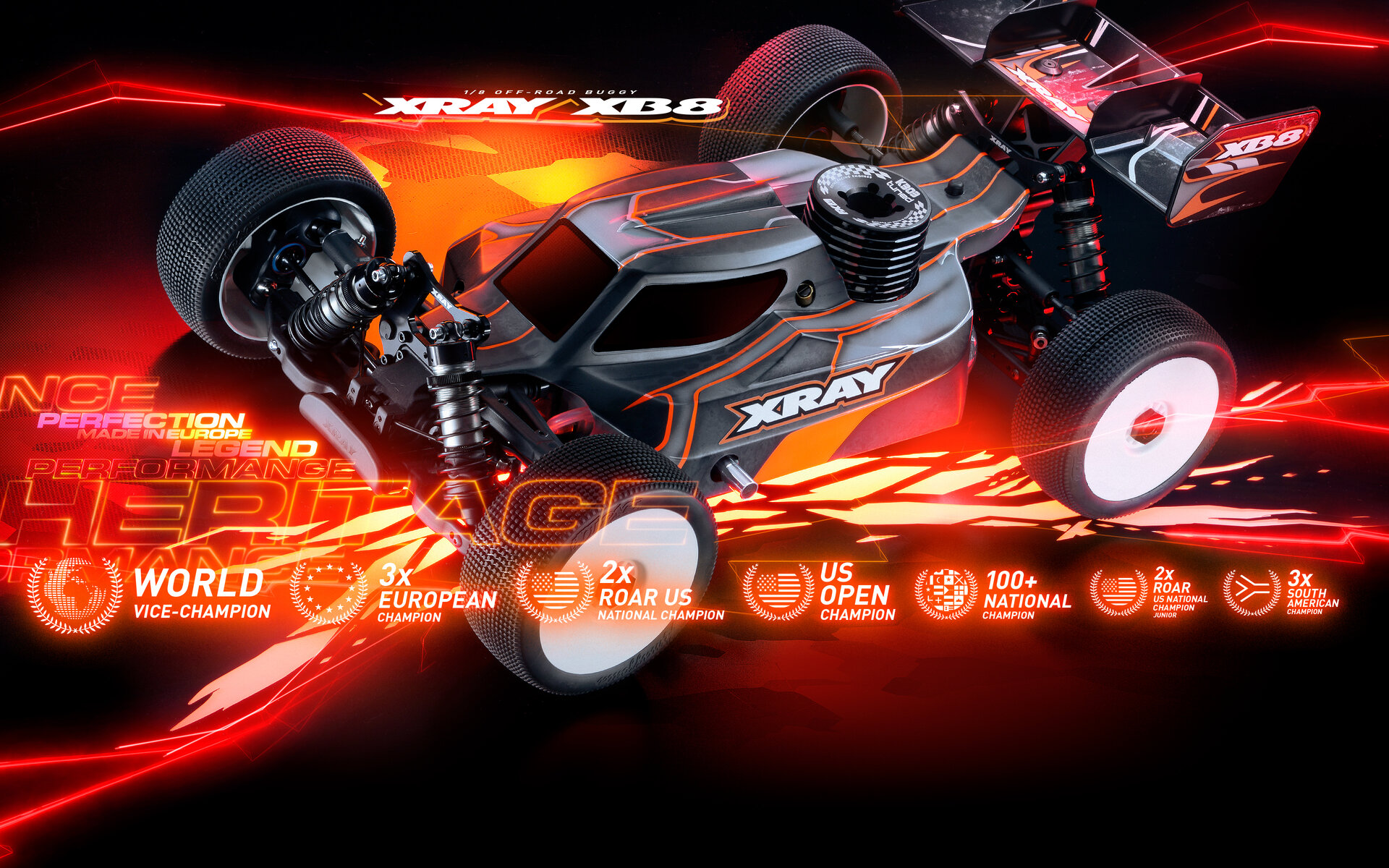

XRAY XB8'26

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft.

How these numbers were settled

Nitro race kit: the manual's equipment list names the .21 engine and the tires and wheels as items to buy, so the tire size is left blank.

• The manual prints the kit gearing as (48 : 14) x 3.54 = 12.14, with the 14T clutch bell (#358414) and the 48T centre diff spur (#355058) marked as fitted.
• XRAY's features page independently names the 48T spur, the standard 14T clutch bell and the 46T crown against a 13T pinion in both diffs, and 46/13 = 3.54 matches the printed constant.

Documents

• ManualInstruction manual, XB8'26 (XRAY PDF) (opens in a new tab)Centre diff spur PDF p. 10; clutch bell and gearing p. 38-40
• Gearing chartFinal drive formula and clutch bell options (XRAY PDF) (opens in a new tab)PDF p. 40
• Exploded viewExploded view, XB8'26 (XRAY PDF) (opens in a new tab)
• Parts listSpare parts list, XB8'26 (XRAY PDF) (opens in a new tab)358414, 355058

Sources

• Manual (PDF)teamxray.com (opens in a new tab)
• enteamxray.com (opens in a new tab)
• Manual (PDF)teamxray.com (opens in a new tab)
• p1800167amainhobbies.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
