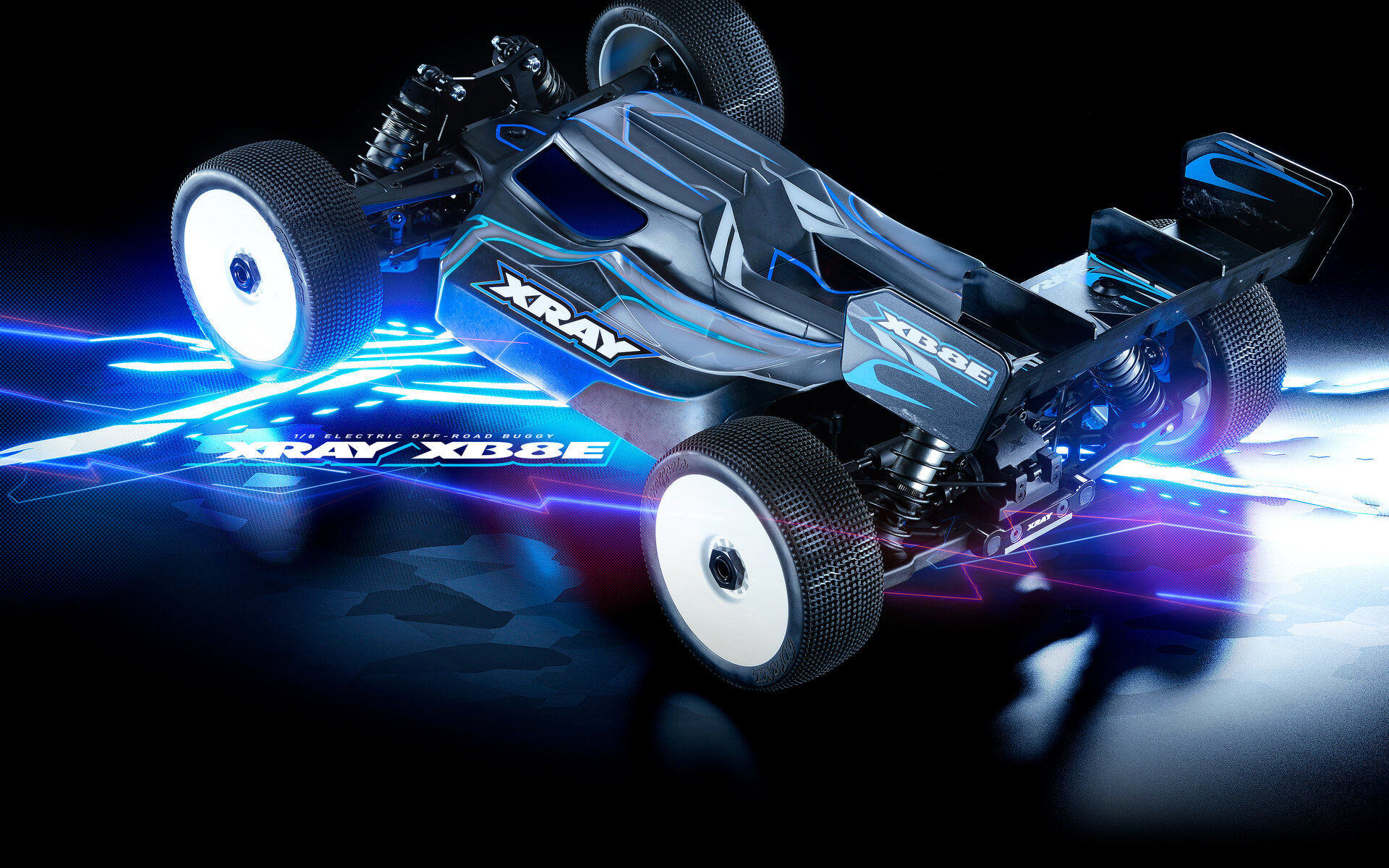

XRAY XB8E'26

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft.

How these numbers were settled

Electric race kit: the manual lists the motor, speed controller, pinion, battery and tires and wheels as not included, so there is no stock pinion or total ratio and the tire size is left blank.

• The manual's gearing formula reads (46 : X) x 3.54 = FDR, with the 46T composite spur (#354946) fitted to the centre diff.
• The 3.54 constant is the 46T crown against the 13T diff pinion, the same pair the features page describes.

Documents

• ManualInstruction manual, XB8E'26 (XRAY PDF) (opens in a new tab)Centre diff spur PDF p. 10; pinion and gearing p. 38
• Gearing chartFinal drive formula and pinion options (XRAY PDF) (opens in a new tab)PDF p. 38
• Exploded viewExploded view, XB8E'26 (XRAY PDF) (opens in a new tab)
• Parts listSpare parts list, XB8E'26 (XRAY PDF) (opens in a new tab)

Sources

• Manual (PDF)teamxray.com (opens in a new tab)
• enteamxray.com (opens in a new tab)
• p1800169amainhobbies.com (opens in a new tab)
• Manual (PDF)teamxray.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
