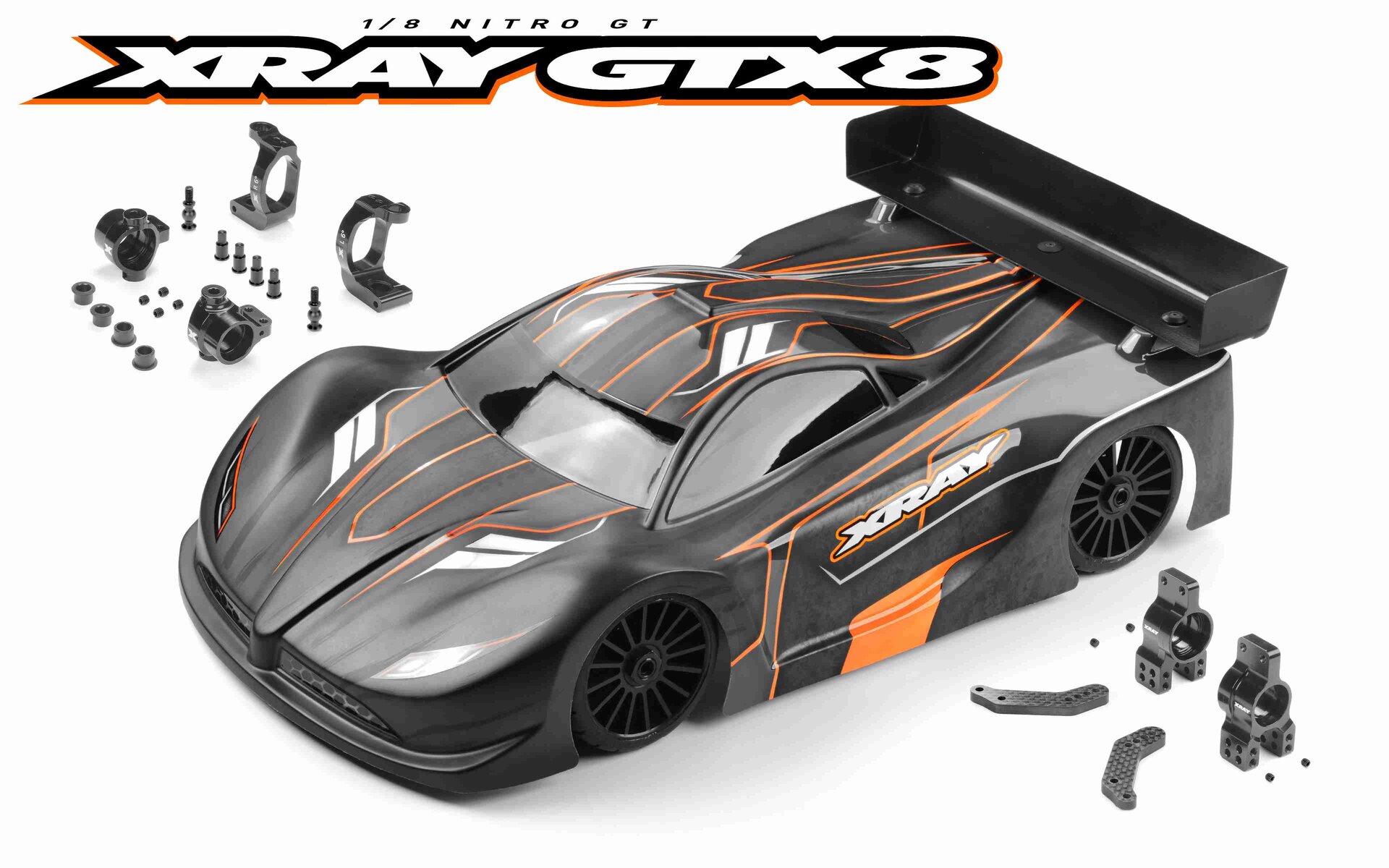

VehiclesXRAY GTX8'27
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 18TStock | Stock |
| Spur | 47TStock | Stock |
| Transmission & axle | 3.54:1Derived | Derived |
| Final drive | 9.24:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not applicable | |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Vehicle | ||
| Scale | 1/8 | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 18T | Not published | Not applicable | 358422 |
| Spur | 47T | Not published | Not applicable | 345547 |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft.
How these numbers were settled
1/8 nitro GT kit with a 2-speed gearbox; the figures are for second (high) gear.
- The manual marks the 14/18T clutch bell pinion module (#358422) and the 2-speed gears 50T (1st) and 47T (2nd) as included, and XRAY's features page names the same 47/50T spurs, 14/18T pinions and a 46T crown against a 13T diff pinion.
- The after-spur figure is worked out as 46/13 = 3.538 and the high-gear total as 47/18 x 3.538 = 9.24; first gear works out to 50/14 x 3.538 = 12.64.
- Both totals assume the centre output turns the diff pinions at gearbox output speed, as on the XB8 the car is based on; XRAY prints no ratio.
- Engine, wheels and tires are on the list of items to buy, so the tire size is left blank.
- No kit number was found on XRAY's pages.
Documents
- ManualInstruction manual, GTX8'27 (XRAY PDF) (opens in a new tab)2-speed gears PDF p. 31-32; clutch pinion p. 35-37
- Exploded viewExploded view, GTX8'27 (XRAY PDF) (opens in a new tab)
- Parts listSpare parts list, GTX8'27 (XRAY PDF) (opens in a new tab)358422, 345547, 345550
Sources
- Manual (PDF)teamxray.com (opens in a new tab)
- gtx8teamxray.com (opens in a new tab)
- Manual (PDF)teamxray.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
