XRAY X10'26

Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Derived is worked out from gear tooth counts the maker publishes rather than printed as a ratio; the notes below say how. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.

Gearing parts

Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft.

How these numbers were settled

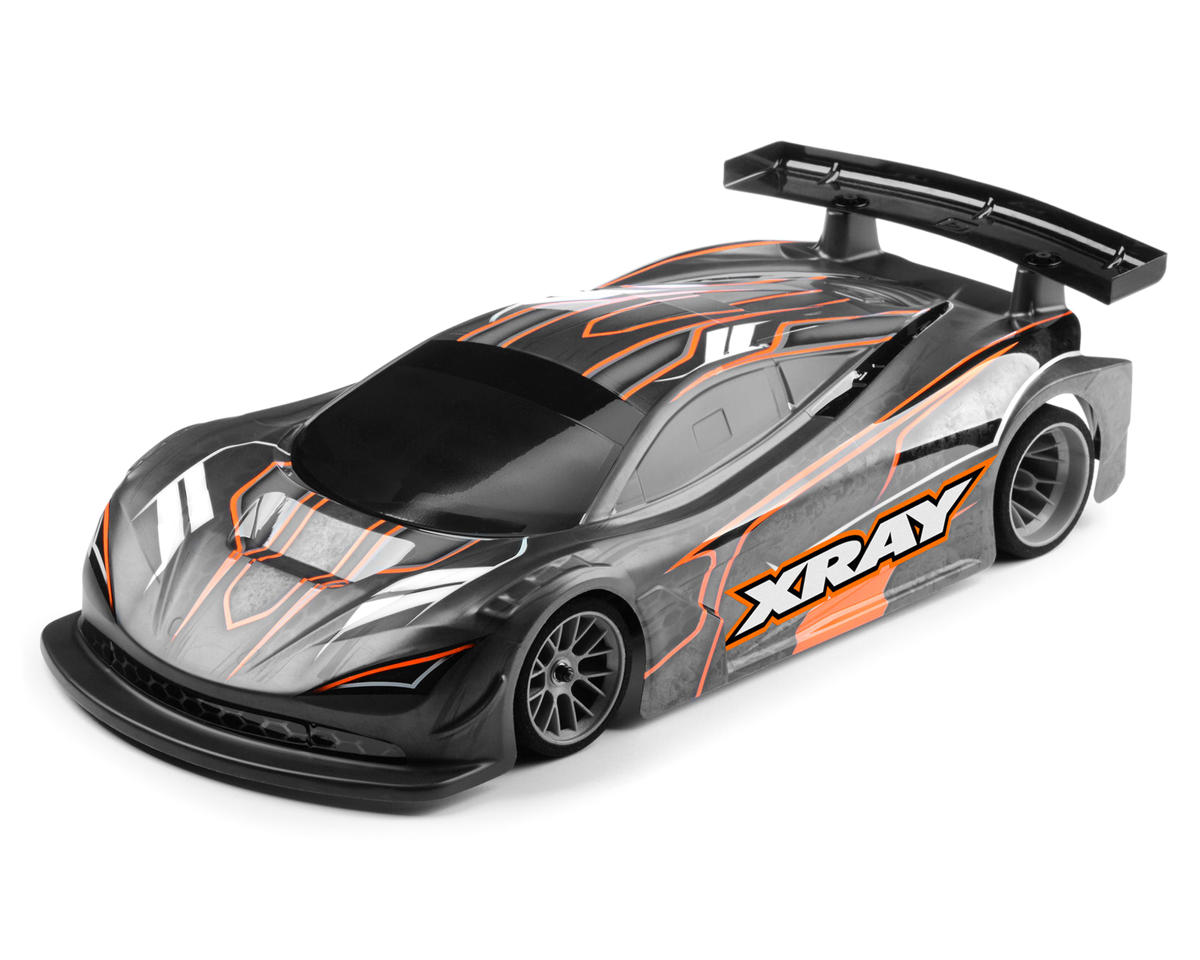

1/10 GT pan car kit.

• The manual lists nine ball diff spurs from 72T to 96T and marks the 92T/64P (#375892) as the included one; the spur sits on the rear axle ball diff, so there is no reduction after it and the total ratio is spur over pinion.
• The same manual covers the XP10 kit, which shares the drivetrain.
• Motor, pinion and tires are not included, so the tire size is left blank.

Documents

• ManualInstruction manual, X10'26 and XP10 (XRAY PDF) (opens in a new tab)Ball diff spur PDF p. 19-20
• Exploded viewExploded view, X10'26 (XRAY PDF) (opens in a new tab)
• Parts listSpare parts list, X10'26 (XRAY PDF) (opens in a new tab)

Sources

• Manual (PDF)teamxray.com (opens in a new tab)
• p1650139amainhobbies.com (opens in a new tab)

Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
