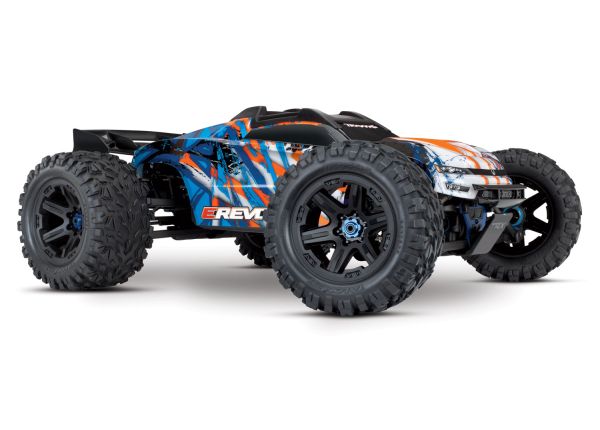

VehiclesTraxxas E-Revo VXL 2.0
Traxxas E-Revo VXL 2.0
1/10 scale · monster truck · 86086-4
- Top speed
- 45mphcalculated
- Final drive
- 20.49:1
- Tire
- 162mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Vehicle | ||
| Class | Monster truck | |
| Drive | 4WD | |
| Power | Brushless | |
| Build | Ready to run | |
| Scale | 1/10 | |
| Part number | 86086-4 | |
| Drivetrain | ||
| Pinion | 15TStock | Stock |
| Spur | 54TStock | Stock |
| Transmission & axle | 5.69:1Stock | Stock |
| Spur ÷ pinion | 3.600:1Calculated | Calculated |
| Final drive | 20.49:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 162mmEstimated | Estimated |
| Rollout | 24.8mm per motor turnCalculated | Calculated |
| Power | ||
| Motor | 2200KVStock | Stock |
| Battery | Up to 6SLiPoStock | Stock |
| Performance | ||
| Theoretical top speed | 45.2mph on 6SCalculated | Calculated |
| Motor speed | 48,840rpm, no loadCalculated | Calculated |
| Chassis | ||
| Weight | 5.08 kg (11.2 lb)Stock | Stock |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. The top speed is kinematic: an ideal no-load RPM with no slip and no loss under load, so a real car is slower.
How these numbers were settled
Released in 2018 as a single speed 4WD monster truck.
- The owner's manual marks 15T pinion and 54T spur as the out of box setup, with a printed formula giving a 5.69 internal ratio and a final drive near 20.5 to 1.
- The Velineon VXL-6s speed control is built to run on 4S or 6S LiPo packs, and the motor is rated 2200Kv.
- HobbyTown lists the truck as discontinued online.
Sources
- Manual (PDF)eurorc.com (opens in a new tab)
- 86086-4-110-e-revo-vxl-brus…traxxas.com (opens in a new tab)
- p734546hobbytown.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
