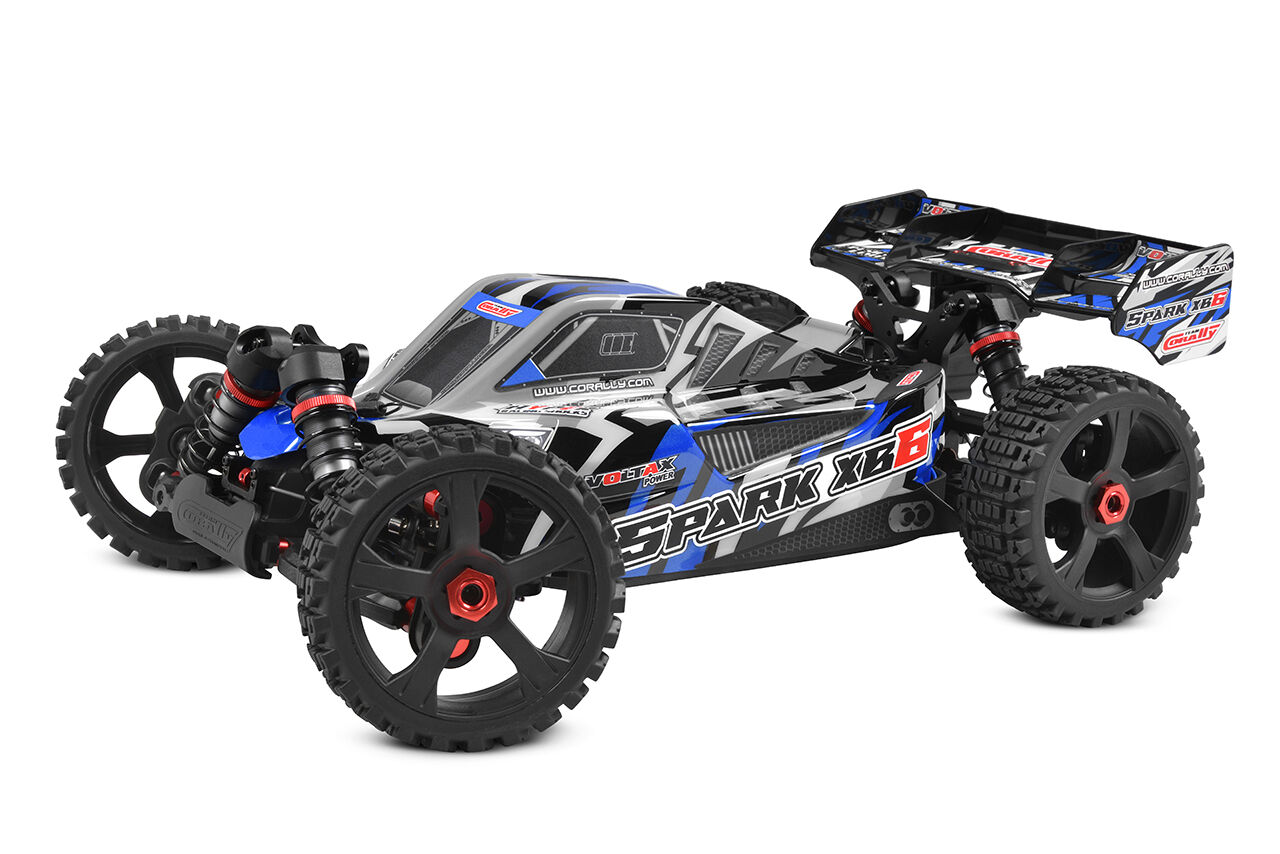

VehiclesTeam Corally Spark XB-6 Roller
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 46TStock | Stock |
| Transmission & axle | 3.31:1Stock | Stock |
| Final drive | 11.71:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | Not published | |
| Wheel hex | 17 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Chassis | ||
| Length | 495 mm19.5 inStock | Stock |
| Width | 308 mm12.1 inStock | Stock |
| Height | 175 mm6.9 inStock | Stock |
| Wheelbase | 327 mm12.9 inStock | Stock |
| Diff oil, front | 20KStock | Stock |
| Diff oil, center | 50KStock | Stock |
| Diff oil, rear | 10KStock | Stock |
| Vehicle | ||
| Part number | C-00485 | |
| Scale | 1/8 | |
| Class | Buggy | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor. Not published means it exists but no source we could find prints it.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 13T | Mod 1 | 5 mm | C-72813 (opens in a new tab) |
| Spur | 46T | Mod 1 | Not applicable | C-00180-091 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Roller: motor, ESC, servo, radio and battery are not included, so KV and cell count are the buyer's.
- Corally's roller page prints Motor Pinion 13T, Spur Gear 46T, Gear Pitch MOD 1.0, Internal Drive Ratio 3.31 and Overall Drive Ratio 11.71, and the roller manual (revised 2026-09-14) says on p. 10 that the car is equipped with a 13-tooth pinion from the factory.
- Team Corally USA prints only 'Gear Ratio (out of the box - roller): 3.31', the ratio after the spur.
- The tire diameter is left blank because Corally's page prints Tire Dia. 116mm while Team Corally USA prints a 'Wheel Size (diameter, width)' of 114x42mm.
- The weight is left blank: the roller page and roller manual repeat the RTR's 3650g, and Team Corally USA gives 3370g.
- The ready-to-run version is C-00285.
Documents
- ManualInstruction manual, Spark XB-6 roller C-00485 (Team Corally USA PDF) (opens in a new tab)
- Gearing chartSpeed gear chart in the Spark XB-6 roller manual (Team Corally USA PDF) (opens in a new tab)Speed gear chart, p. 10
- Exploded viewExploded view, Spark XB-6 (Team Corally USA PDF) (opens in a new tab)
- Parts listParts list, Spark XB-6 (Team Corally USA PDF) (opens in a new tab)
Sources
- team-corally-spark-xb-6-rol…corally.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- cor00485-b-spark-xb6-1-8-6s…corallyus.com (opens in a new tab)
- spares-spark-xb-6corally.com (opens in a new tab)
- spares-spark-xb-6corally.com (opens in a new tab)
- team-corally-spur-gear-46t-…corally.com (opens in a new tab)
- team-corally-m10-pinion-sho…corally.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
