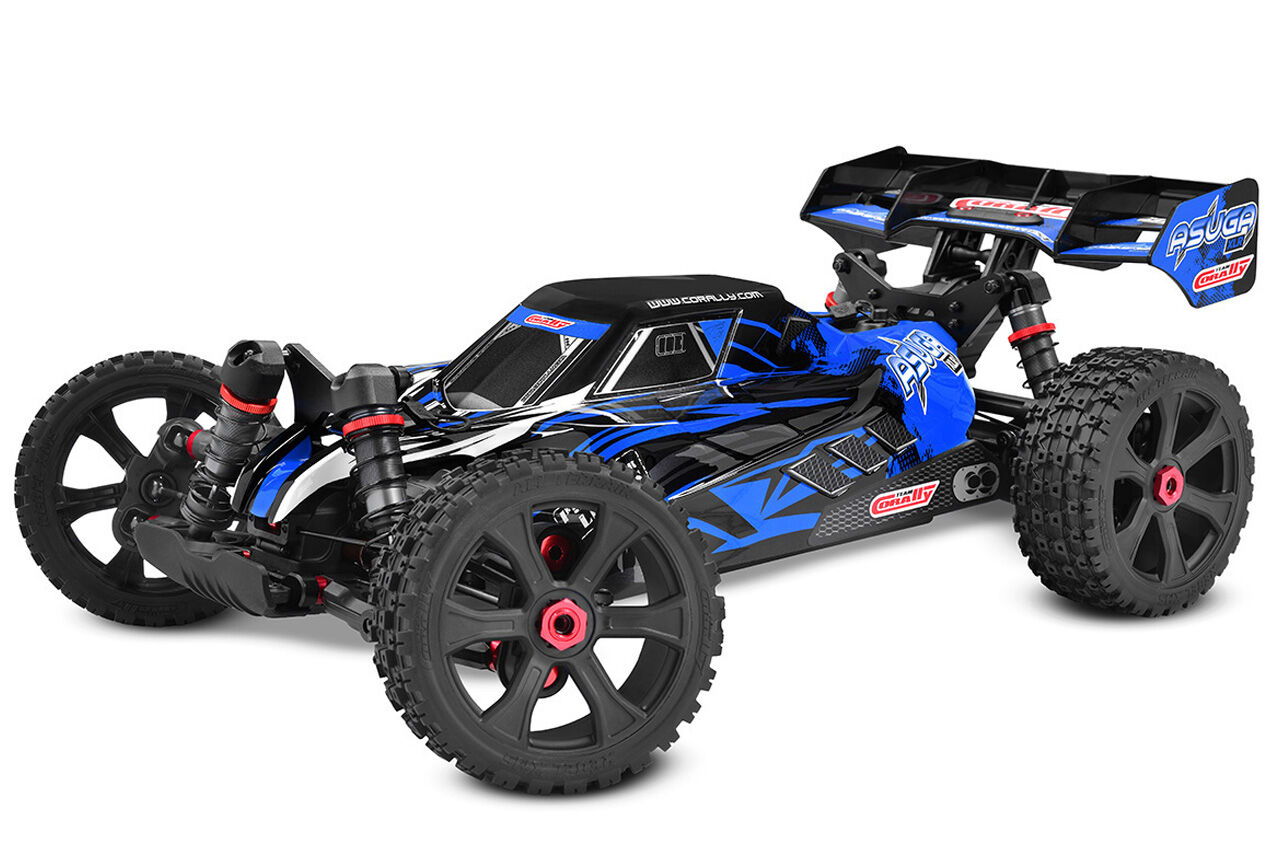

VehiclesTeam Corally Asuga XLR 6S Roller
Team Corally Asuga XLR 6S Roller
1/8 scale · buggy · C-00488
- Final drive
- 13.23:1
- Tire
- 130mm
Specifications
Last modified
| Spec | Value | Basis |
|---|---|---|
| Drivetrain | ||
| Pinion | 13TStock | Stock |
| Spur | 52TStock | Stock |
| Transmission & axle | 3.31:1Stock | Stock |
| Spur ÷ pinion | 4.000:1Calculated | Calculated |
| Final drive | 13.23:1Stock | Stock |
| Wheels & tires | ||
| Tire diameter | 130mmStock | Stock |
| Rollout | 30.8mm per motor turnCalculated | Calculated |
| Wheel hex | 17 mmStock | Stock |
| Power | ||
| Motor | Not applicable | |
| Motor shaft | Not applicable | |
| Battery | Not applicable | |
| Performance | ||
| Theoretical top speed | Not applicable | |
| Chassis | ||
| Diff oil, front | 30KStock | Stock |
| Diff oil, center | 100KStock | Stock |
| Diff oil, rear | 20KStock | Stock |
| Vehicle | ||
| Part number | C-00488 | |
| Scale | 1/8 | |
| Class | Buggy | |
Stock is as the vehicle ships. Calculated is worked from the stock figures on this page rather than stored beside them, so the two cannot drift apart. Not applicable means the vehicle does not come with it, like the motor on a roller or the tires on a race kit, or does not have one, like a KV rating on a brushed motor.
Gearing parts
| Component | Teeth | Pitch | Bore | Part number |
|---|---|---|---|---|
| Fitted at the factory | ||||
| Pinion | 13T | Mod 1 | 5 mm | C-72813 (opens in a new tab) |
| Spur | 52T | Mod 1 | Not applicable | C-00180-607 (opens in a new tab) |
Tooth counts are the ones in the specifications above. Pitch is given as metric module (Mod 1, Mod 0.8) or diametral pitch (32P, 48P). They are different standards and are not interchangeable, even where the numbers look close. Bore is the pinion’s hole, listed separately from the motor shaft. Linked part numbers go to the maker's or official distributor's page for that part.
How these numbers were settled
Roller: motor, ESC, servo, radio and battery are not included, so KV and cell count are the buyer's.
- Corally's roller page prints Motor Pinion 13T, Spur Gear 52T, Gear Pitch MOD 1.0, Internal Drive Ratio 3.31 and Overall Drive Ratio 13.23.
- The roller manual's exploded view (p. 19) marks the Kuron motor, Torox ESC and servo as not included but shows the 13T pinion C-72813 without that mark, and its speed gear chart (p. 10) gives 13.23 for 13T on the 52T spur with 130mm tires.
- The tire is 130mm on both the roller page (Tire Dia. 130mm) and the manual chart ('Tyres Ø130mm').
- Corally's page calls the scale XL 6S; Team Corally USA lists the roller in its 1/8 scale range.
- The roller page repeats the RTR's 4450g while Team Corally USA gives 3770g, and the two battery bay sizes differ (161x51x49mm against 160x50.5x63mm), so those are left blank.
- The ready-to-run version is C-00288.
Documents
- ManualInstruction manual, Asuga XLR roller C-00488 (Team Corally USA PDF) (opens in a new tab)
- Gearing chartSpeed gear chart in the Asuga XLR roller manual (Team Corally USA PDF) (opens in a new tab)Speed gear chart, p. 10
- Exploded viewExploded view, Asuga XLR (Team Corally USA PDF) (opens in a new tab)
- Parts listParts list, Asuga XLR (Team Corally USA PDF) (opens in a new tab)
Sources
- team-corally-asuga-xlr-6s-r…corally.com (opens in a new tab)
- Manual (PDF)cdn.shopify.com (opens in a new tab)
- cor00488-b-asuga-xlr-6s-rol…corallyus.com (opens in a new tab)
- 1-8-scalecorallyus.com (opens in a new tab)
- spares-asuga-xlrcorally.com (opens in a new tab)
- spares-asuga-xlrcorally.com (opens in a new tab)
- team-corally-spur-gear-52t-…corally.com (opens in a new tab)
- team-corally-m10-pinion-sho…corally.com (opens in a new tab)
Every figure on this page traces to one of these. Where they disagreed, the note above says which was used and why.
